Connector Terminal Identification
>>
Clutch Switch
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Clutch Switch

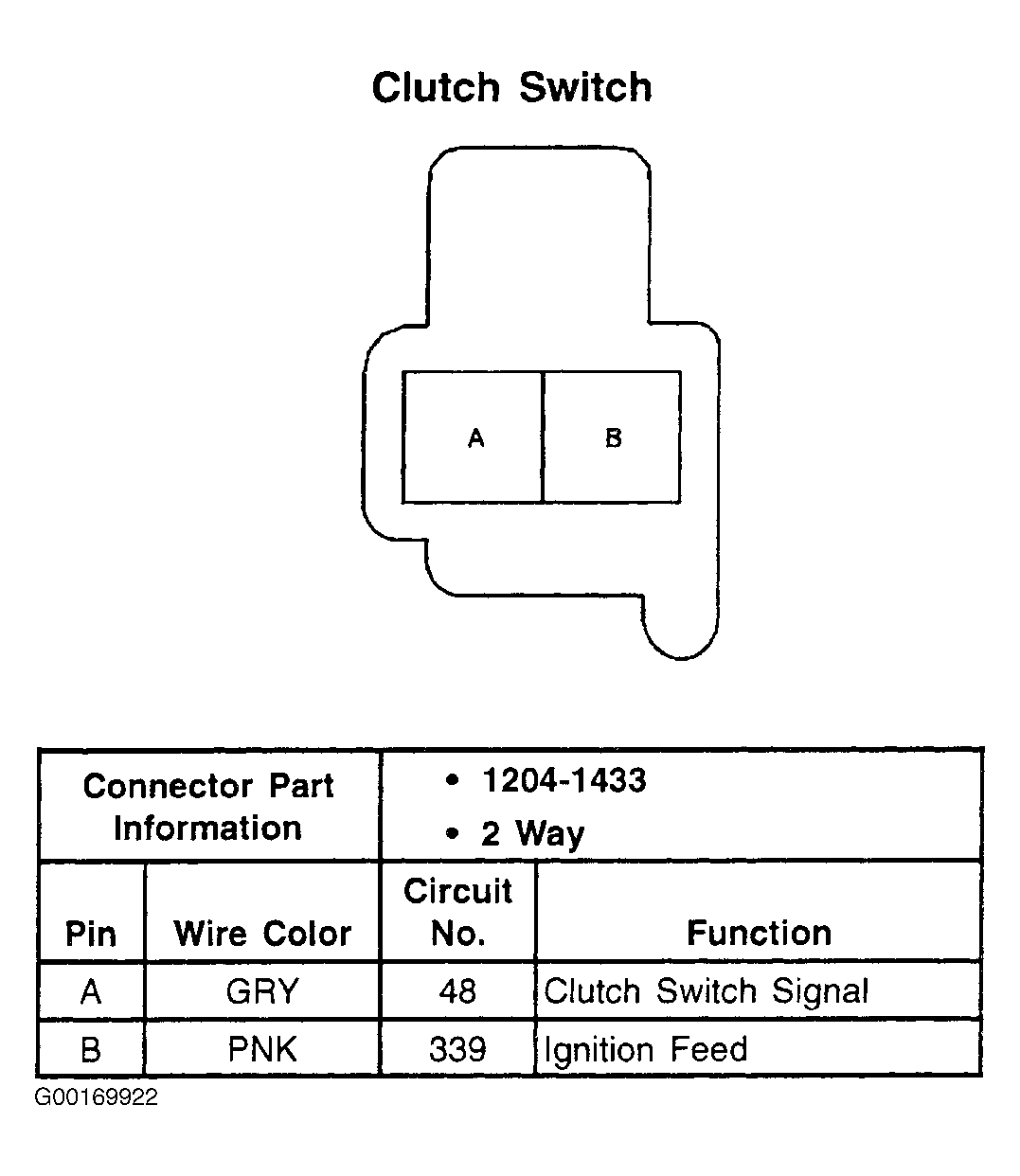

Fig 1: Clutch Switch - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
