Windshield Wiper Motor

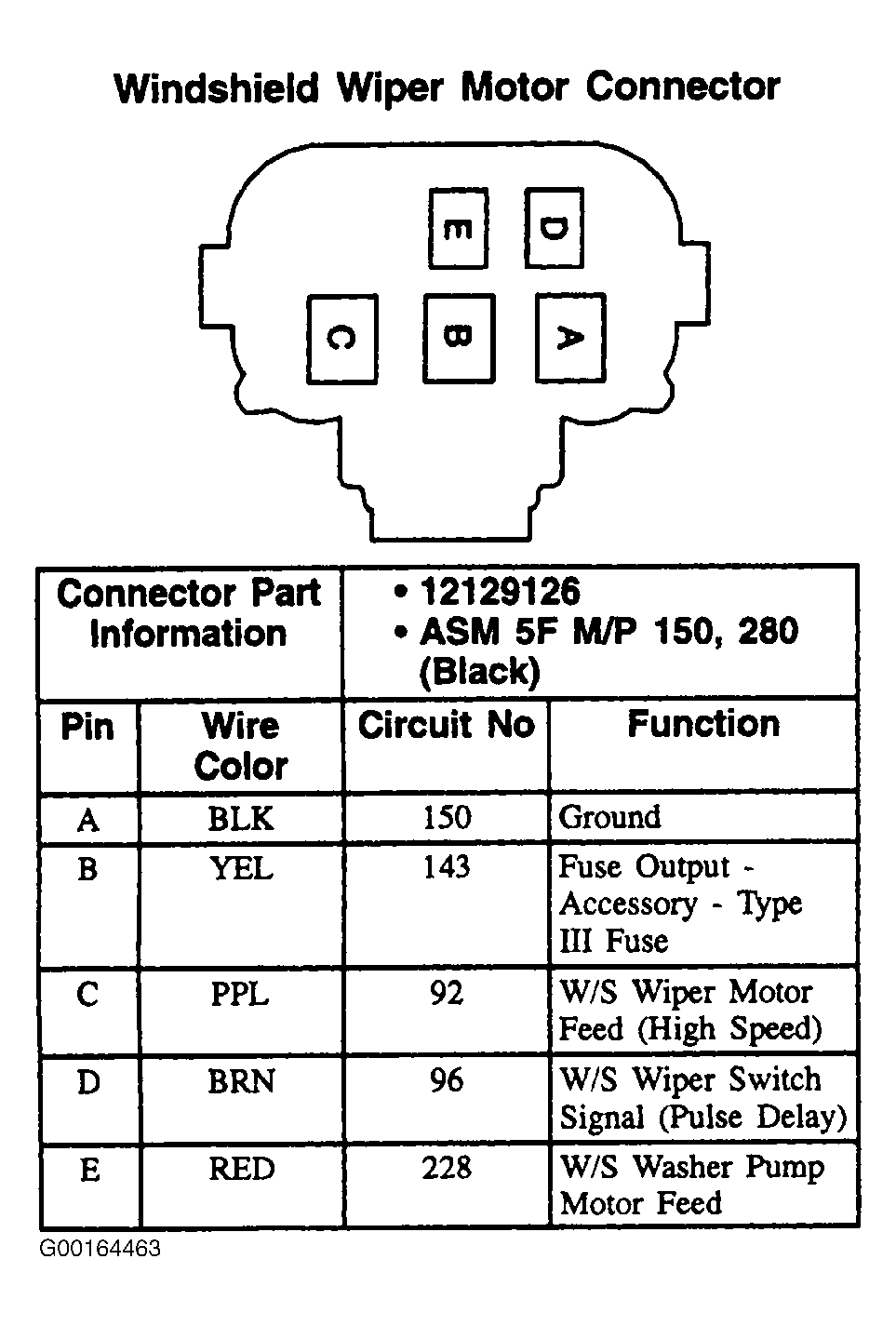

Fig 1: Windshield Wiper Motor - 5-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
