Connector Terminal Identification (G Series)
>>
Wheel Speed Sensor
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Wheel Speed Sensor

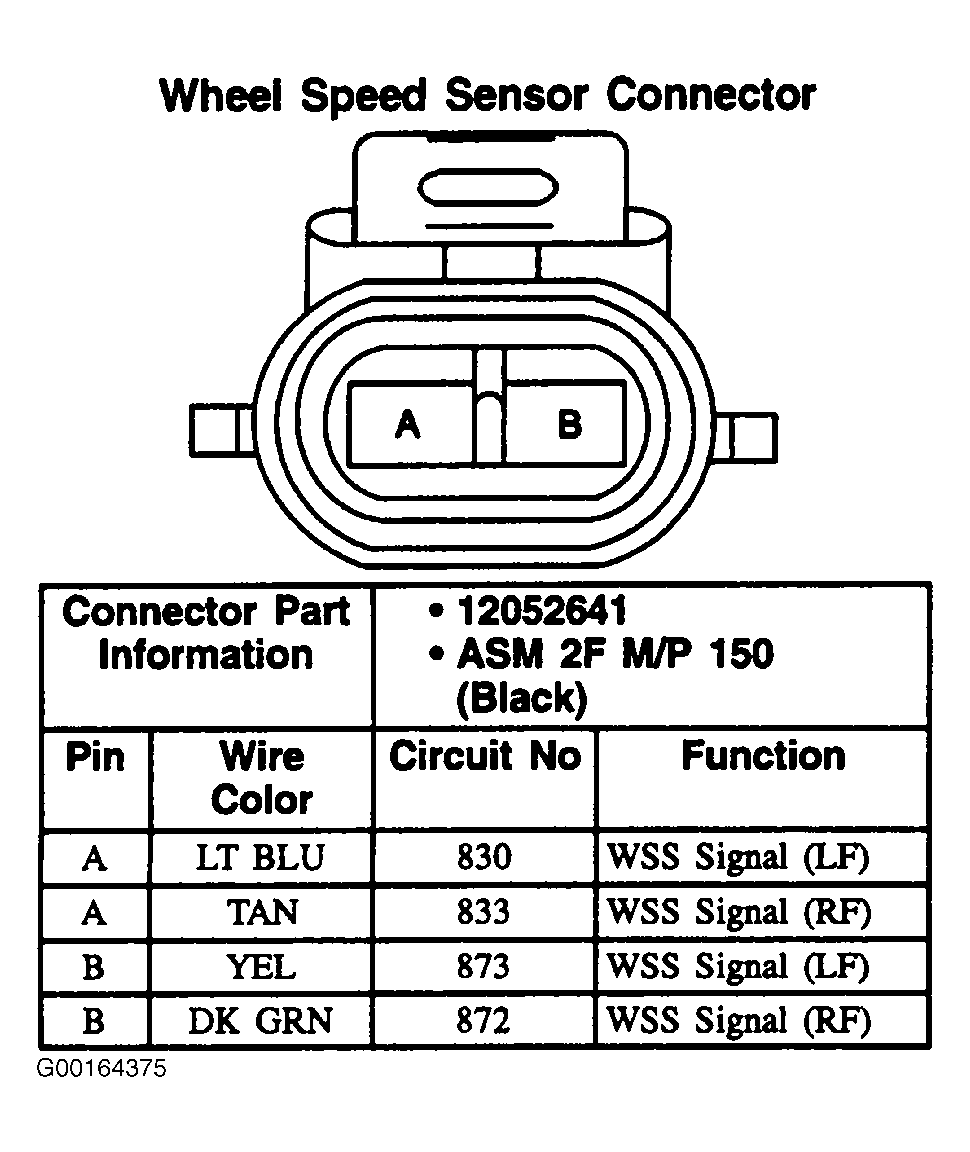

Fig 1: Wheel Speed Sensor - 2-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
