Connector Terminal Identification (G Series)
>>
UPFITTER Provisions Relay
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
UPFITTER Provisions Relay

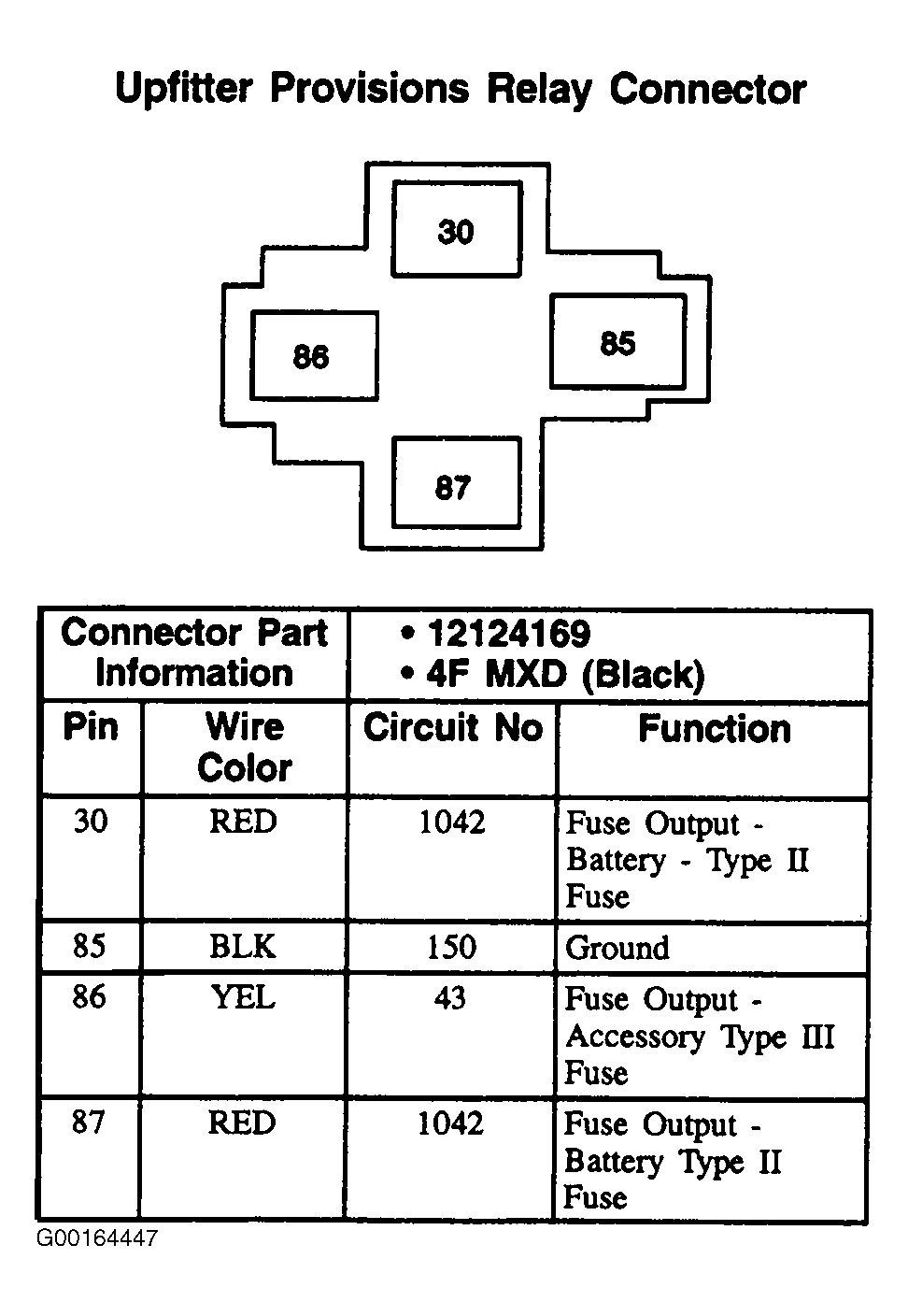

Fig 1: Upfitter Provisions Relay - 4-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
