Low Engine Coolant Level Indicator Module (Diesel)

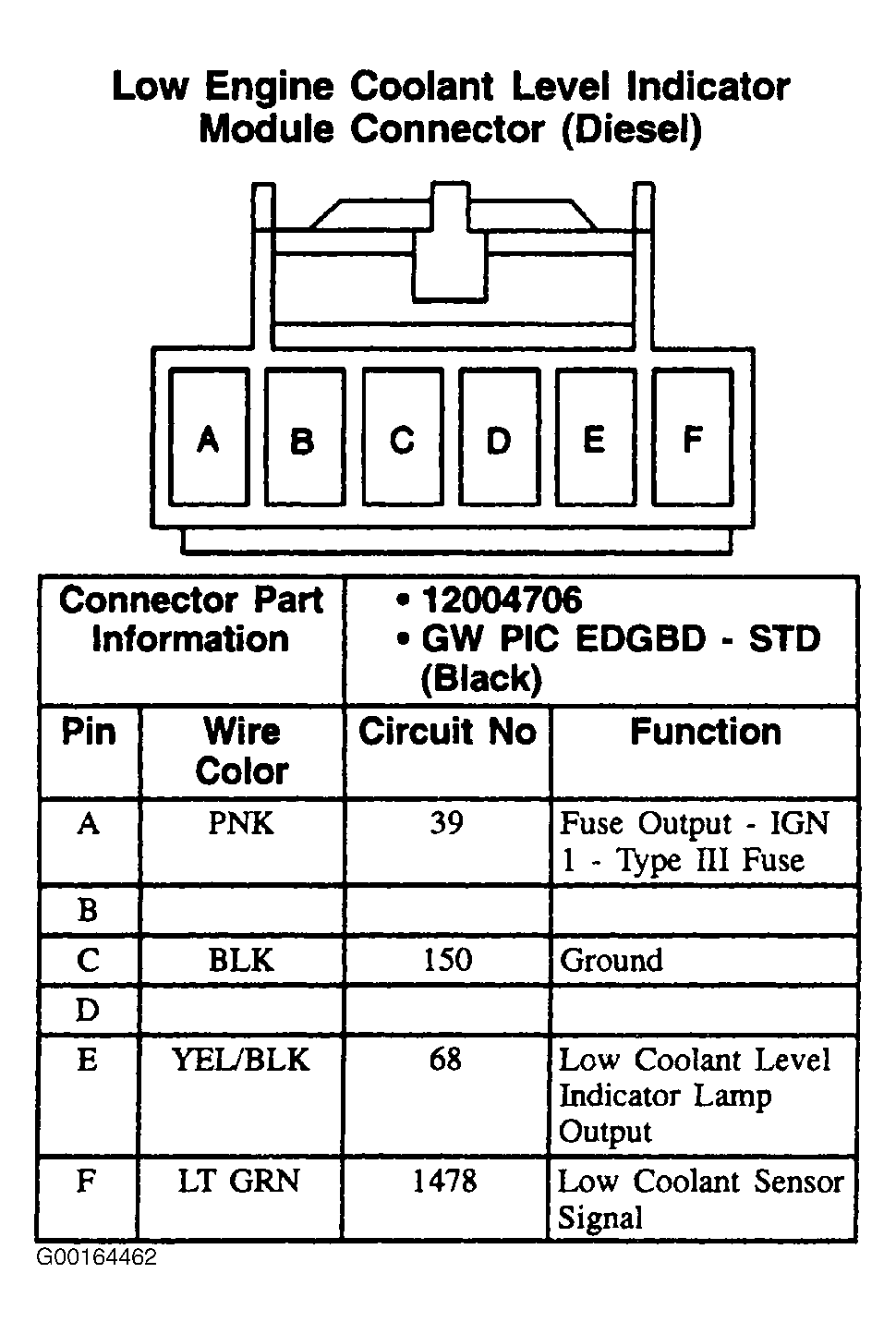

Fig 1: Low Engine Coolant Level Indicator Module (Diesel) - 6-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
