Cruise Control Module (Gas)

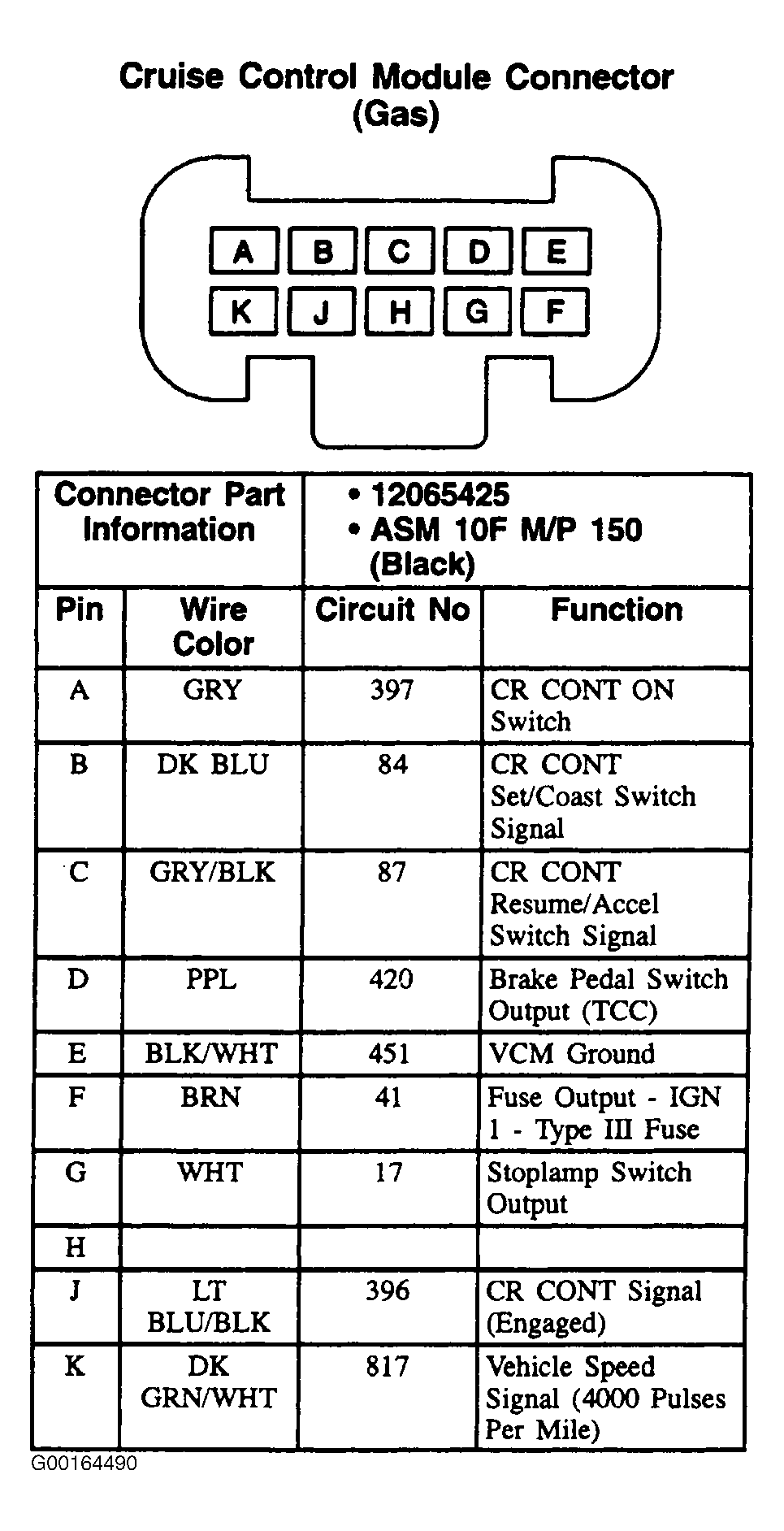

Fig 1: Cruise Control Module (Gas) - 10-Pin Connector, Black
G00164490Courtesy of GENERAL MOTORS CORP.
