A/C Compressor Low Pressure Cutoff Switch

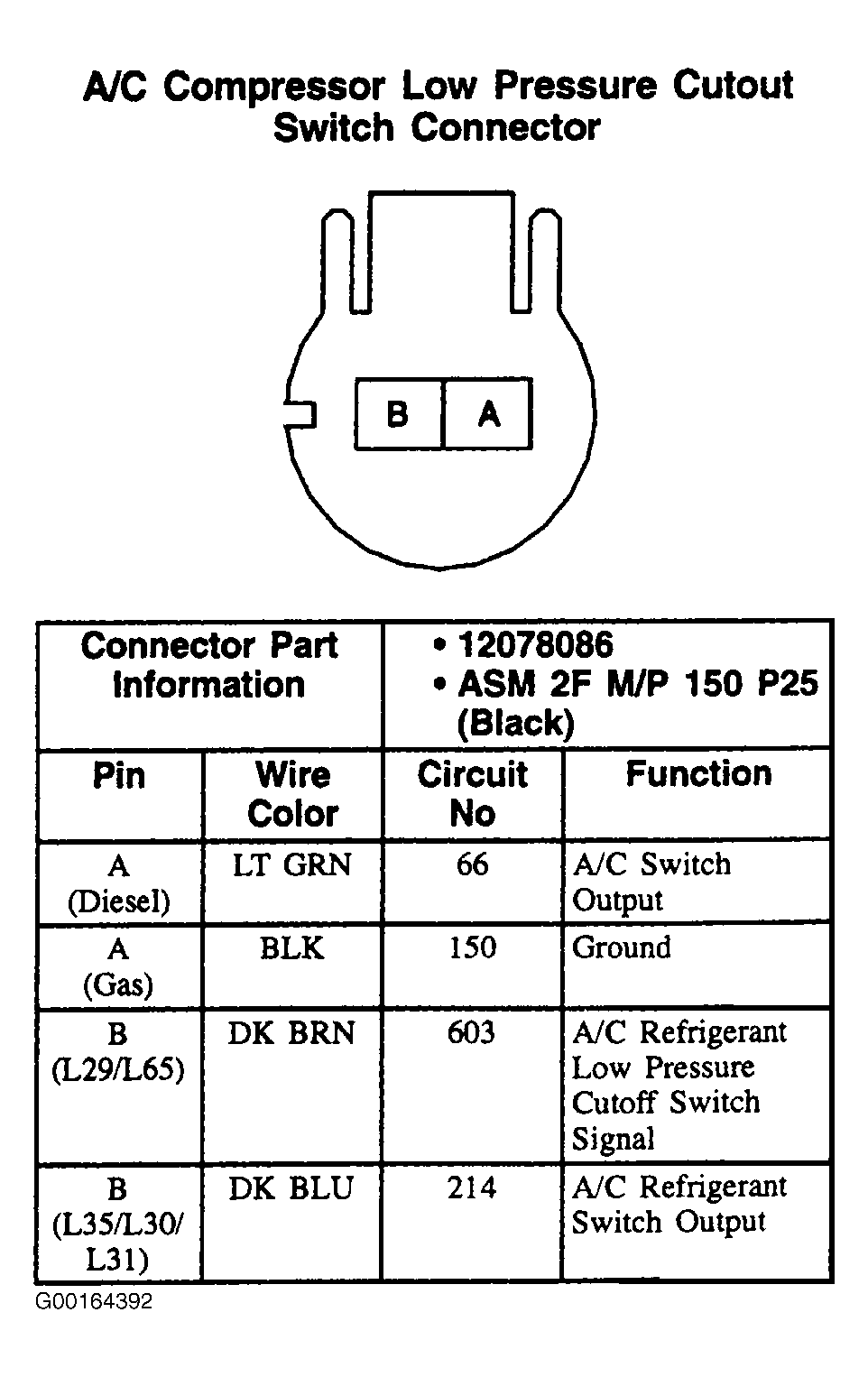

Fig 1: A/C Compressor Low Pressure Cutoff Switch - 2-Pin Connector, Black
G00164392Courtesy of GENERAL MOTORS CORP.
