Boost Pressure Sensor (Diesel)

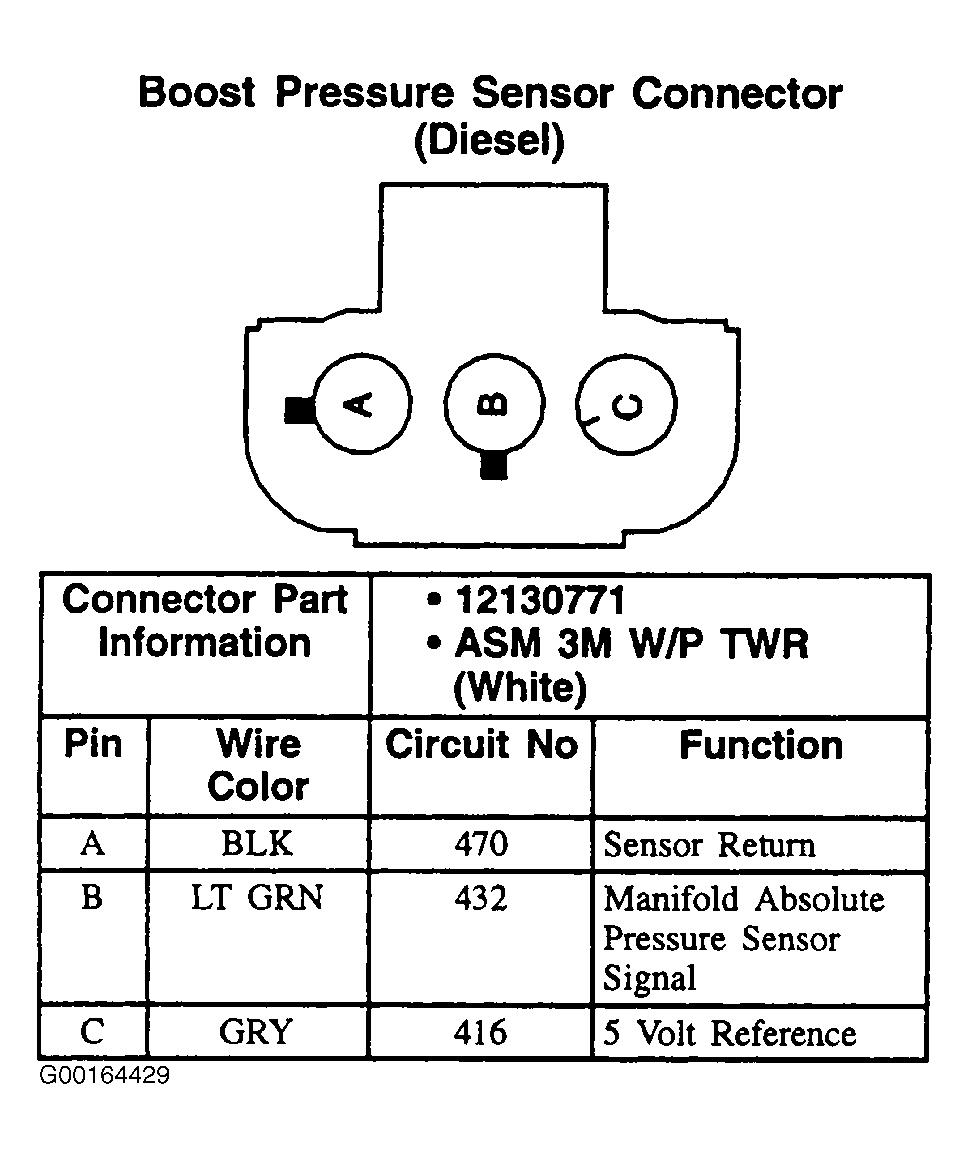

Fig 1: Boost Pressure Sensor (Diesel) - 3-Pin Connector, White
G00164429Courtesy of GENERAL MOTORS CORP.
