DTC P1406 - EGR Valve Pintle Position Circuit: Notes

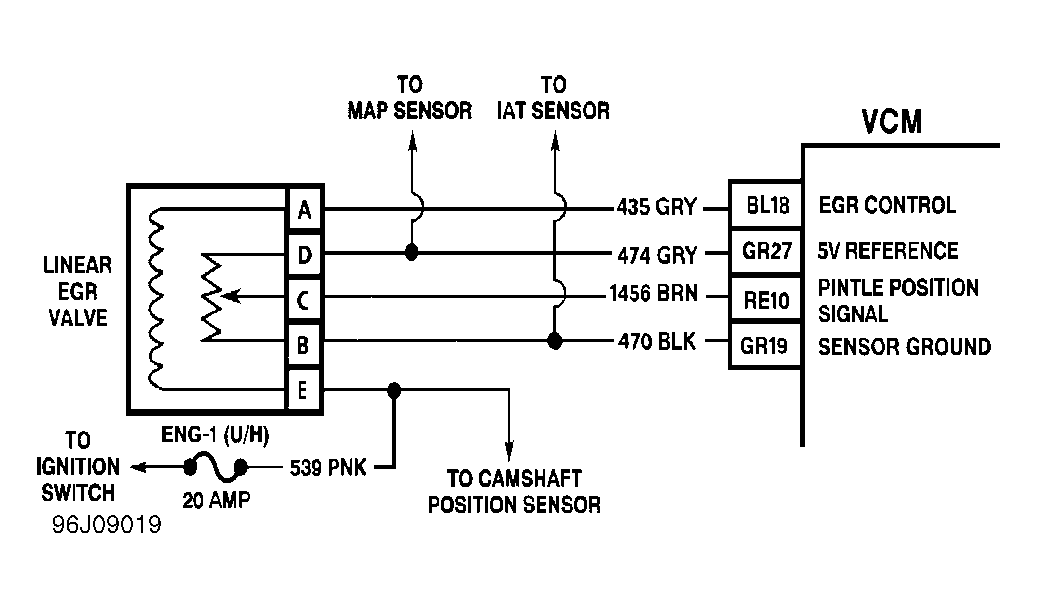

NOTE: For circuit reference, see Figure , DTC P0401 schematic.
