Diagnostic Aids

Check MAP sensor vacuum source for leaks, restrictions or faulty connections.

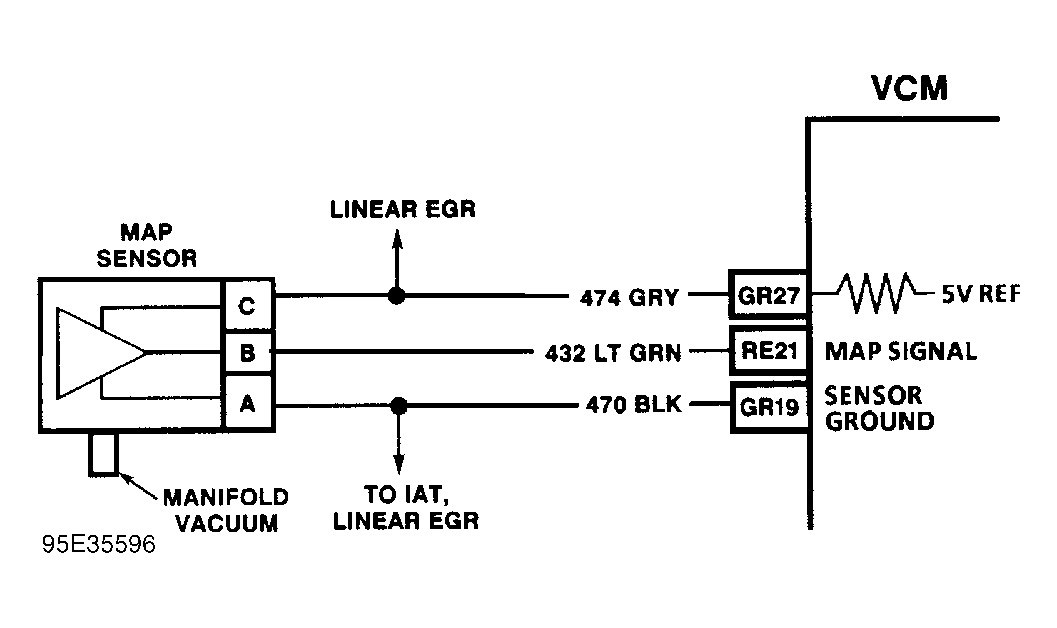

Fig 1: DTC P0106 Schematic
G95E35596
