Daytime Running Lamp Control Unit

Daytime Running Lamps (DRL) Module: C1 And C2:

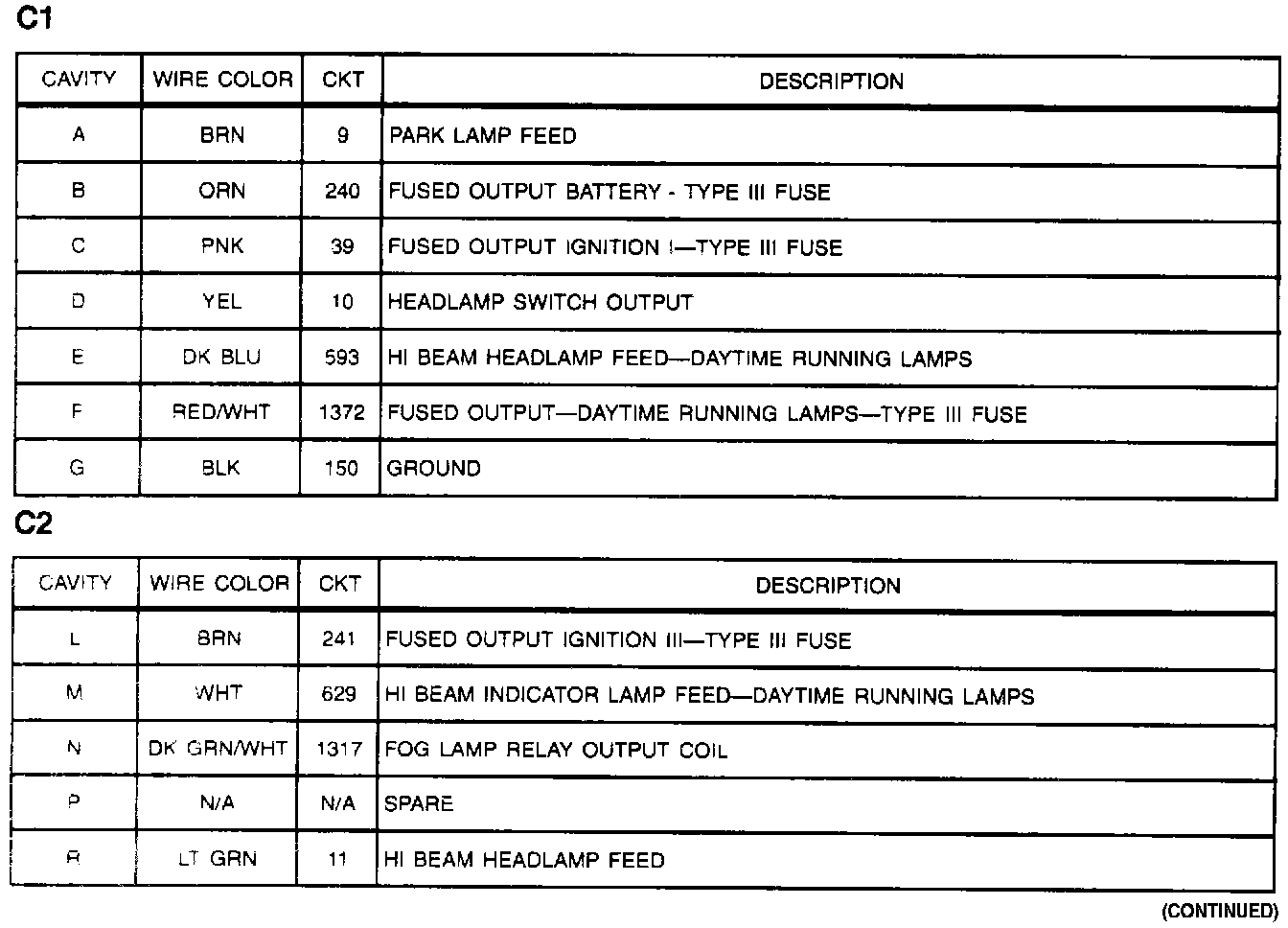

Daytime Running Lamps (DRL) Module: C1 And C2 (Part 1 Of 2):



Daytime Running Lamps (DRL) Module: C1 And C2 (Part 2 Of 2):
