Astro Van L AWD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Sensors
>>
Discriminating Sensor, Front End
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

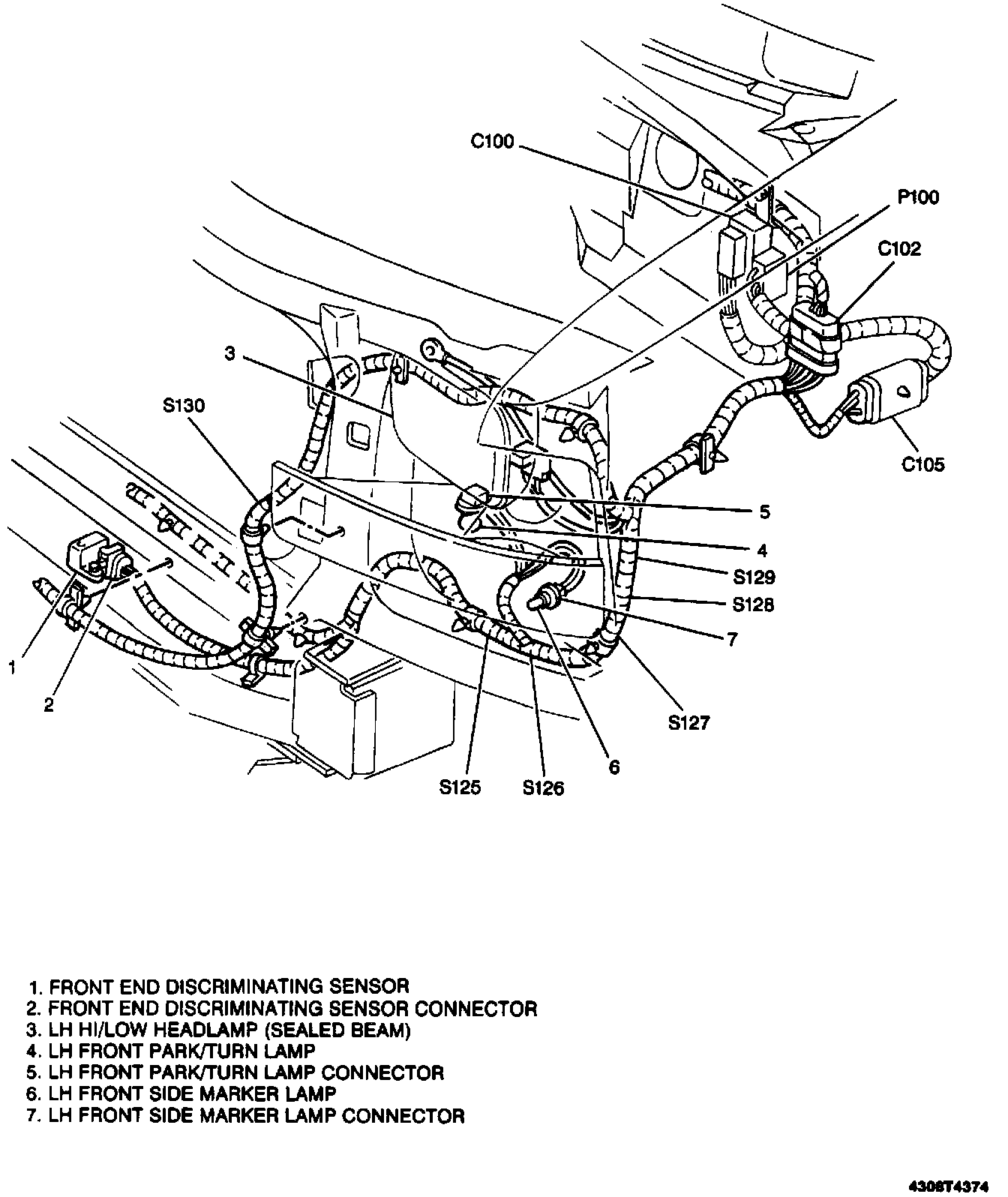

Discriminating Sensor, Front End
Forward Lamps Harness, LH Side:
