Abs/TCS Functional Check

WARNING: This page is about a different variant/trim than selected.

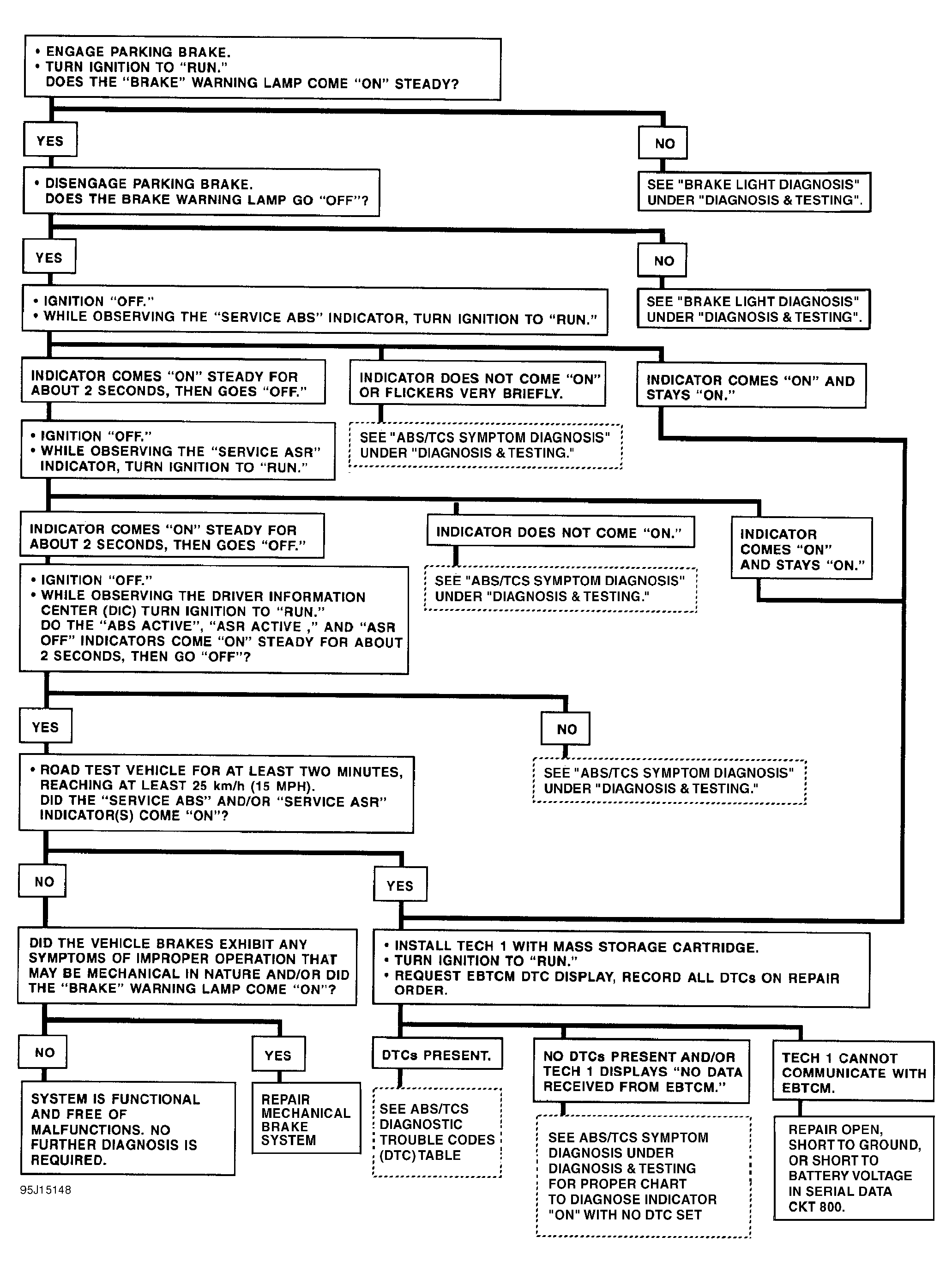

Fig 1: ABS/TCS Functional Check Flow Chart
G95J15148Courtesy of GENERAL MOTORS CORP.
