Test Description

NOTE: Test numbers refer to numbers on diagnostic chart.
  1. Checks mechanical state of TCC when PCM commands TCC solenoid off. TCC slip speed should increase.

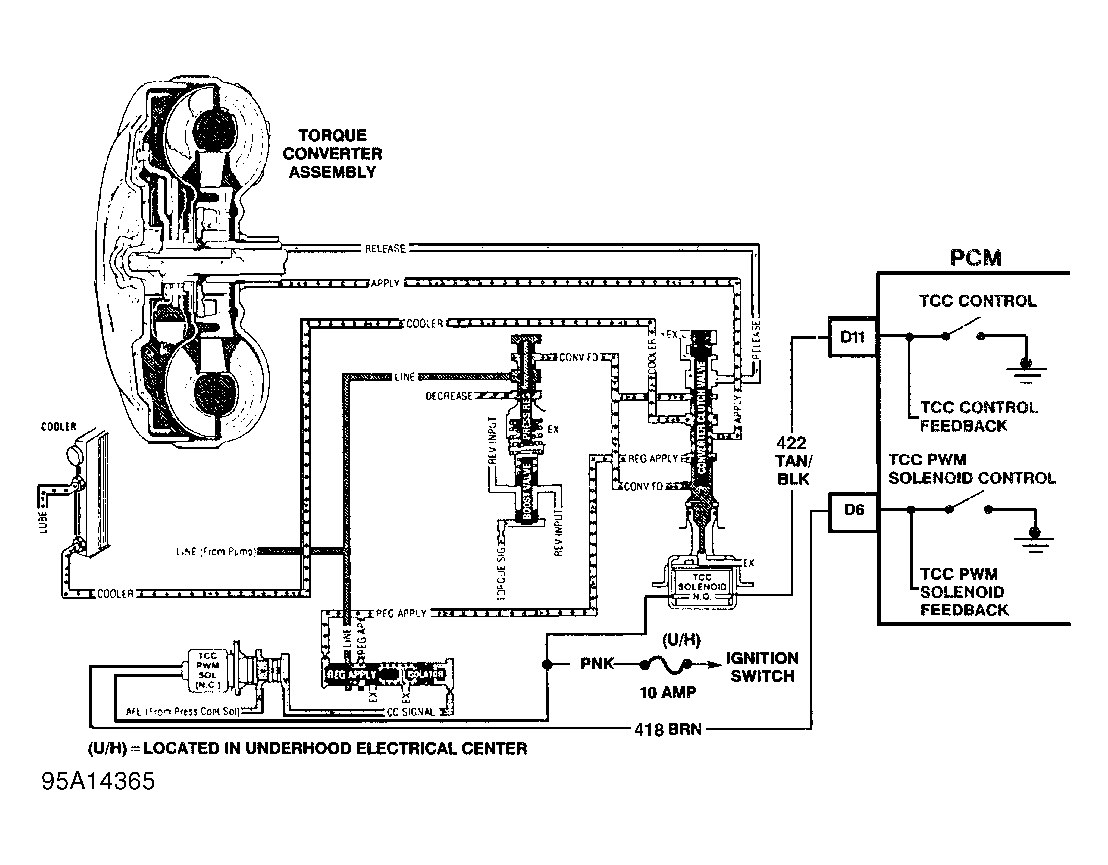

Fig 1: Code 85 Schematic (Corvette) TCC Stuck On
G95A14365

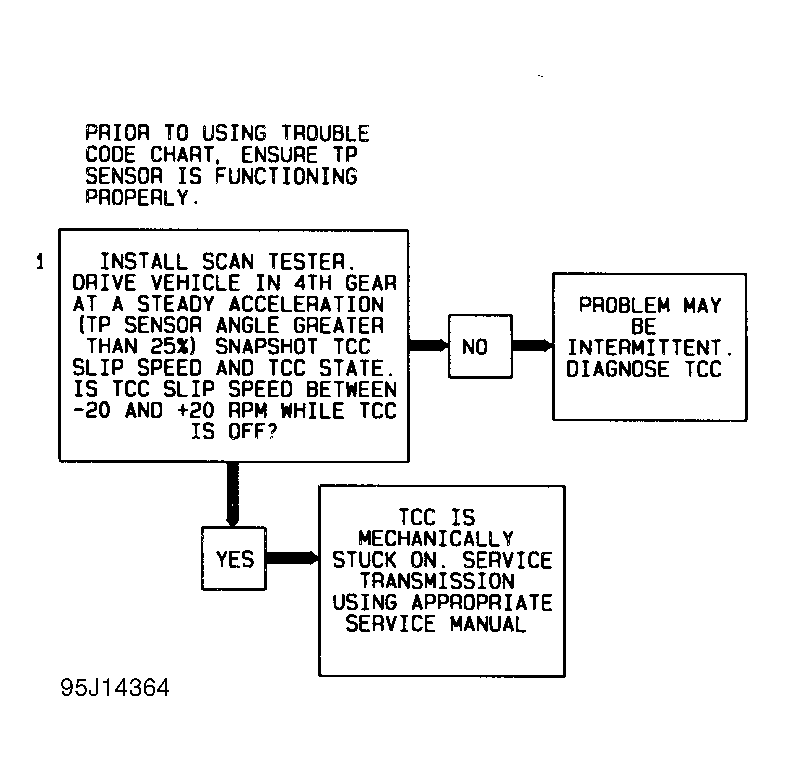

Fig 2: Code 85 Diagnostic Flow Chart (Corvette) TCC Stuck On
G95J14364
