Fuse

Front View Of Fuse Block:

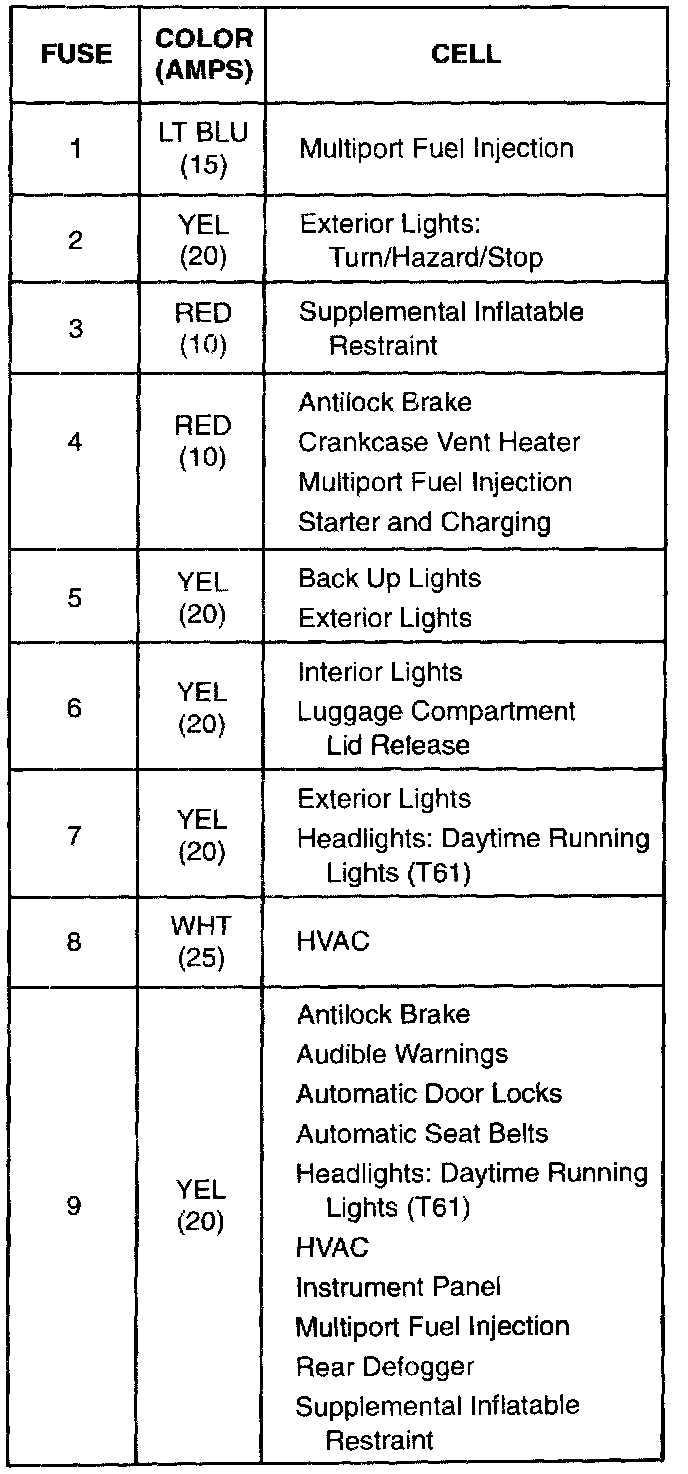

Fuse, Color, Rating And Cell Details:

Fuse, Color, Rating And Cell Details:
