Air Temperature Sensor ( Ambient / Intake ): Locations

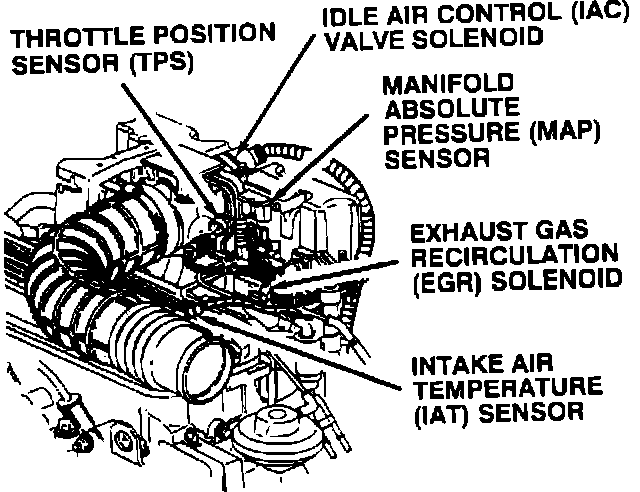

Top Front Of Engine:




(2.2L Shown, Others similar)

Intake Air Temperature Sensor is located LH front of Engine Compartment, on Air Cleaner.
