Transmission Temperature Sensor/Switch: Locations

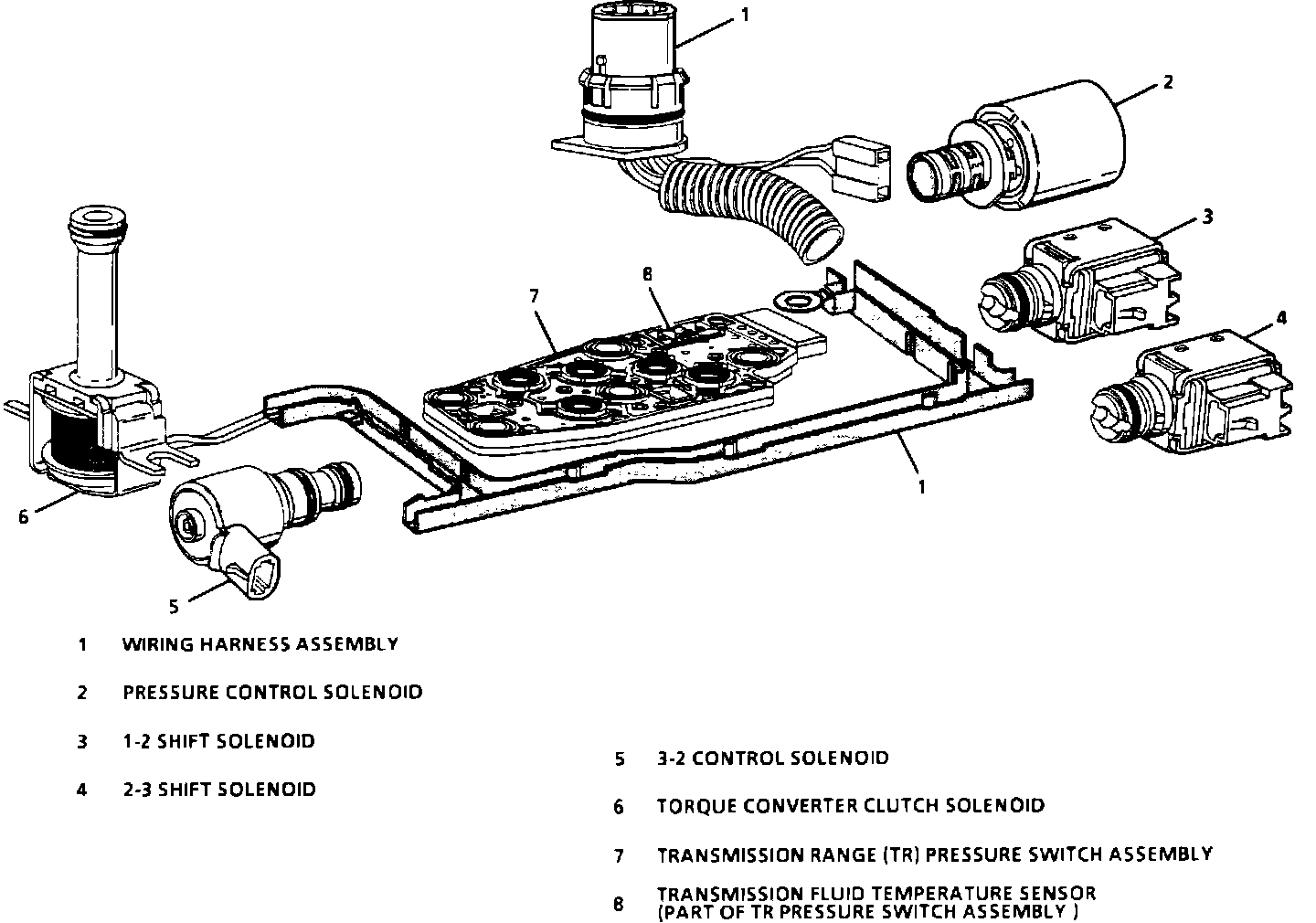

Transmission Electrical Components:






The transmission fluid temperature (TFT) sensor is part of the transmission range fluid pressure switch assembly. The assembly is attached to the valve body inside the transmission.
