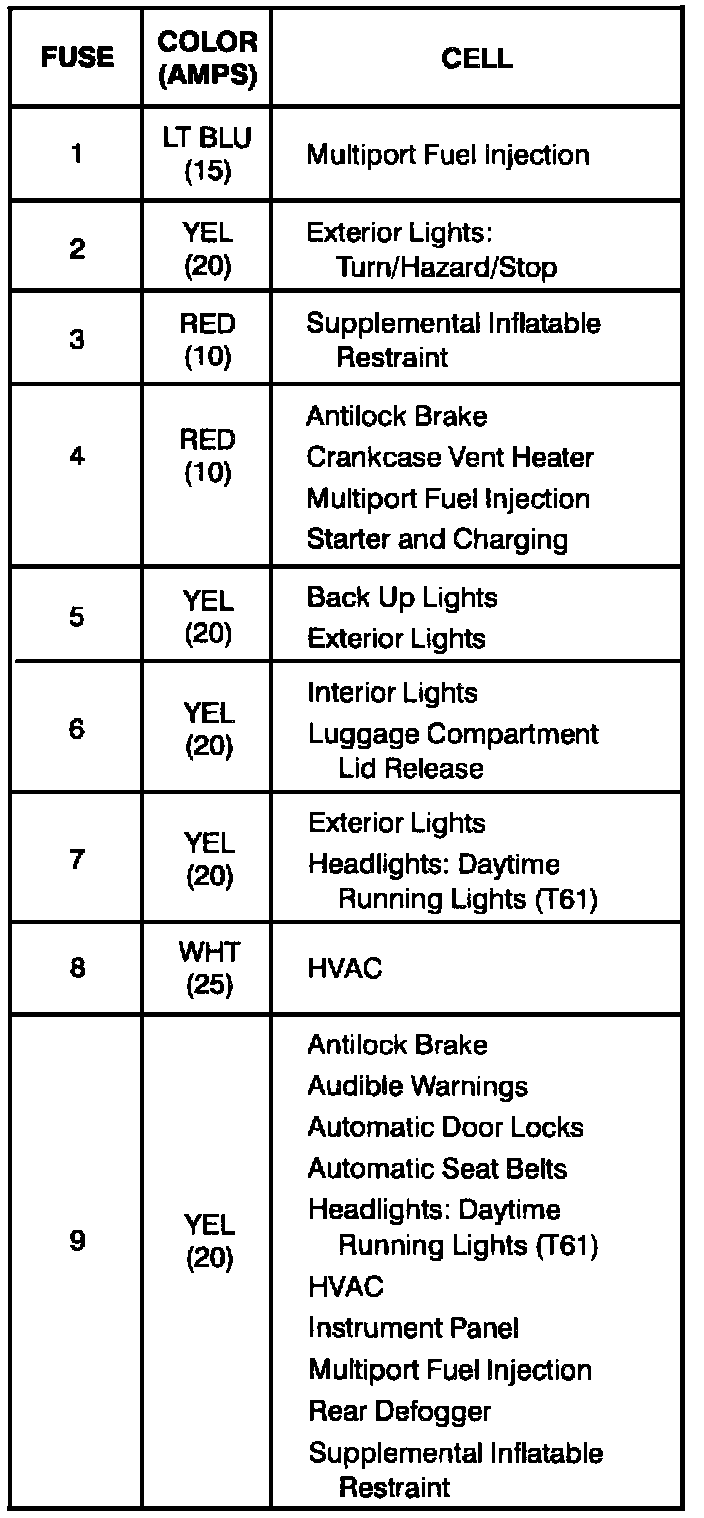

Front View of Fuse Block (Description)

Fuse Block Details: Description:

Fuse Block Details: Description:
