Diagnostic Aids

Check all connections, especially those at the transmission pass-thru connector. If code is intermittent, see INTERMITTENTS in TESTS W/O CODES article in this section.

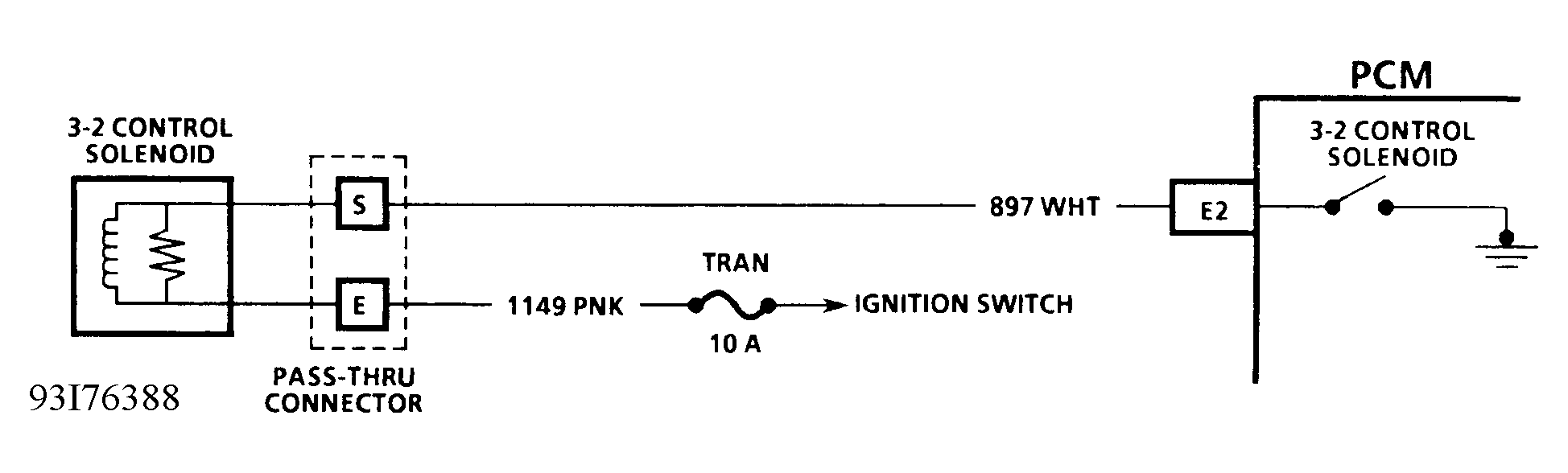

Fig 1: Schematic, 3-2 Control Solenoid
G93I76388Courtesy of GENERAL MOTORS CORP.

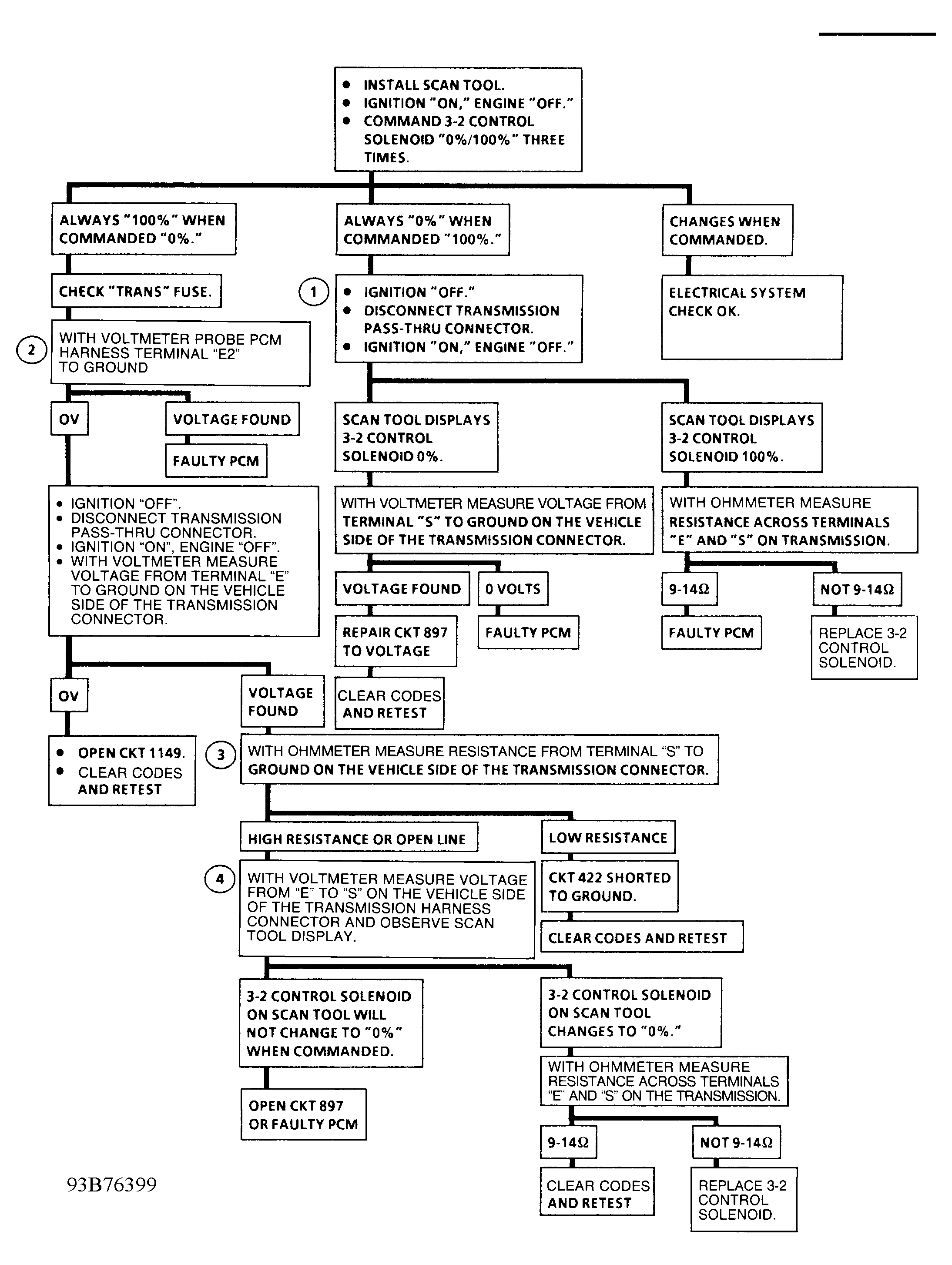

Fig 2: Flowchart, 3-2 Control Solenoid
G93B76399Courtesy of GENERAL MOTORS CORP.
