Wiring Diagrams

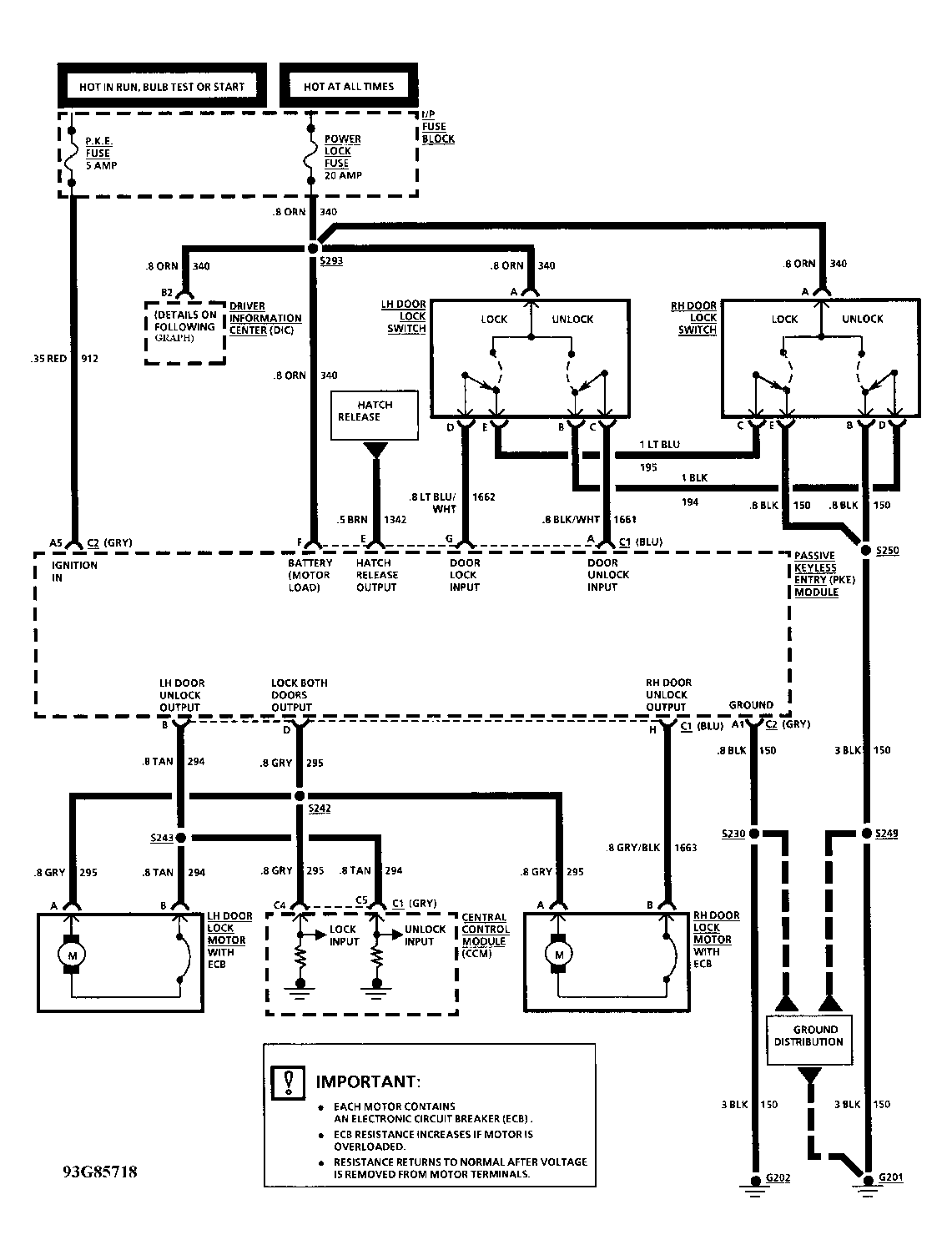

Fig 1: Keyless Entry/Power Door Locks Wiring Diagram (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

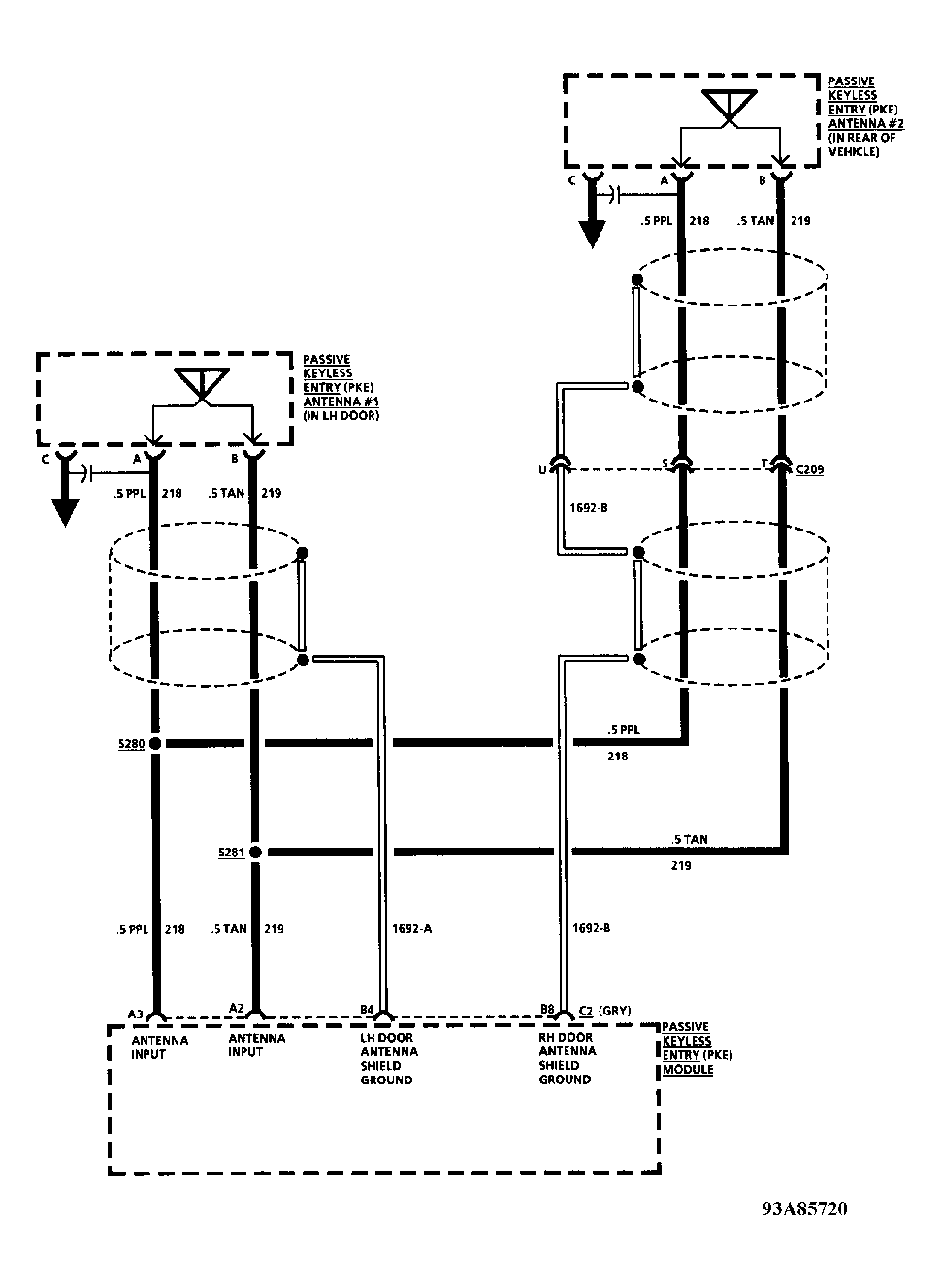

Fig 2: Keyless Entry/Power Door Locks Wiring Diagram (2 Of 4

Courtesy of GENERAL MOTORS CORP.

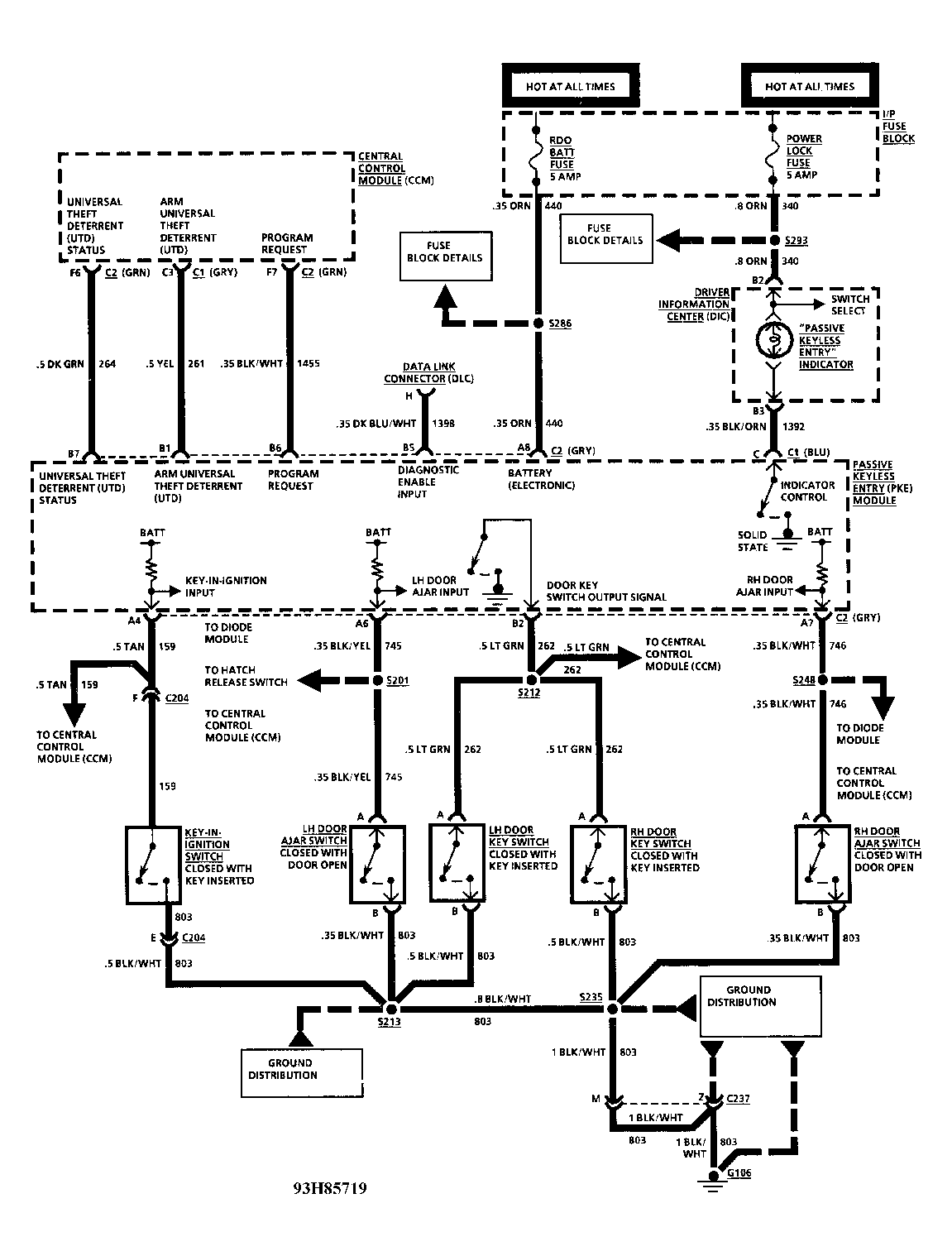

Fig 3: Keyless Entry/Power Door Locks Wiring Diagram (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Keyless Entry/Power Door Locks Wiring Diagram (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
