Brake Pressure Modulator

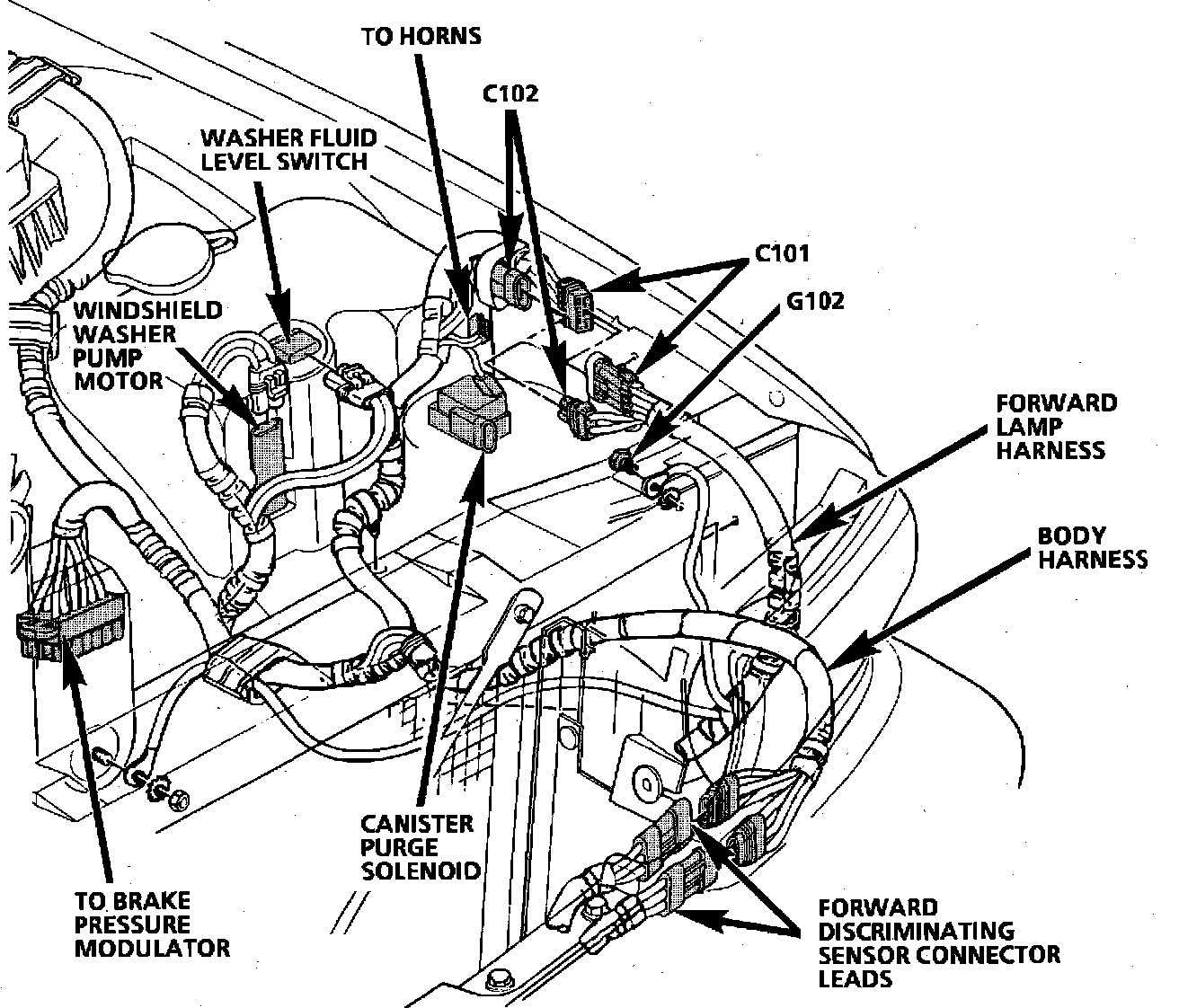

Component Location View. LH Forward Engine Compartment:




LH Engine Compartment, left of Generator
