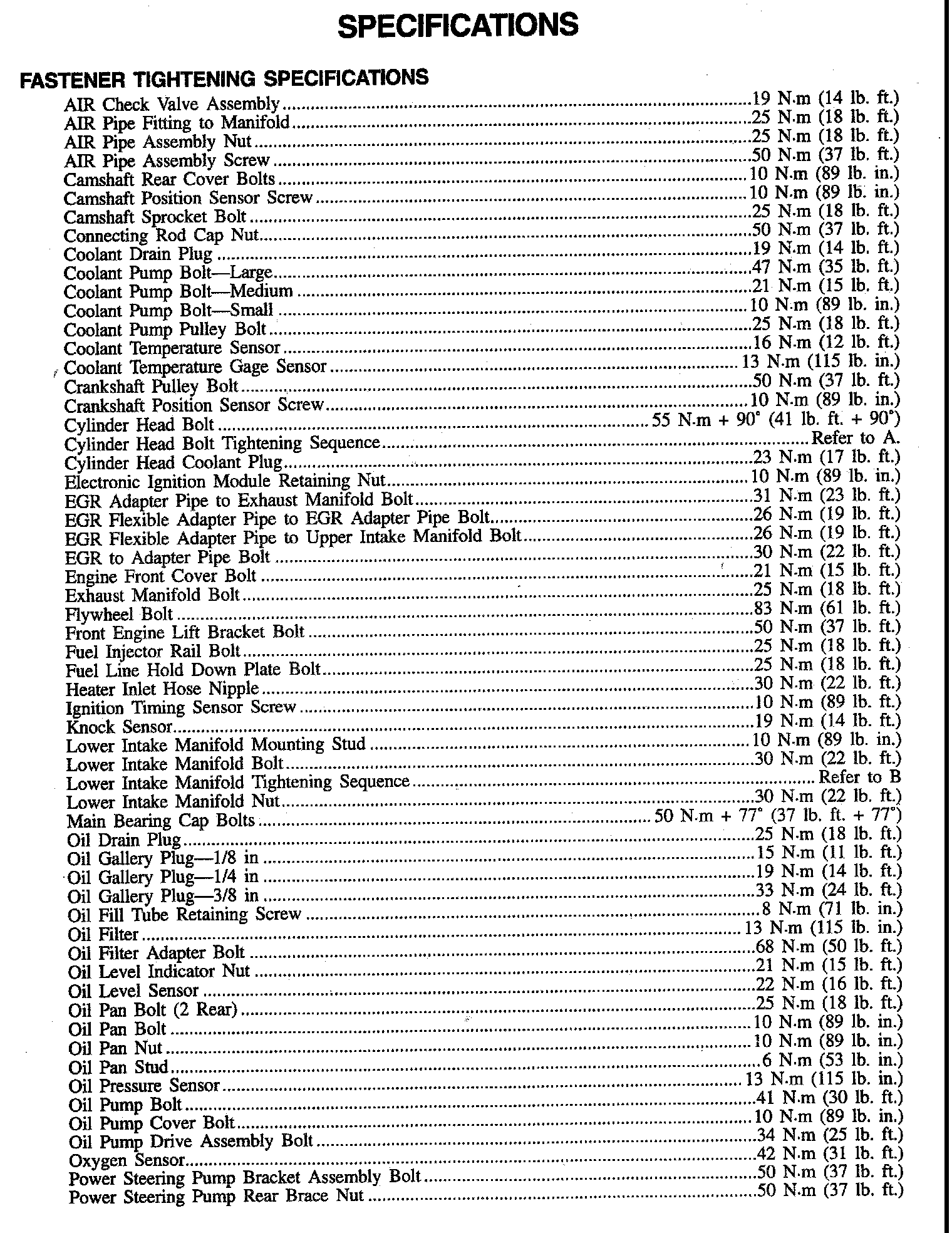

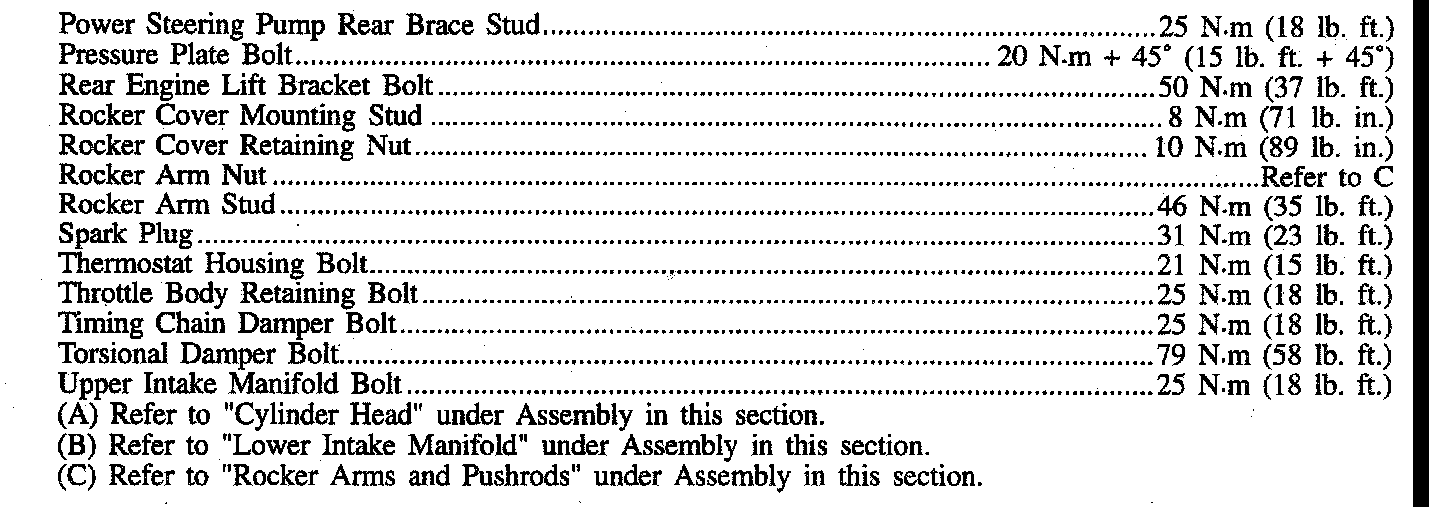

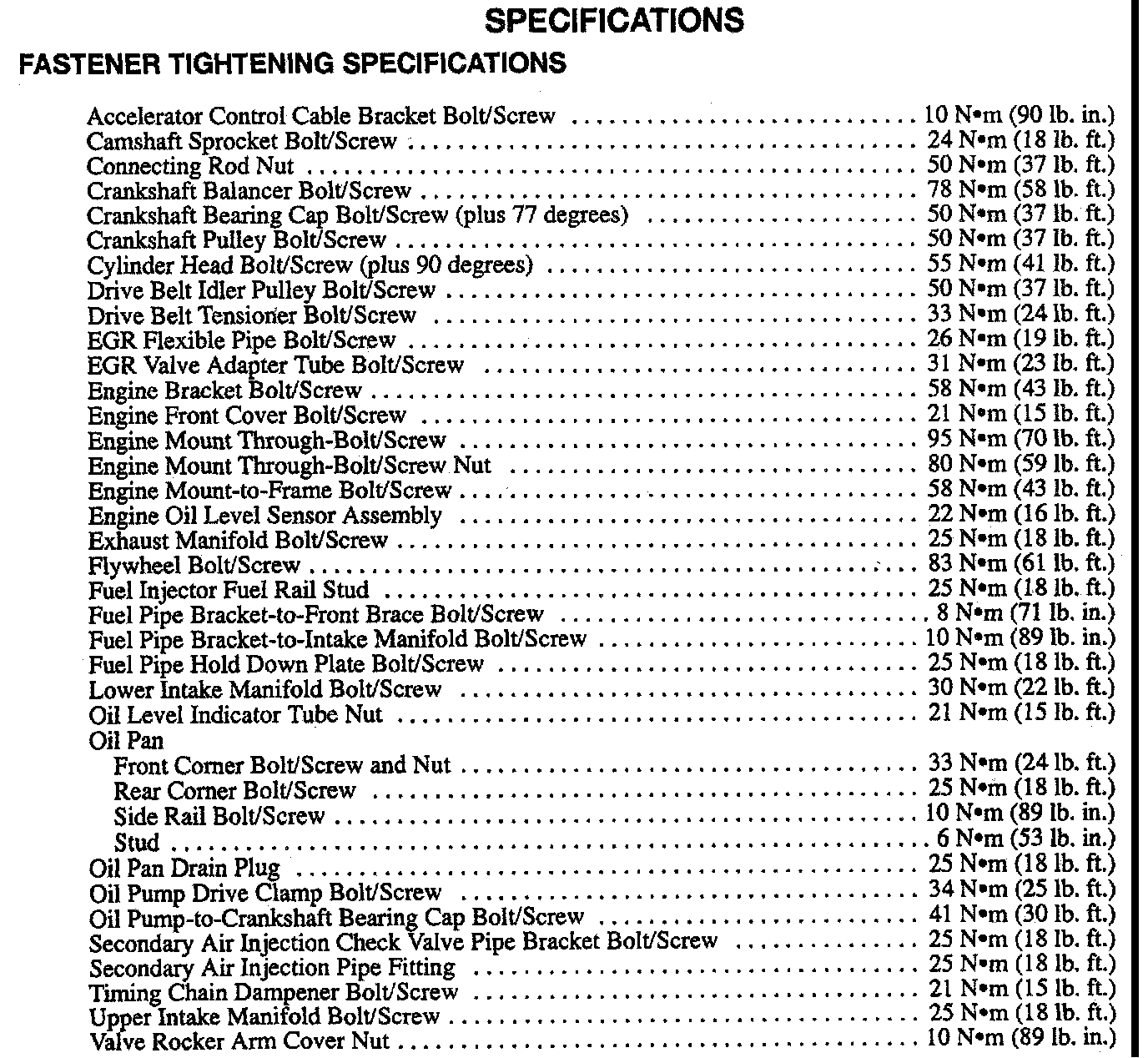

Engine Specifications

Lower Intake Manifold Tightening Sequence:





Cylinder Head Tightening Sequence:
