Power Window Switch
Window Switch Connector Face:

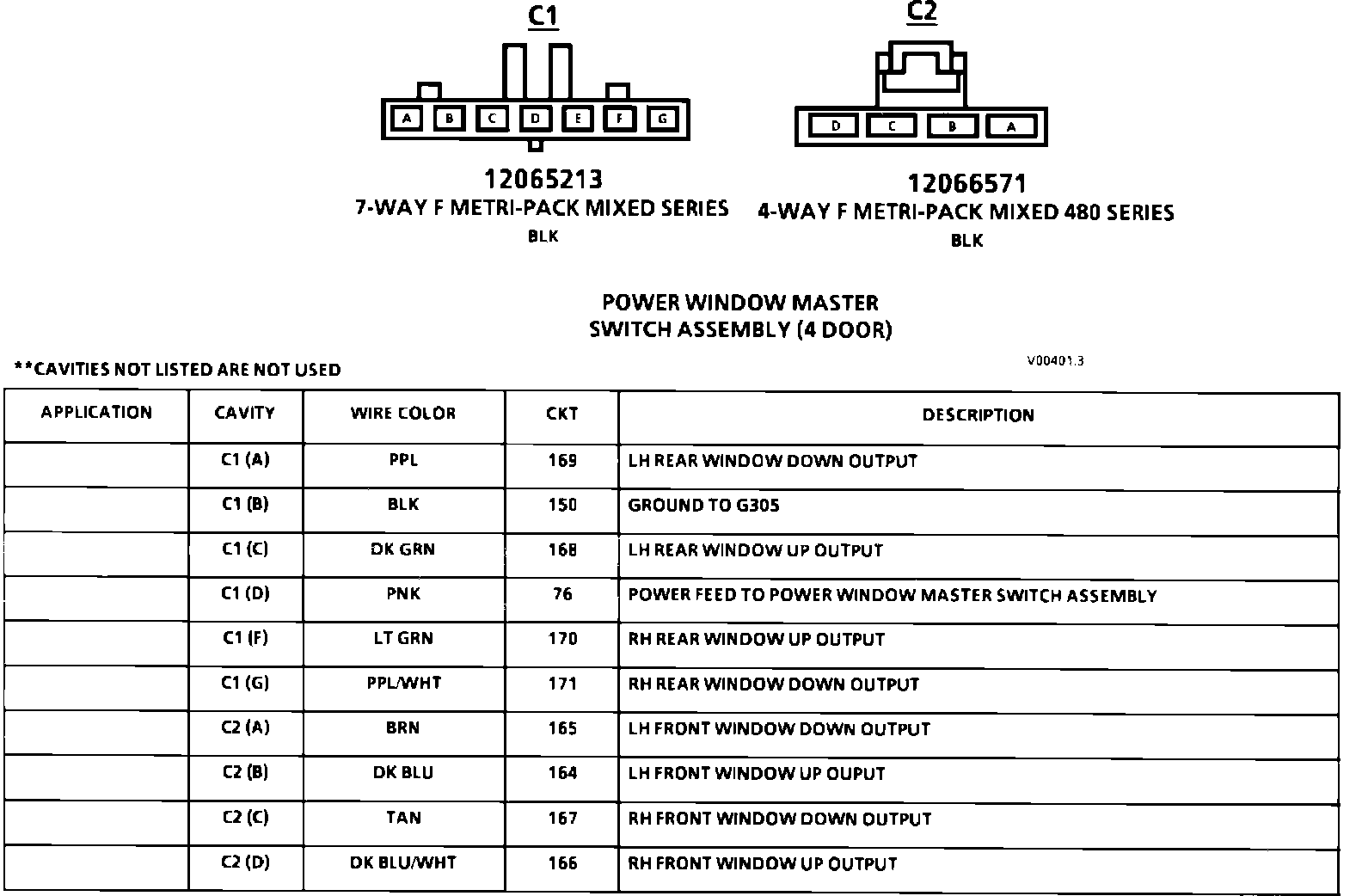

Power Window Master Switch Assembly Connector Face:
