Power Steering Pressure Switch: Locations

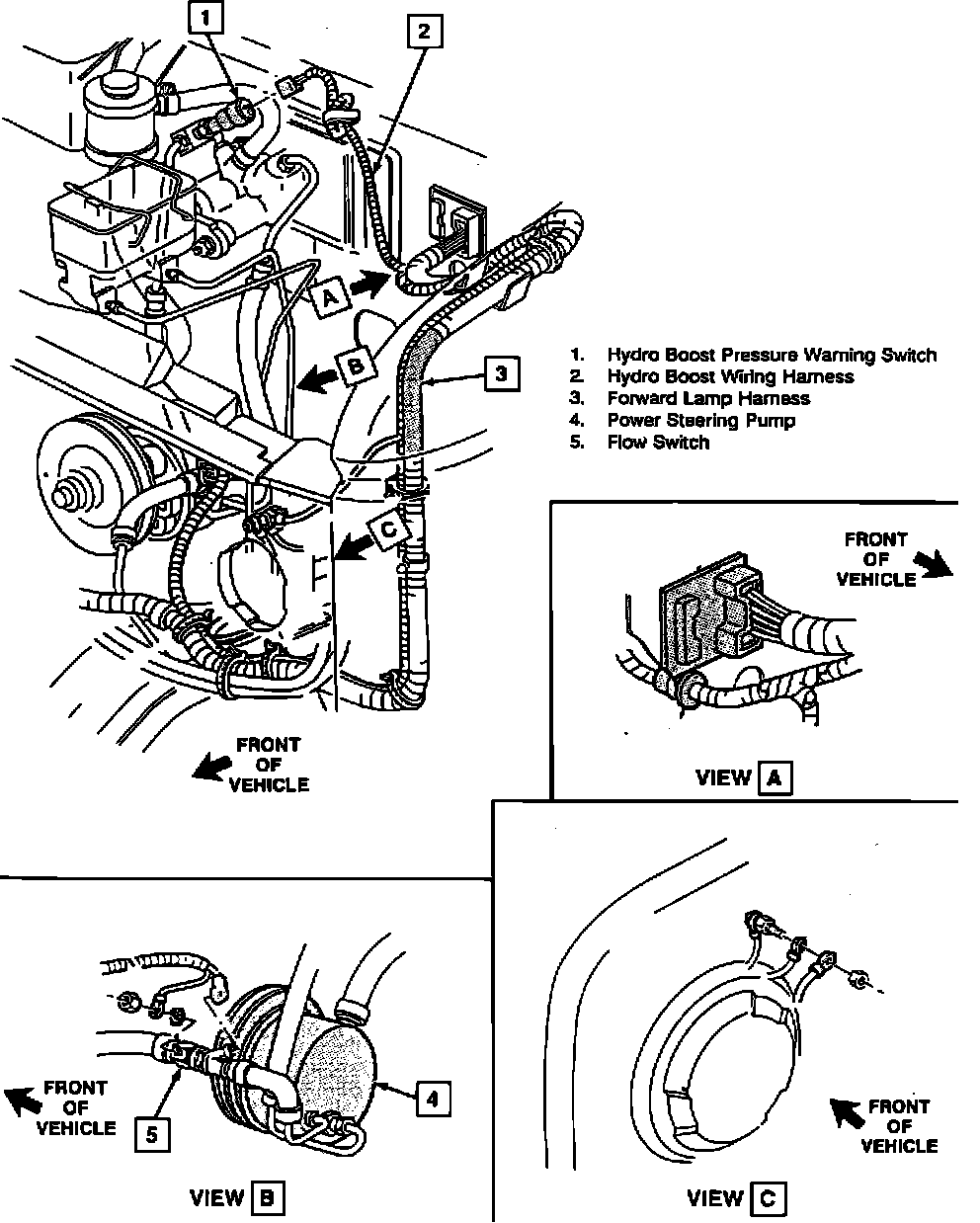

Hydro-Boost System Components:




At Power Steering Pump

Applicable to: G Series w/7.4L/V8-454

Hydro-Boost Brake System Components:




At Power Steering Pump

Applicable to: G Series
