Connector Identification

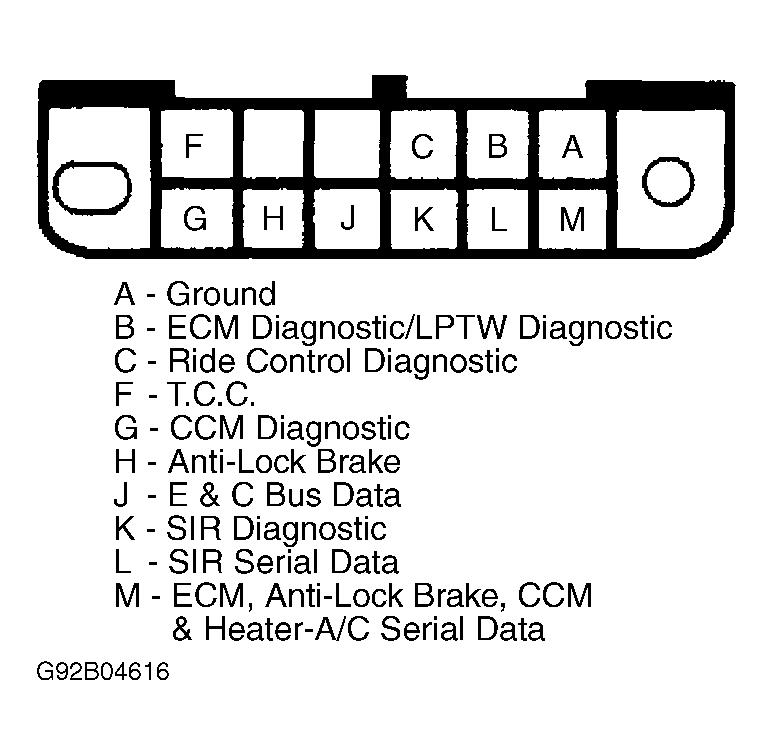

Fig 1: Identifying DLC Terminals
G92B04616Courtesy of GENERAL MOTORS CORP.

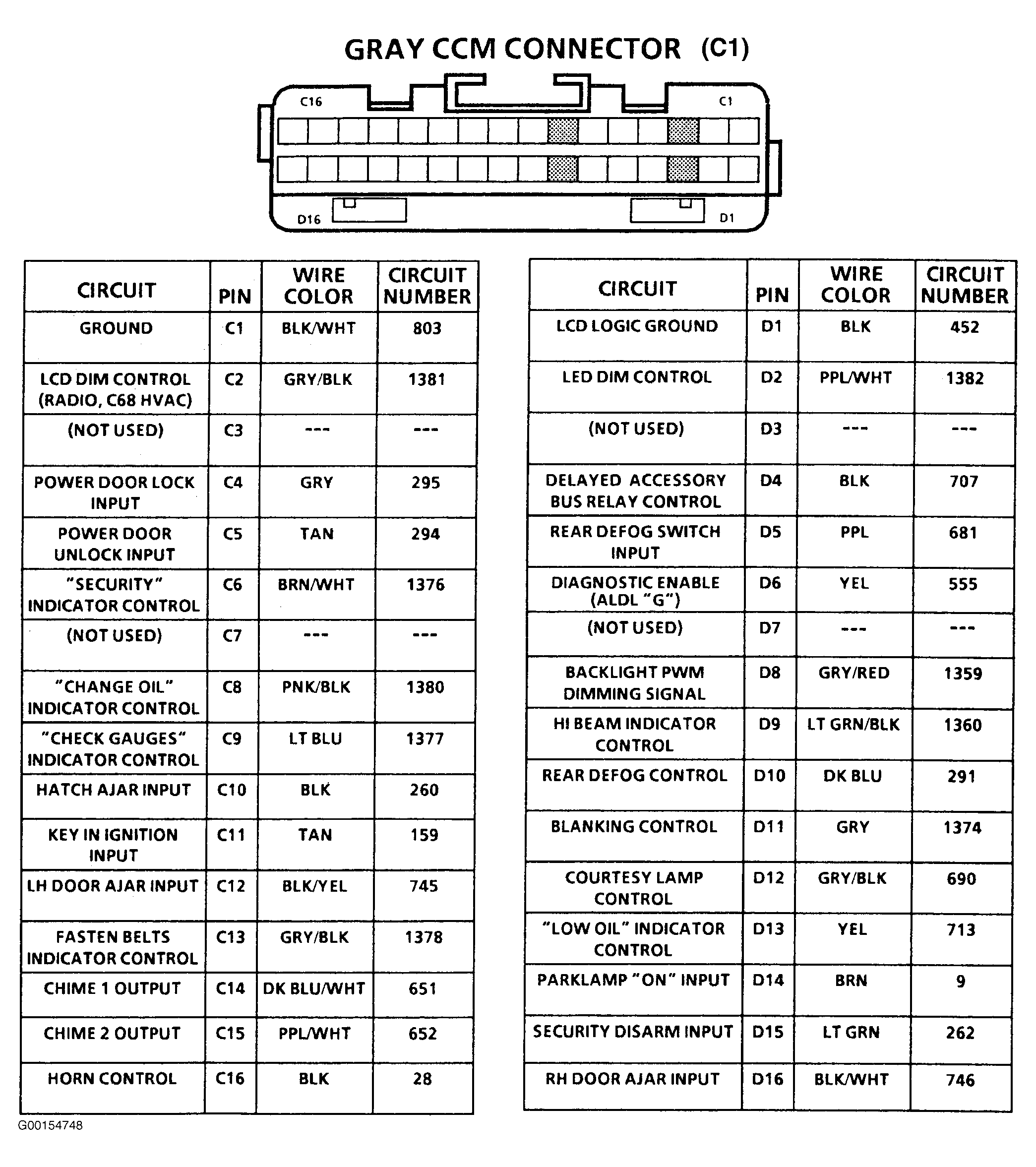

Fig 2: Identifying CCM C1 (Gray) Connector Terminals
G00154748Courtesy of GENERAL MOTORS CORP.

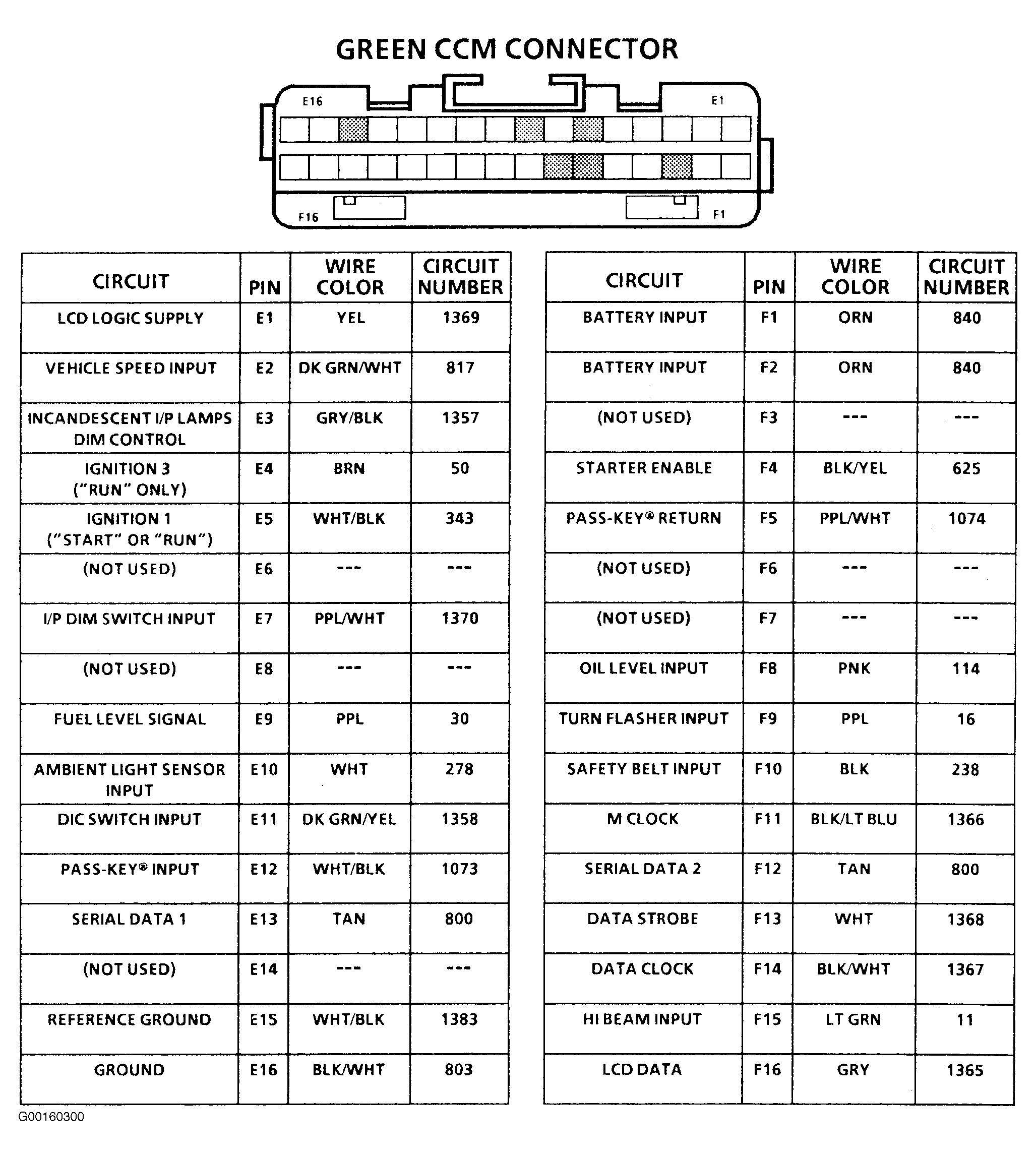

Fig 3: Identifying CCM C2 (Green) Connector Terminals
G00160300Courtesy of GENERAL MOTORS CORP.
