EGR Control Solenoid: Service and Repair

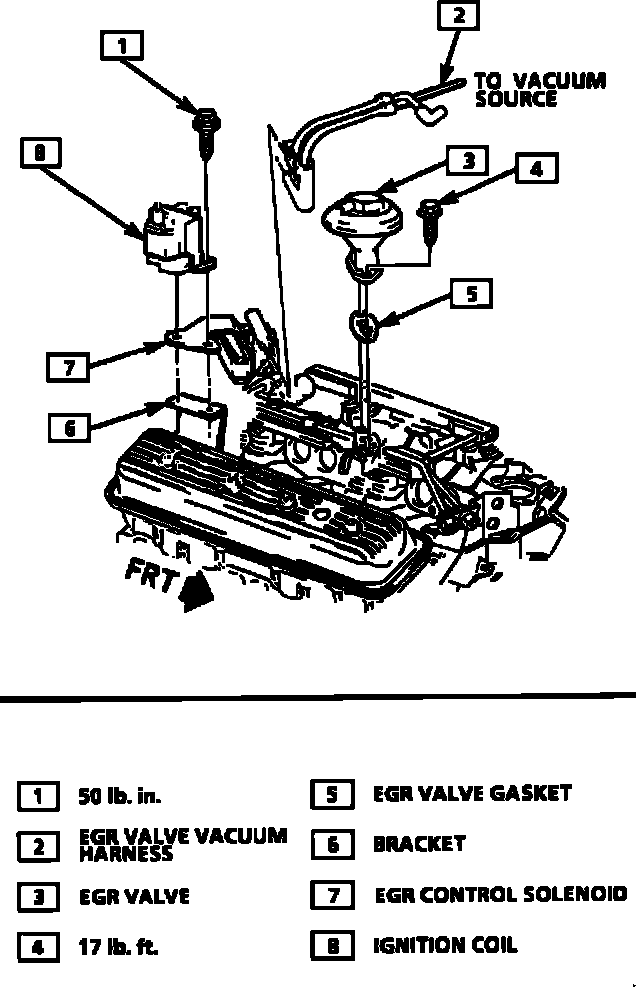

EGR And Ignition Coil Removal And Installation:

REMOVAL:
1. Disconnect negative battery cable.
2. Disconnect solenoid electrical connector.
3. Disconnect vacuum hoses.
4. Remove retaining bolt and solenoid.


INSTALLATION:
1. Install solenoid and bracket.
Torque Value: 5.6 N-m (50 lb.in.)
2. Connect vacuum lines and electrical connector.
3. Connect negative battery cable.
