Power Mirror System Diagnostics

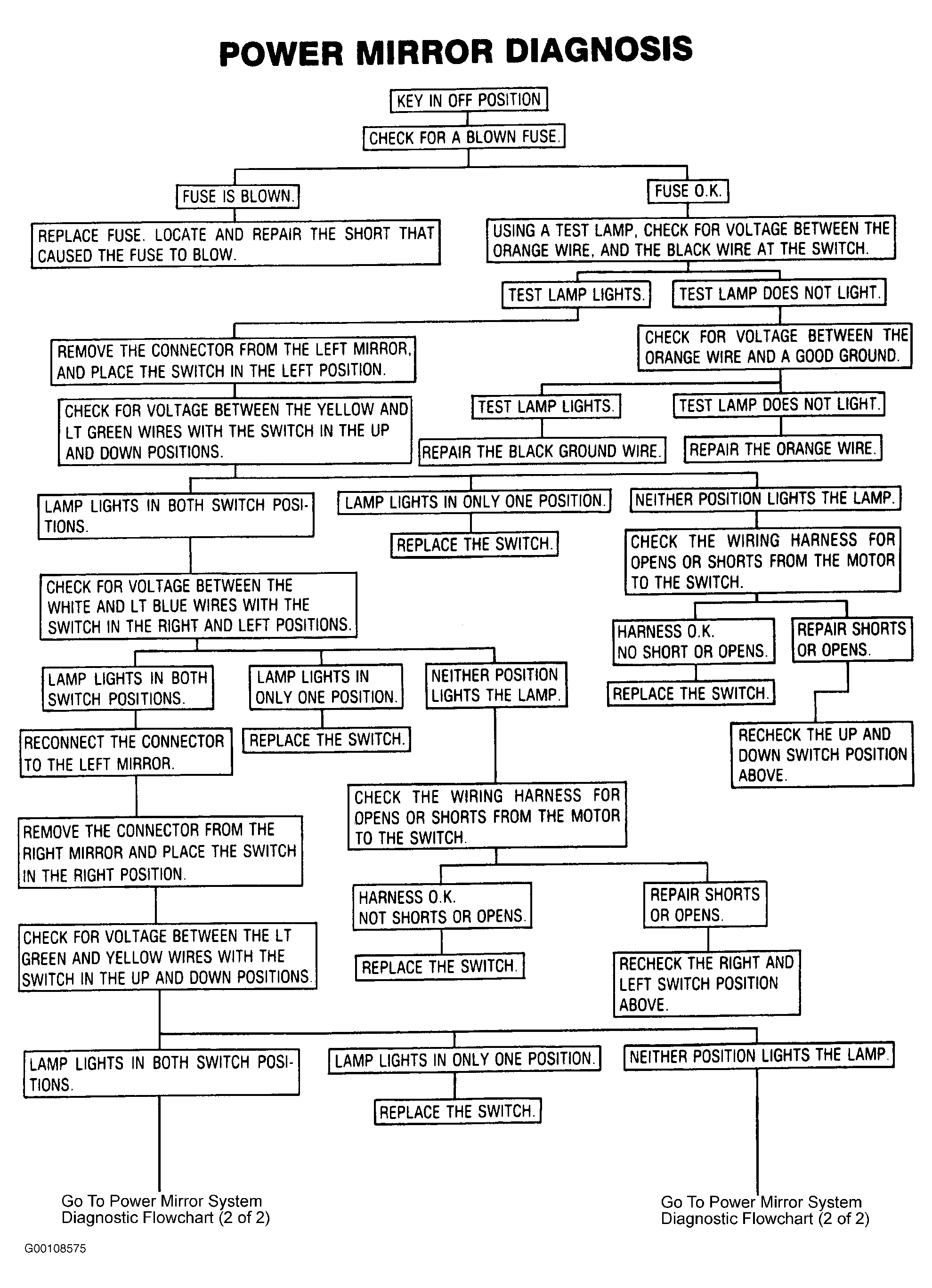

Fig 1: Power Mirror System Diagnostic Flow Chart (1 Of 2)
G00108575Courtesy of GENERAL MOTORS CORP.

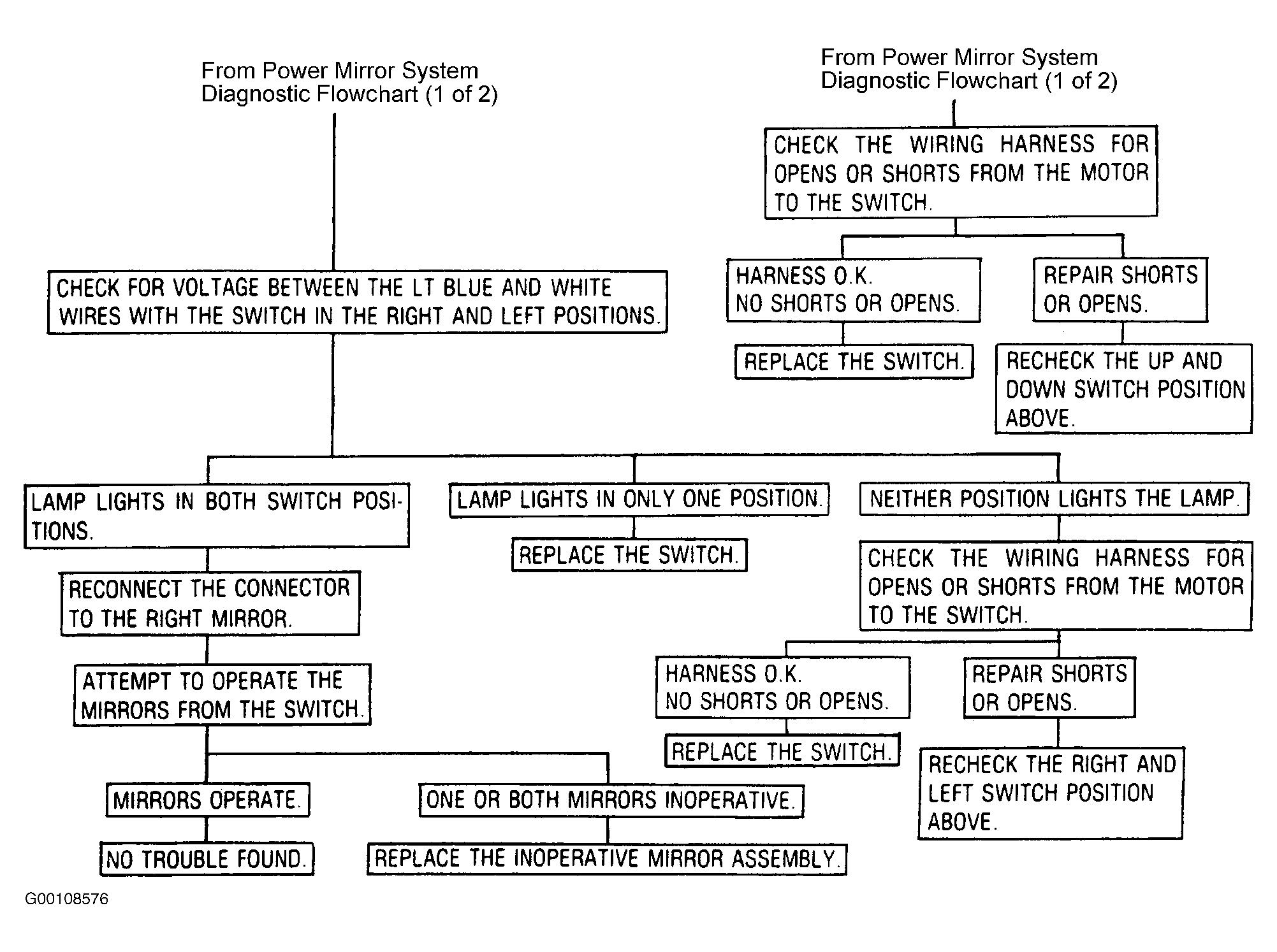

Fig 2: Power Mirror System Diagnostic Flow Chart (2 Of 2)
G00108576Courtesy of GENERAL MOTORS CORP.
