Component Locations

COMPONENT LOCATIONS

Component Location
Convenience Center Behind Left Side Of Instrument Panel. See Fig 1
Fuse Block Behind Left Side Of Instrument Panel. See Fig 1
Left Hand Window Motor Inside Left Front Door. See Fig 2
Left Hand Window Switch On Left Door Panel. See Fig 2
Right Hand Window Motor Inside Right Front Door. See Fig 2
Right Hand Window Switch On Right Door Panel. See Fig 2
C244 Behind Right Side of Instrument Panel, At Right Shroud. See Fig 3
C245 Behind Left Side Of Instrument Panel, At Left Shroud. See Fig 3 .
GT520 At Left A-Pillar. See Fig 2
GT620 At Right A-Pillar. See Fig 2
G150 On Radiator Support, Near Left Headlamp. See Fig 4
S208 Behind Left Side Of Instrument Panel, Above Steering Column. See Fig 5
S250 In Crossbody Harness Left Side Of Instrument Panel. See Fig 3

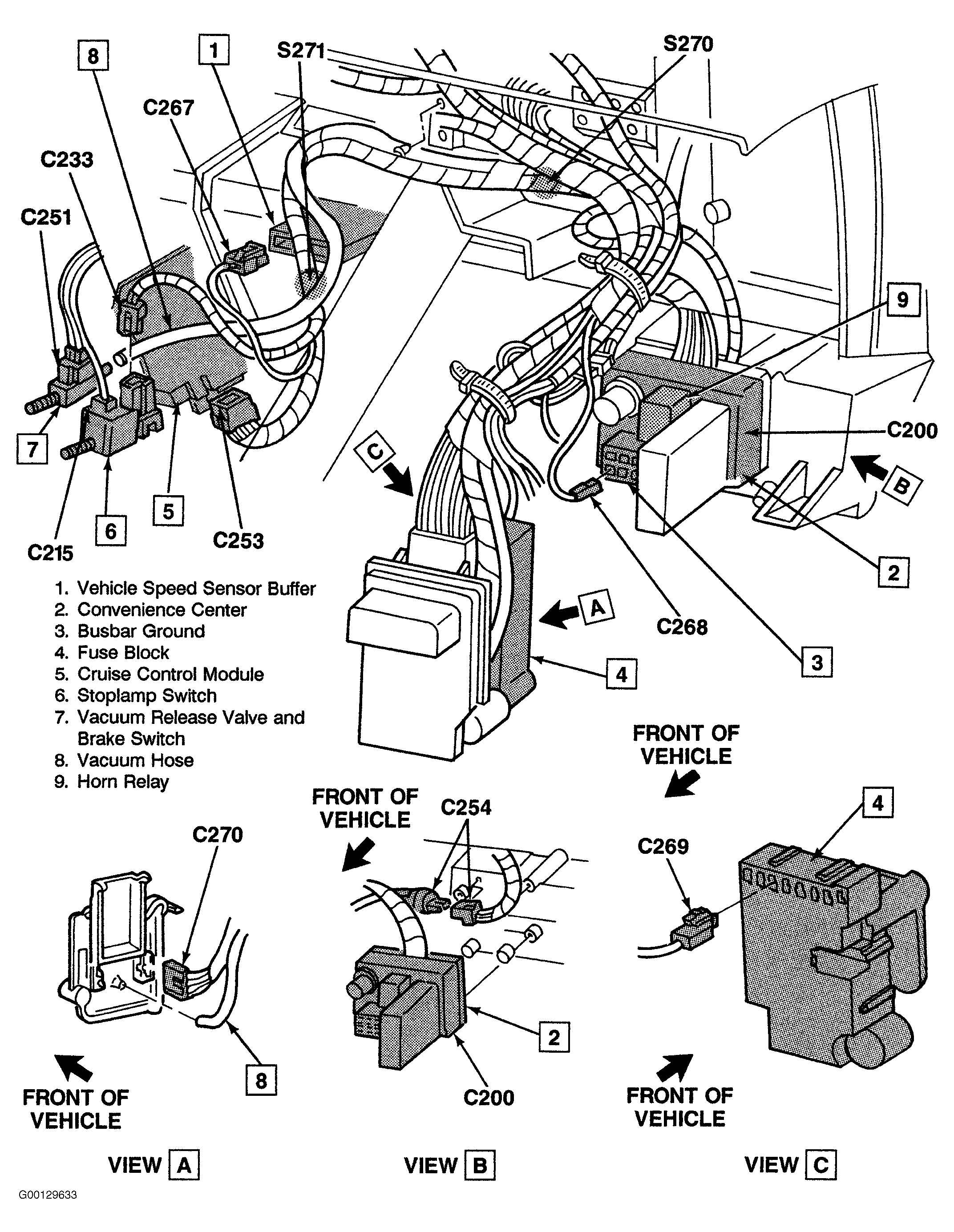

Fig 1: Locating Convenience Center & Fuse Block
G00129633Courtesy of GENERAL MOTORS CORP.

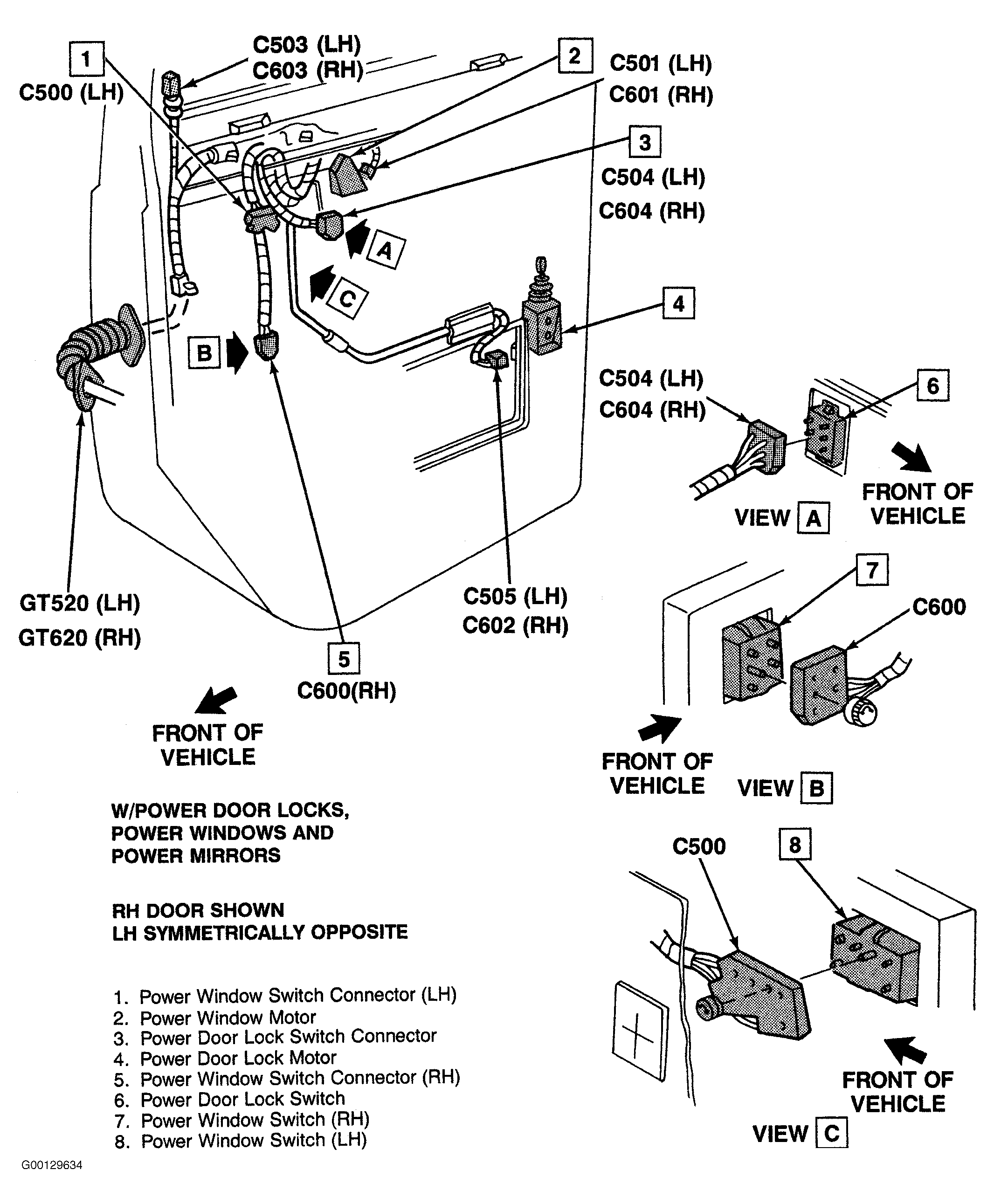

Fig 2: Locating Power Window System Motors, Switches & Grommets
G00129634Courtesy of GENERAL MOTORS CORP.

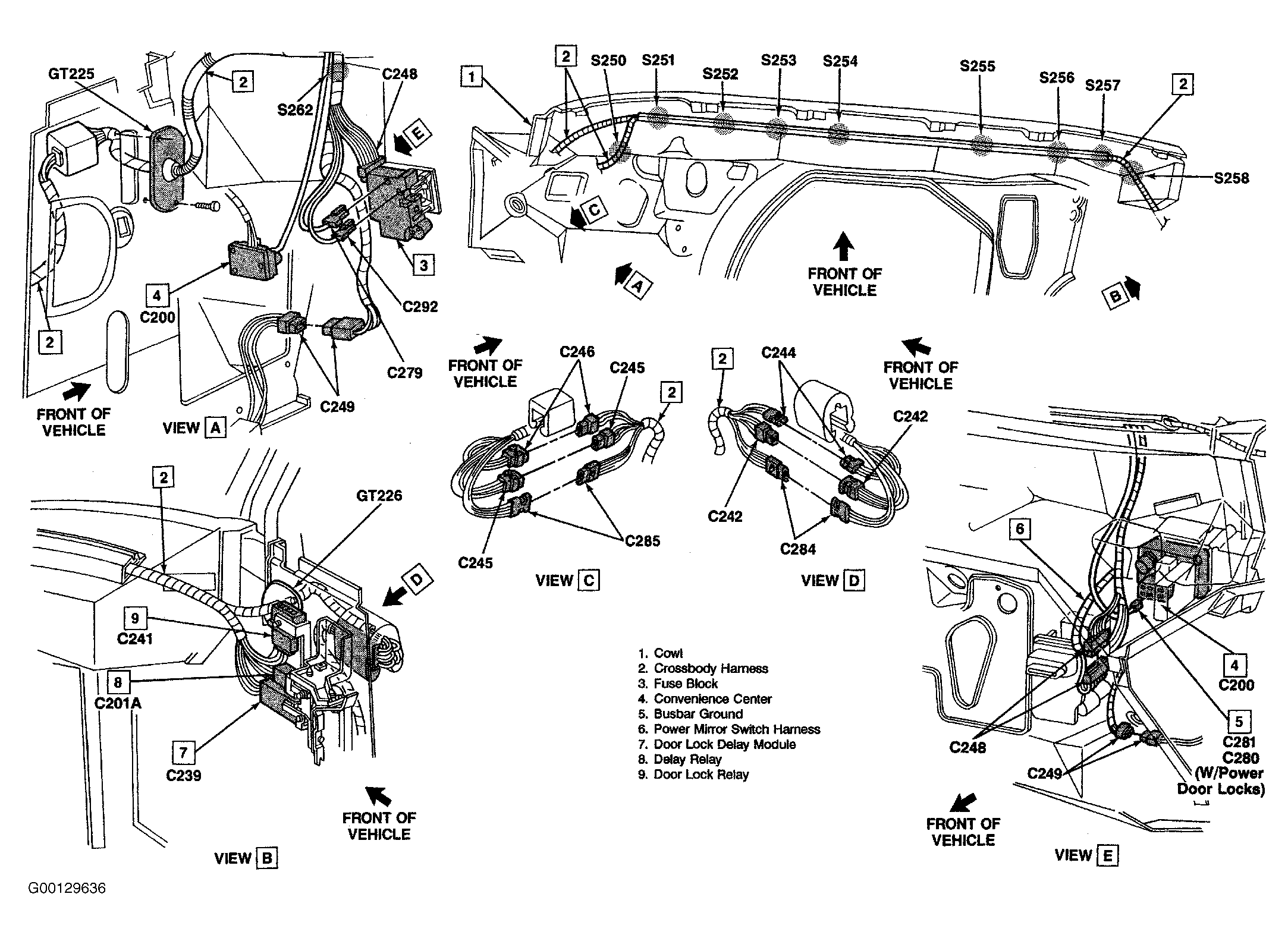

Fig 3: Locating Connectors 244 & 245 & Splice 250
G00129636Courtesy of GENERAL MOTORS CORP.

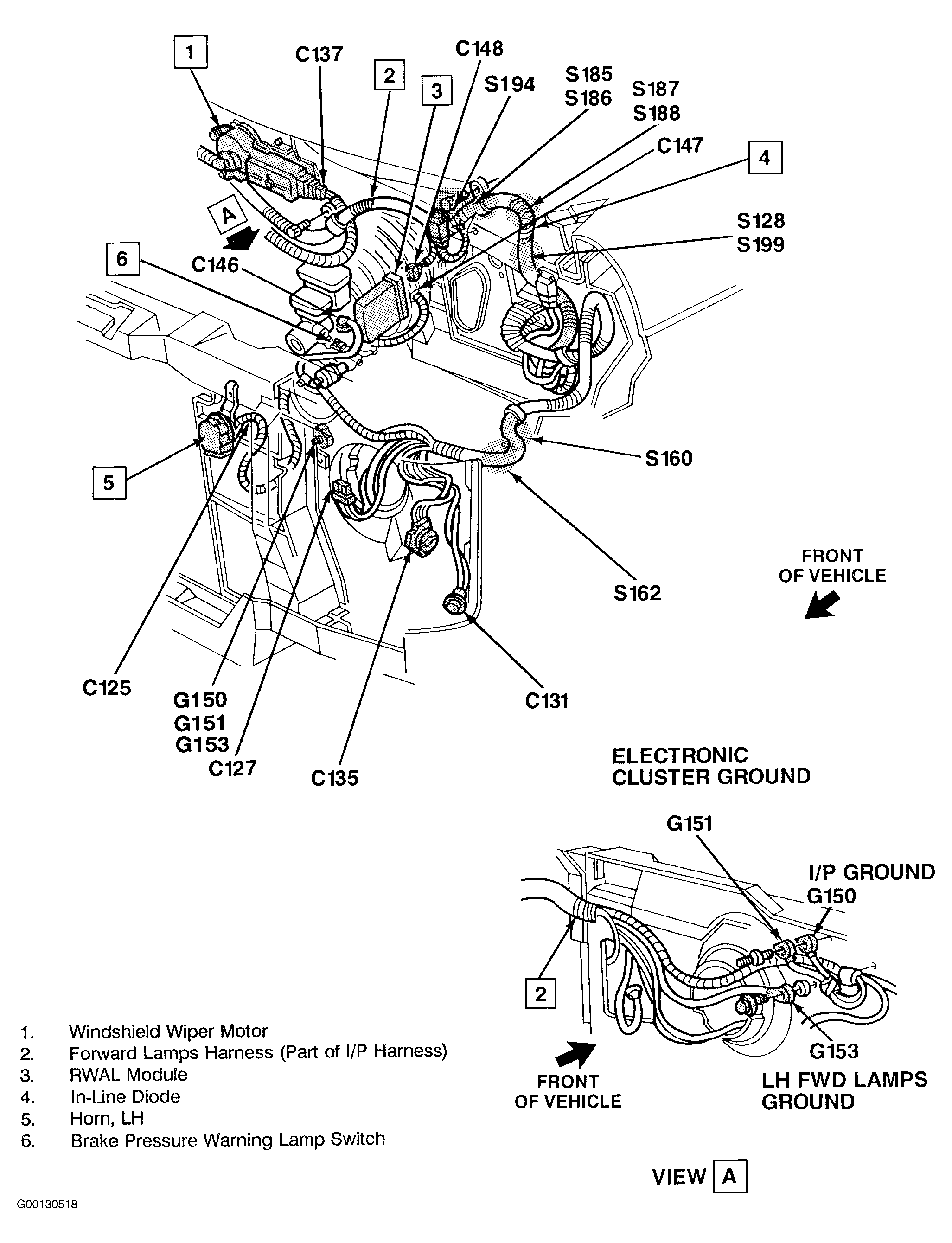

Fig 4: Locating Ground 150
G00130518Courtesy of GENERAL MOTORS CORP.

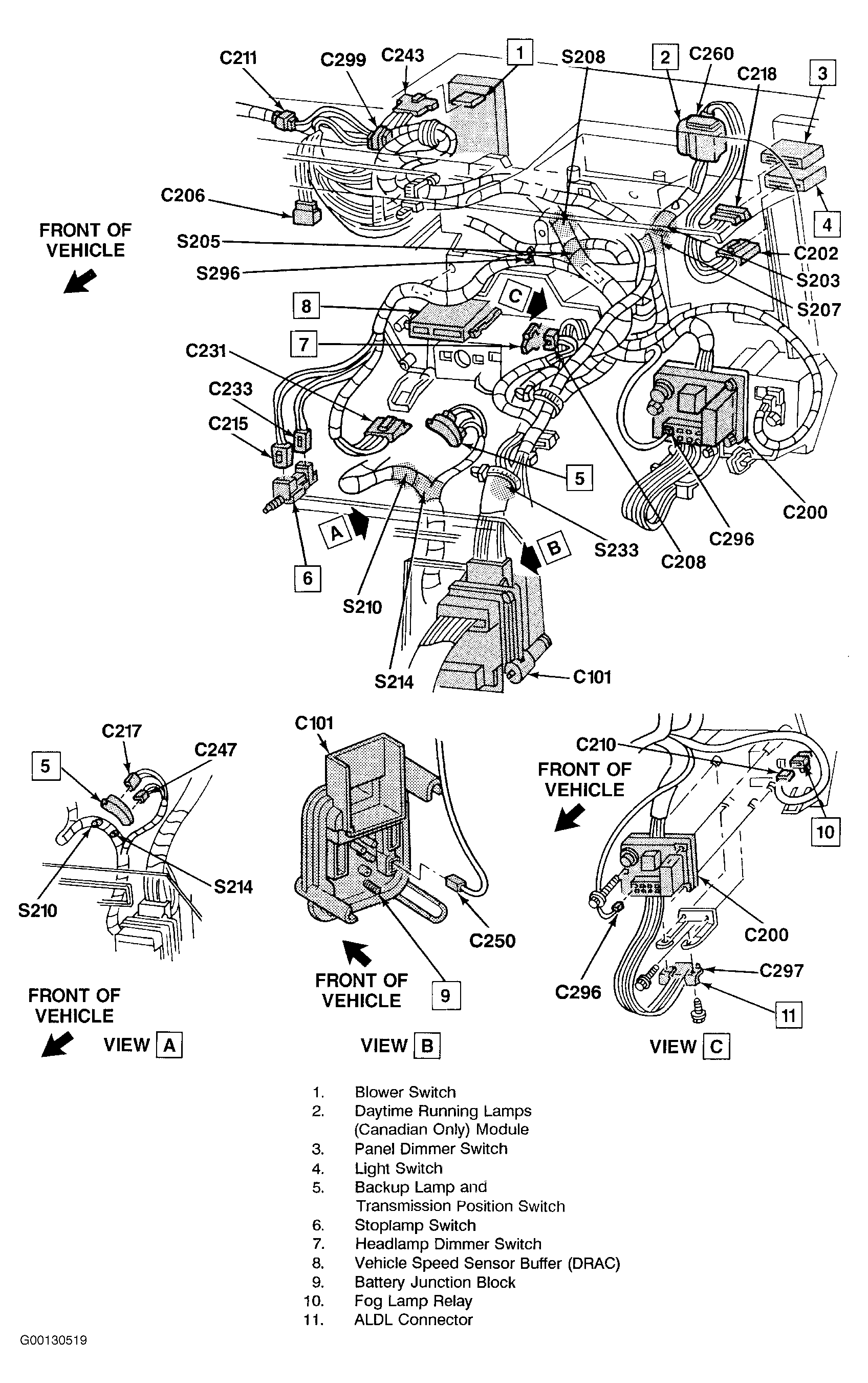

Fig 5: Locating Splice 208
G00130519Courtesy of GENERAL MOTORS CORP.
