Test C: Window Switch Test

To perform test, see Fig 1 .

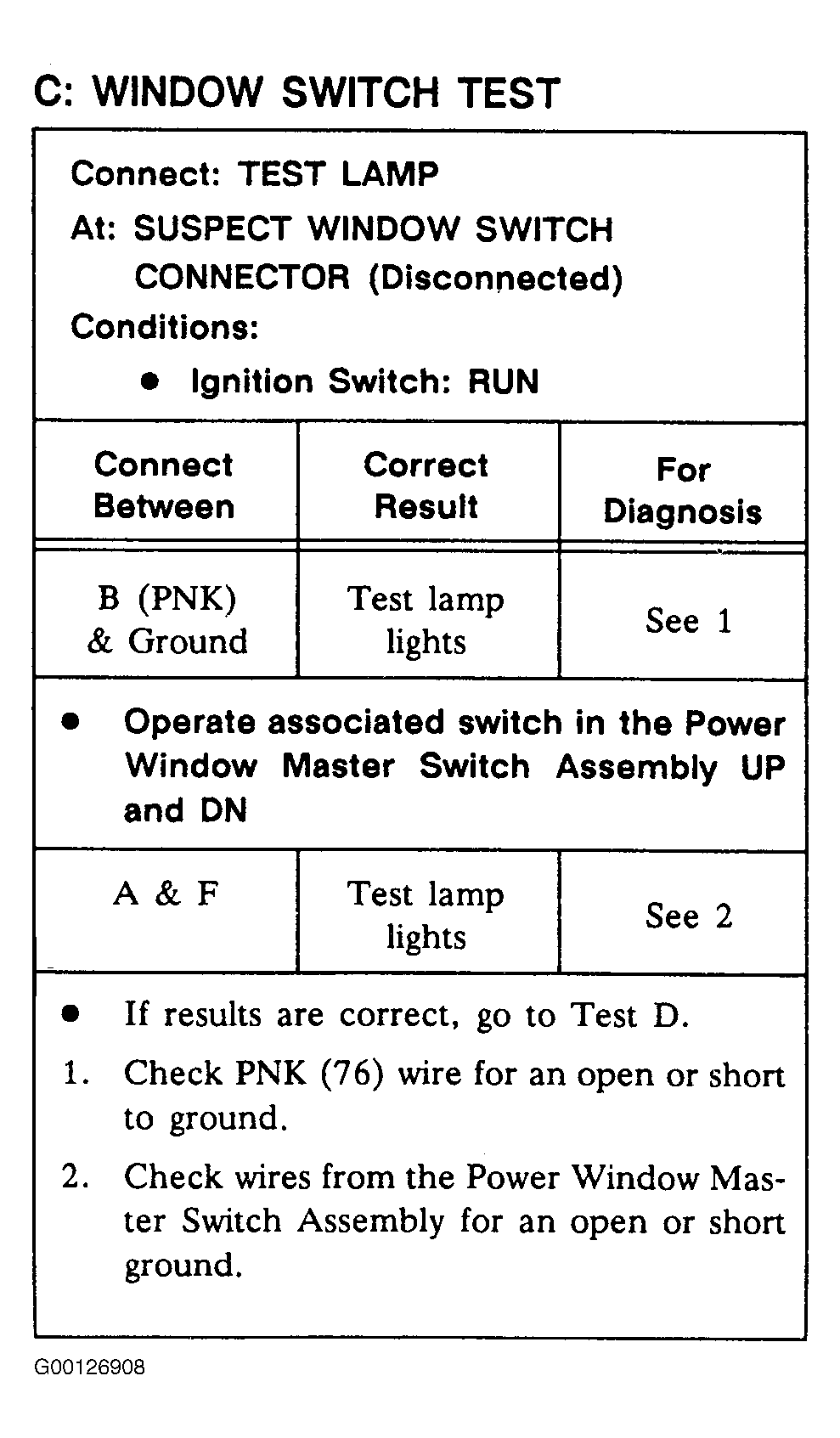

Fig 1: Test C: Window Switch Test
G00126908Courtesy of GENERAL MOTORS CORP.
