Test B: Power Window Master Switch Assembly Test

To perform test, see Fig 1 .

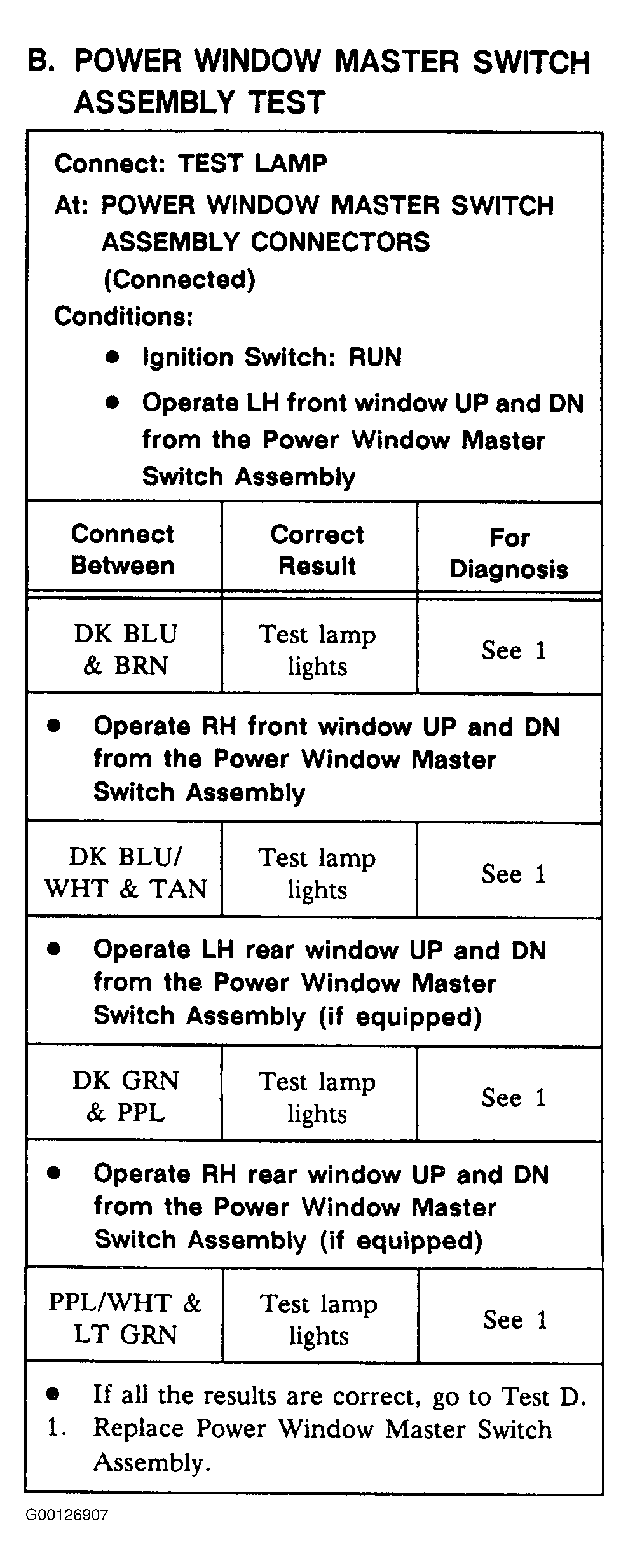

Fig 1: Test B: Power Window Master Switch Assembly Test
G00126907Courtesy of GENERAL MOTORS CORP.
