VIN 8

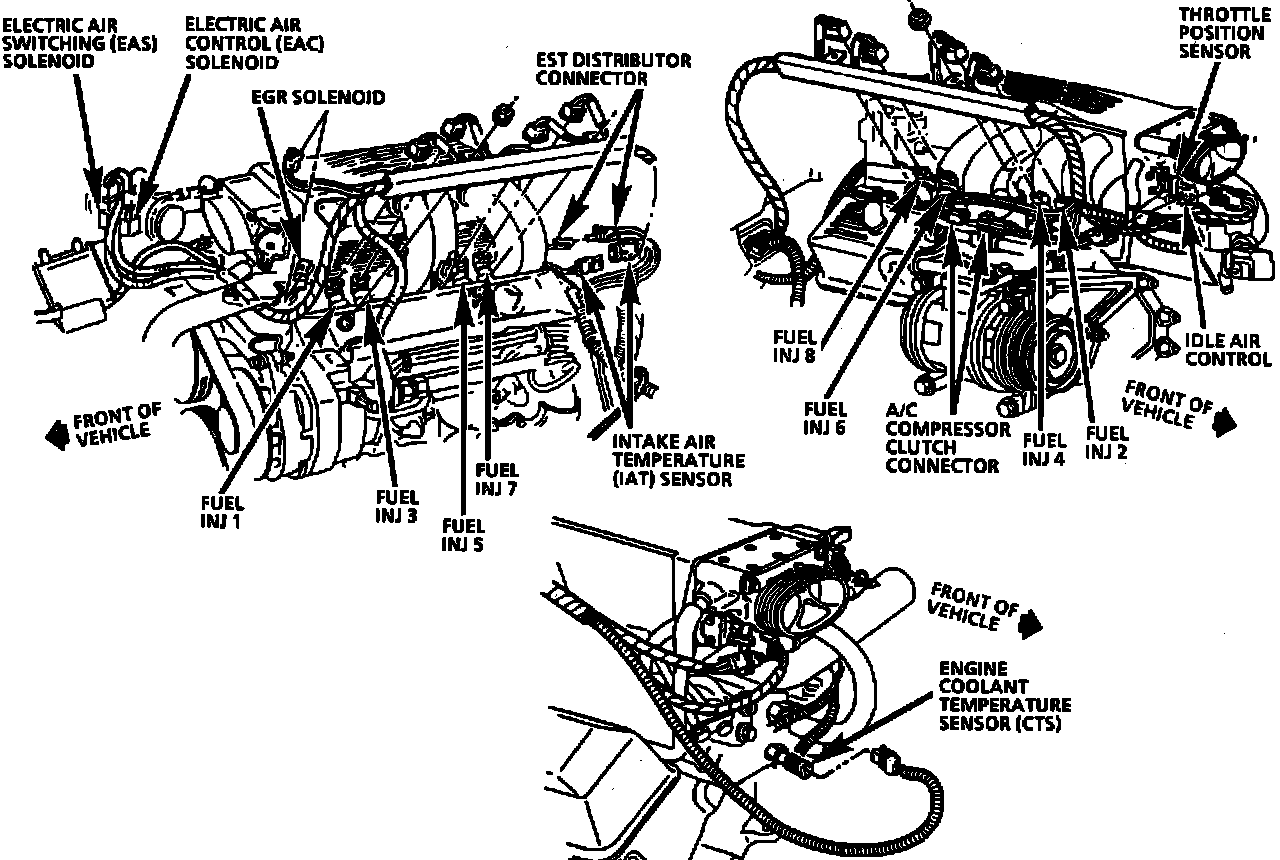

Engine Compartment:




Engine Compartment.:




RH Front Of Engine Compartment

Applicable to: 1991 VIN 8
