Electronic Control Module (ECM)

Engine Compartment:

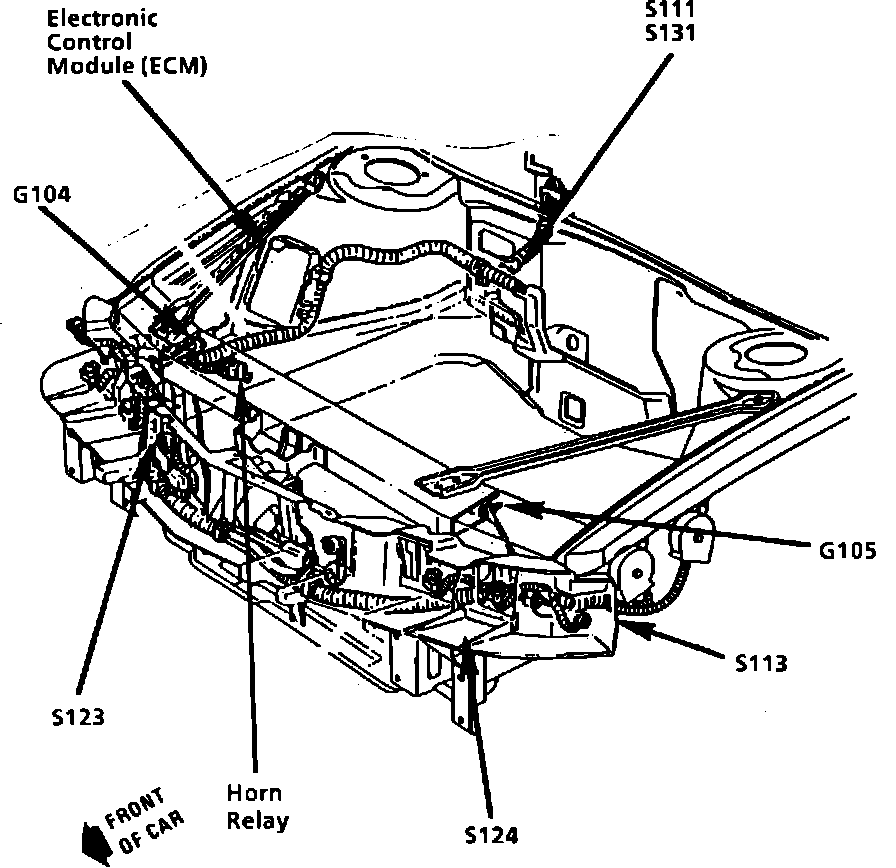

Engine Compartment, Front Of RH Strut Tower

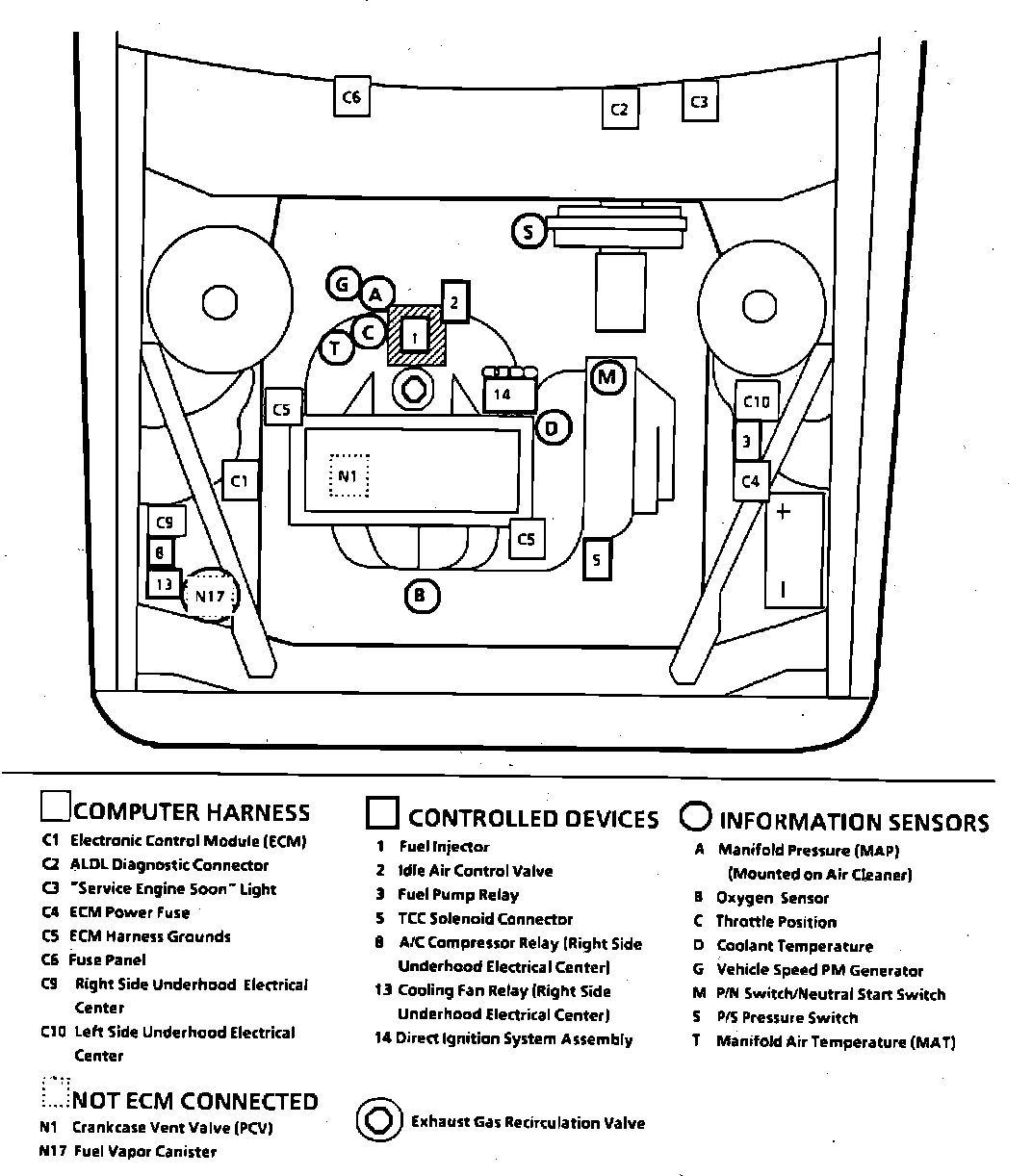

Engine Compartment Components.:





RH Side Of Engine Compartment

Applicable to: Lumina w/4-151/2.5L TBI
