System Specifications

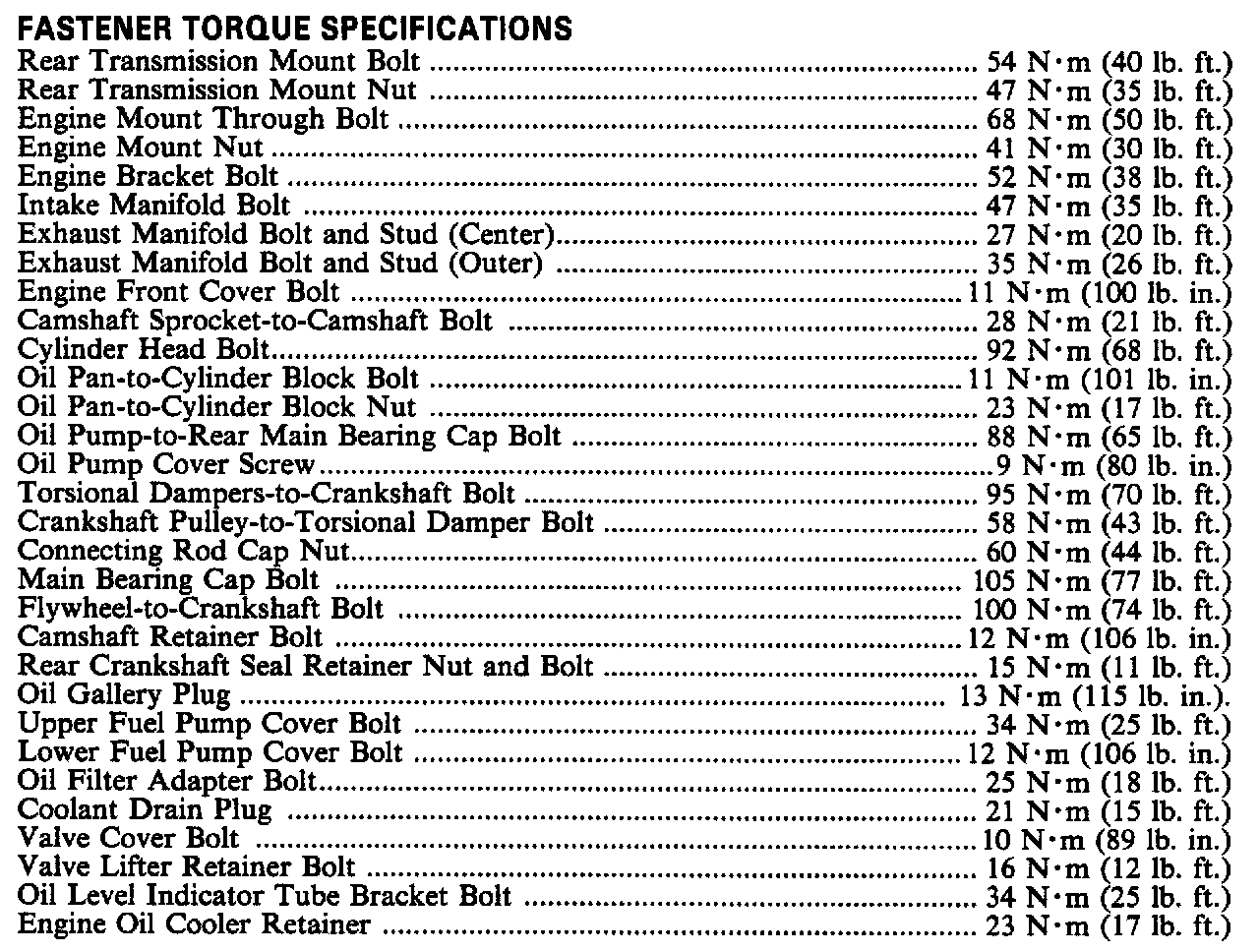

Torque Specifications:

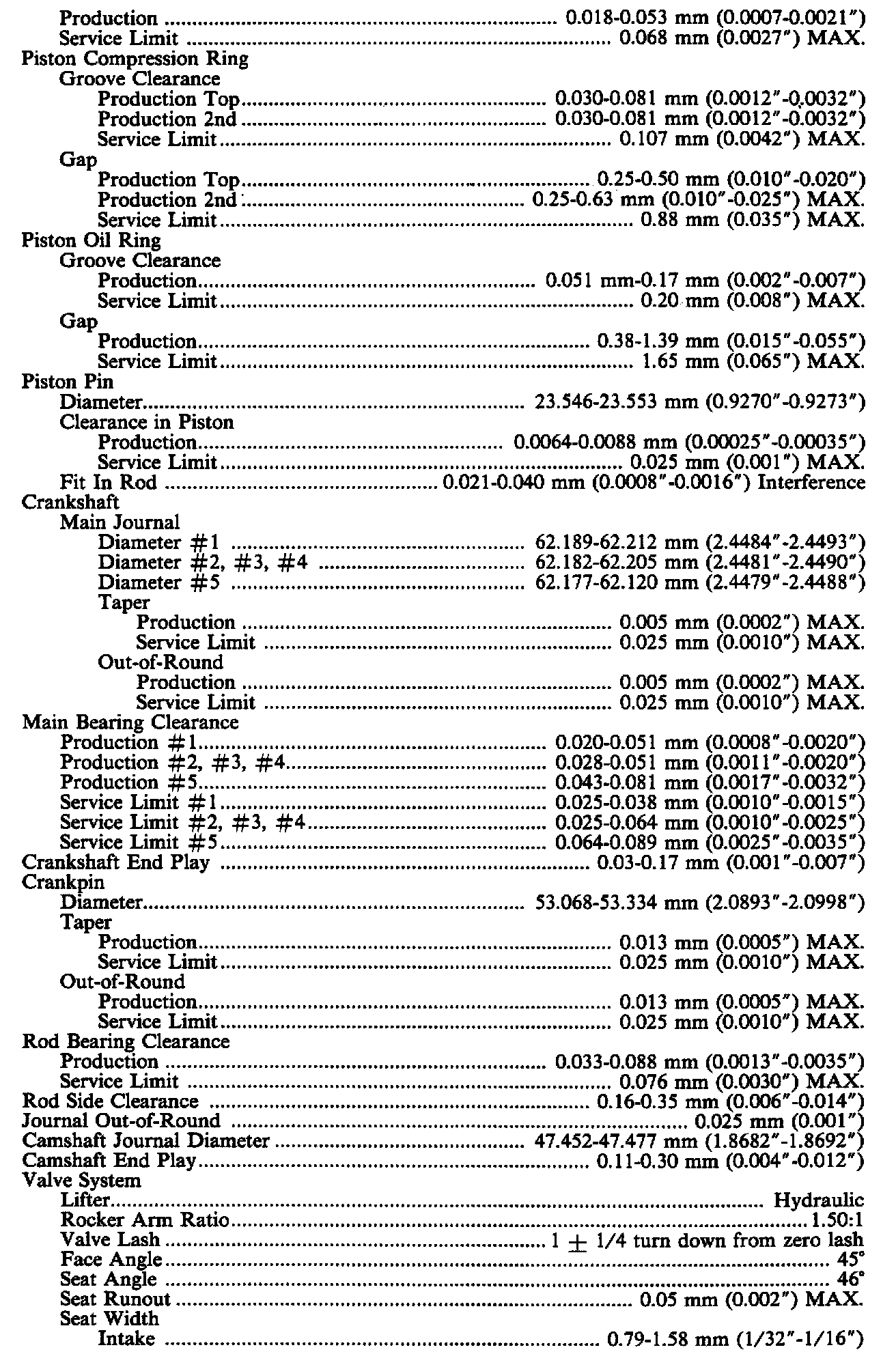

Engine Specifications 5.7 (L98):

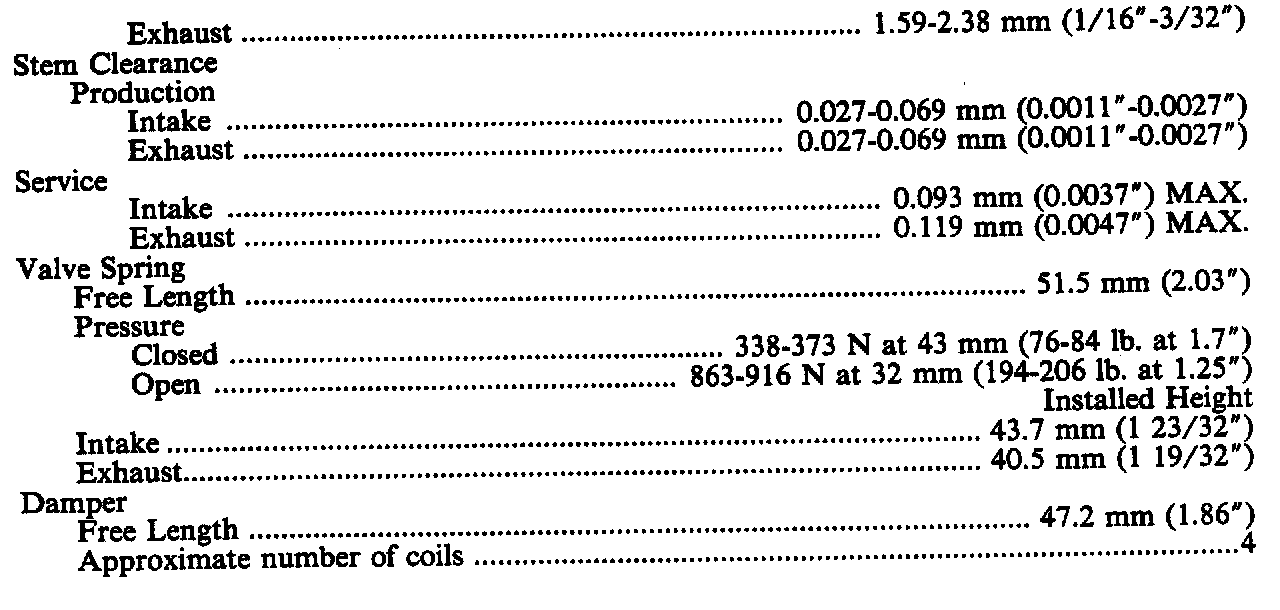

General Engine Specifications:




General Engine Specifications:




General Engine Specifications:





Intake Manifold Torque Sequence:





Cylinder Head Torque Sequence:
