Ignition Shut Down Relay (For Antitheft)
>>
Locations
October 30: LEMON manuals on a temporary server, it is slow and having issues, download the manuals you need! Later in November we will switch back to the fast server.
Ignition Shut Down Relay (For Antitheft): Locations

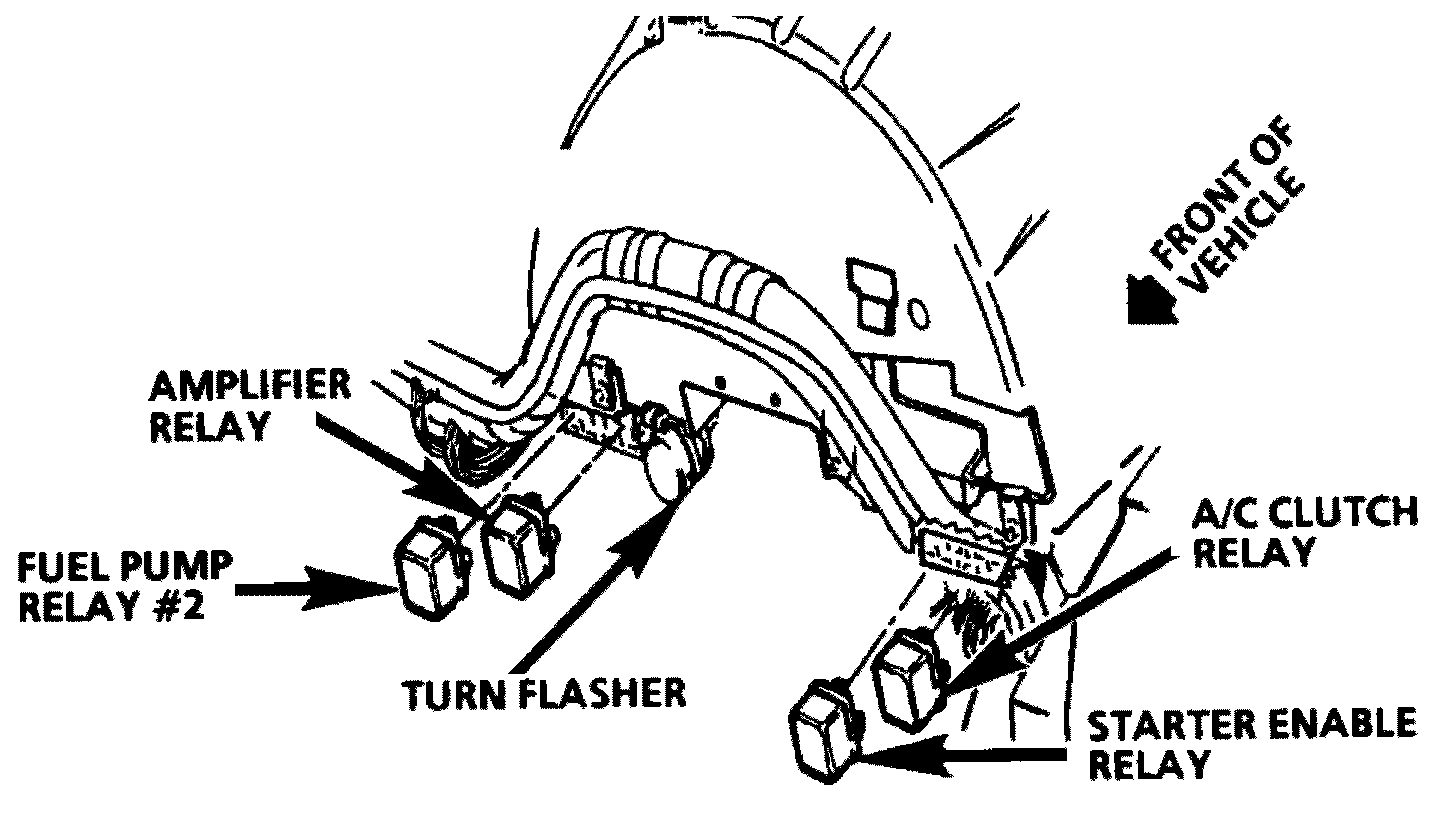

Below LH Side Of I/P:
