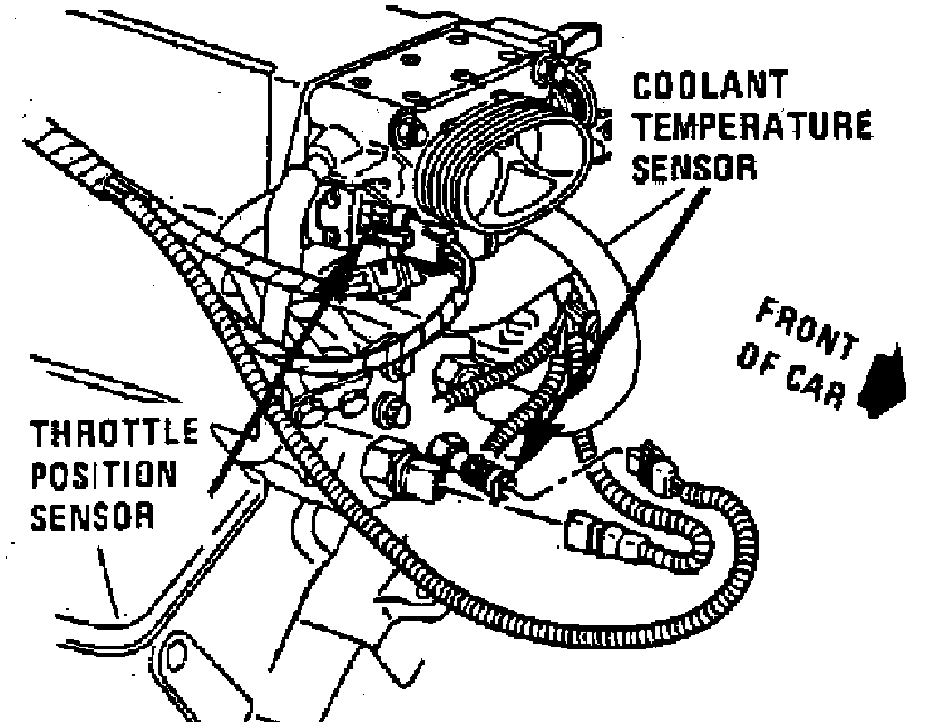

Throttle Position Sensor: Locations

Coolant Temperature Sensor:

The Throttle Position Sensor (TPS) is located at the front of the engine, on the side of the throttle body.
