Electronic Control Module

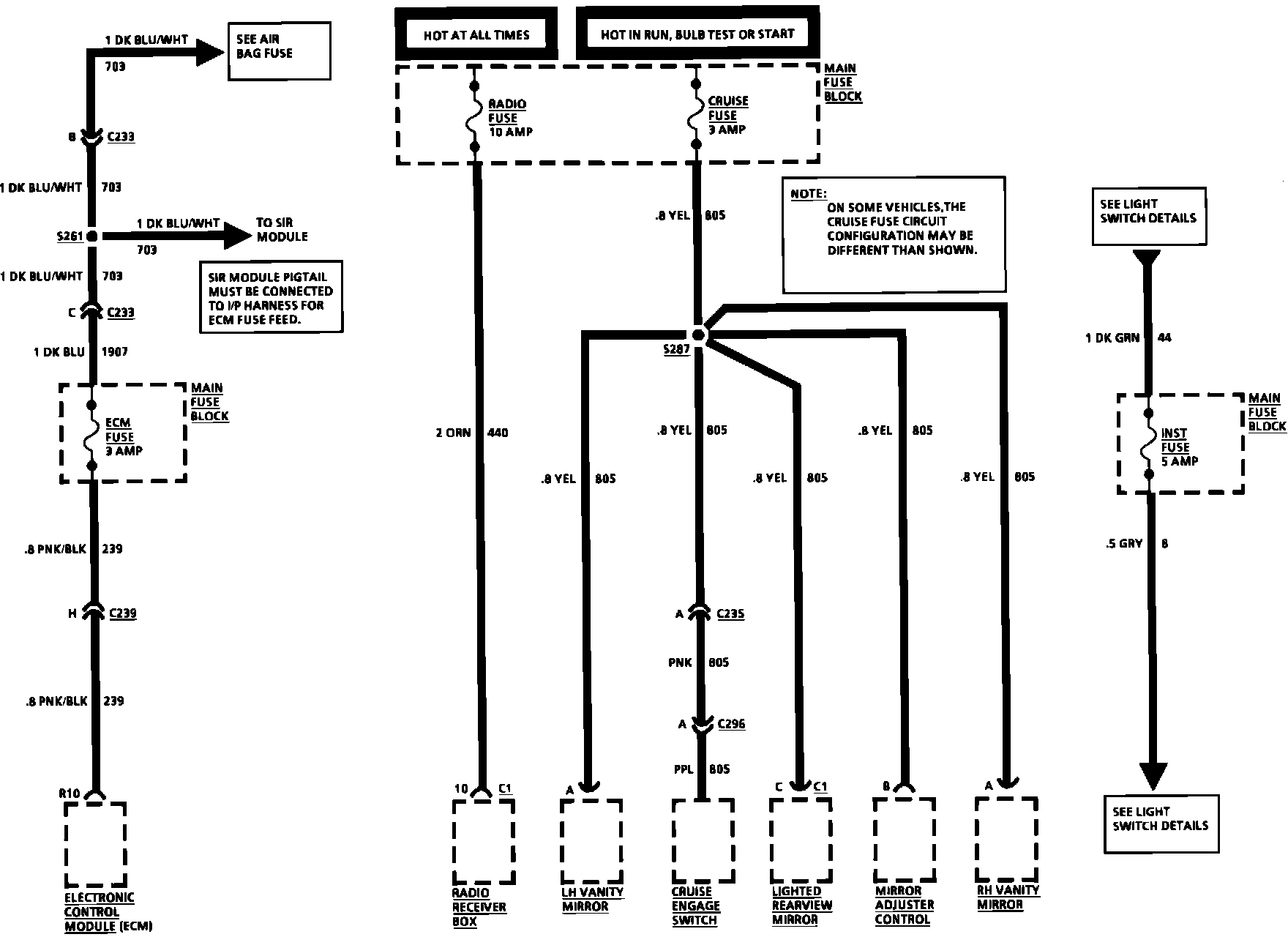

Fuse Block Details (Cruise Control Fuse, ECM Fuse, Radio Fuse & I/P Fuse):
