Anti-Lock Brake Diode

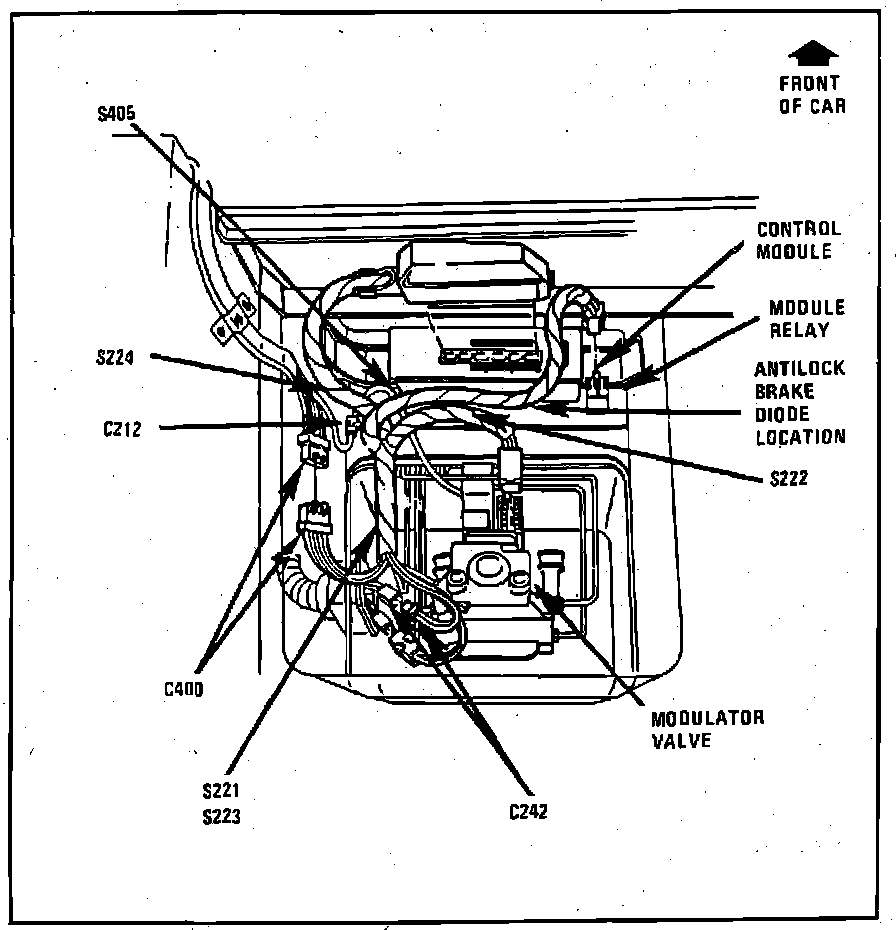

Anti-Lock Brake Diode Component Location.:




Under LH Side Of Cargo Compartment, Behind LH Seat

Applicable to: 1989
