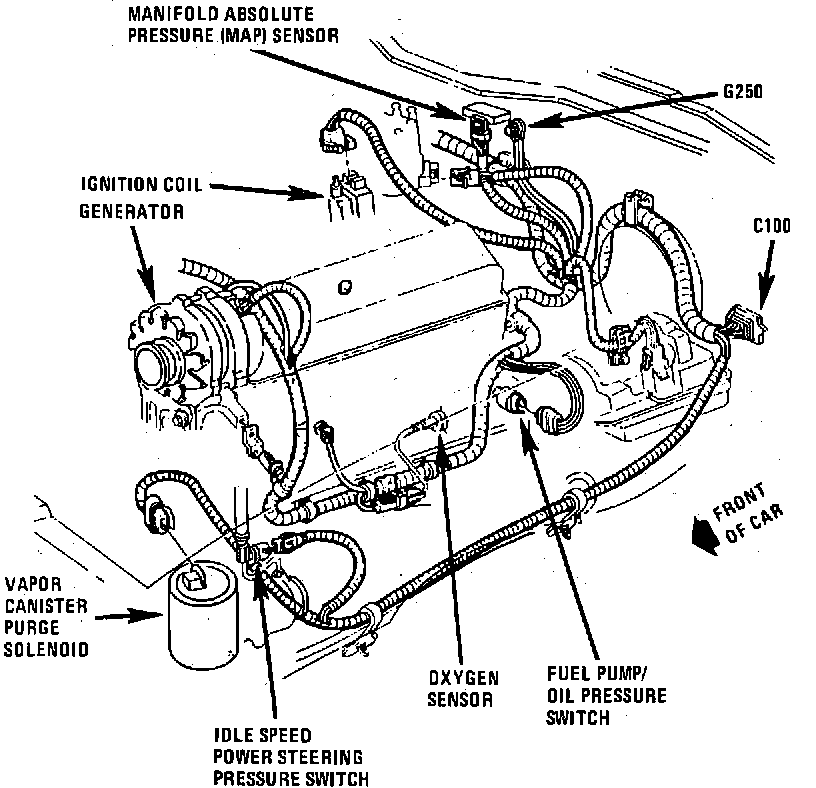

Manifold Pressure/Vacuum Sensor: Locations

RH Rear Of Engine.:

Center Of Firewall

Applicable to: Caprice & Safari w/V8-305/5.0L TBI
