Starter Motor: Testing and Inspection

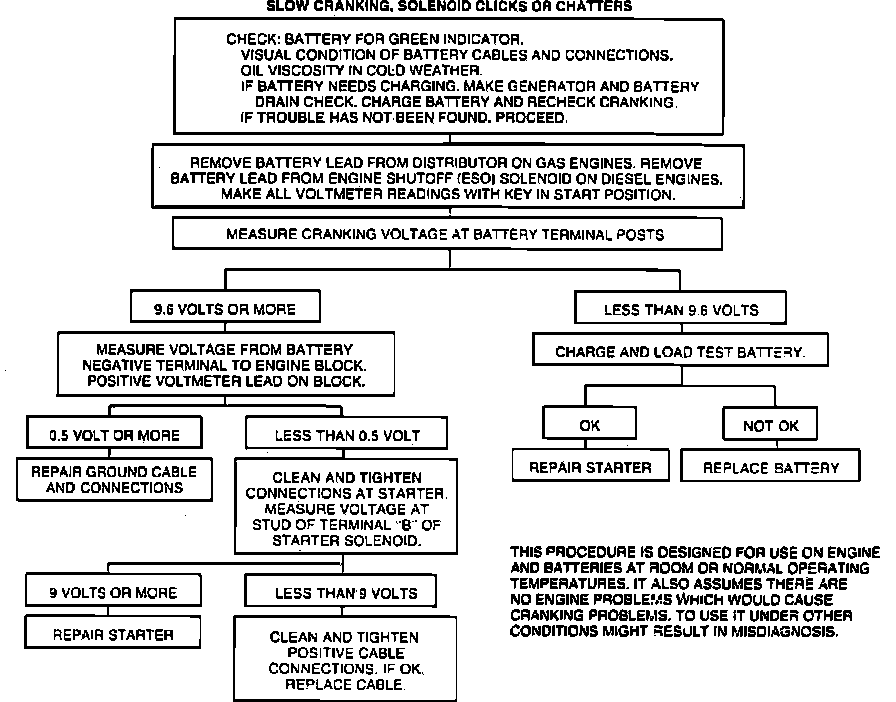

Fig. 11 Diagnosis Chart (Part 1 of 3):

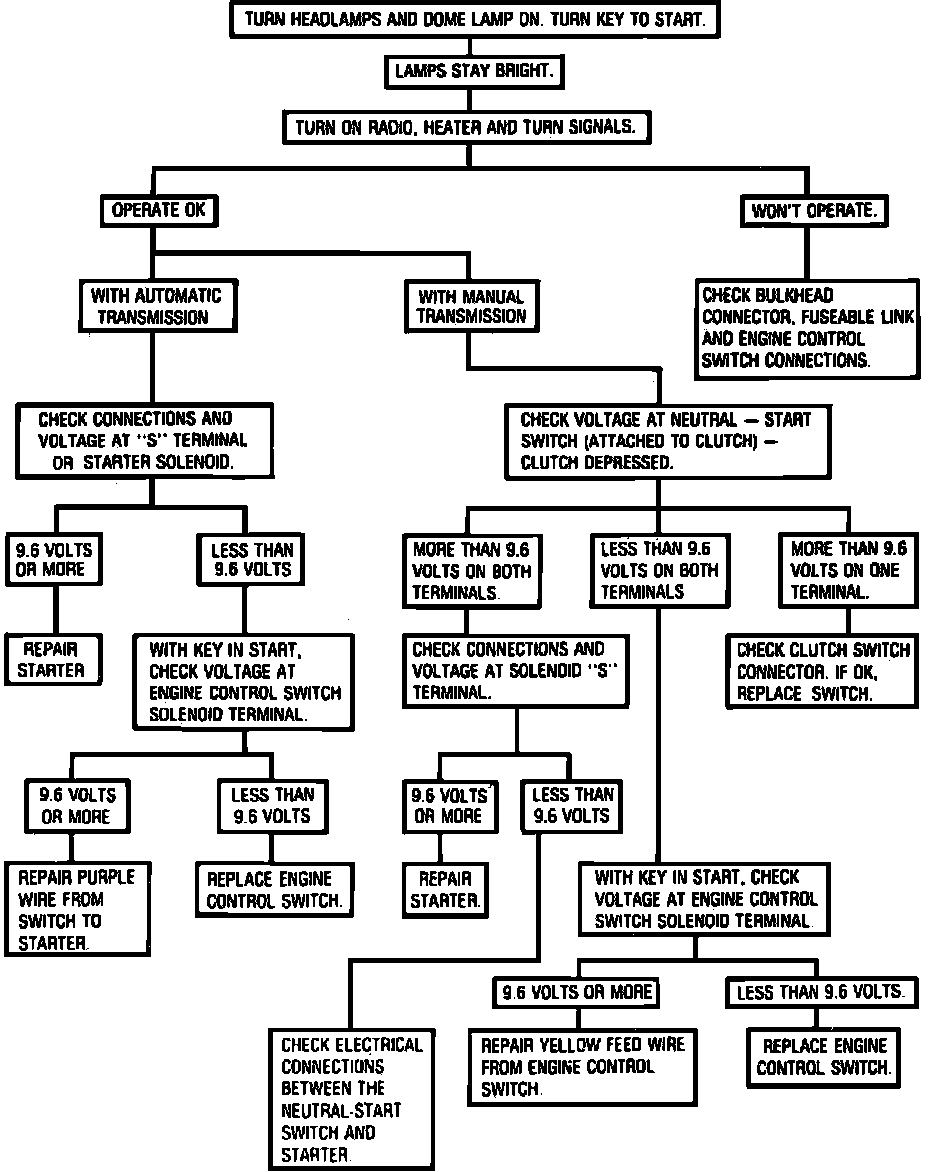

Fig. 11 Diagnosis Chart (Part 2 of 3):

Fig. 11 Diagnosis Chart (Part 3 of 3):

Fig. 12 Connections For Checking Free Speed Of Motor:

When diagnosing Delco-Remy starter motors, refer to Fig. 11.

This test is performed during bench testing. With the circuit connected as shown in Fig. 12, use a tachometer to measure armature revolutions per minute. Failure of the motor to perform to specifications may be due to light or dry bearings, or high resistance connections. Starting motors do not require lubrication except during overhaul. At this time a couple drops of light oil may be applied to bearings.
