Home >> Chevrolet >> 1990 >> APV >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes - TBI >> Diagnostic Tests >> Code 45: Rich Exhaust Indication >> EGR Problem
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

EGR Problem

EGR valve sticking open at idle is usually accompanied by a rough idle and/or stalling. If Code 45 is intermittent, see INTERMITTENTS in H - TESTING W/O CODES article.

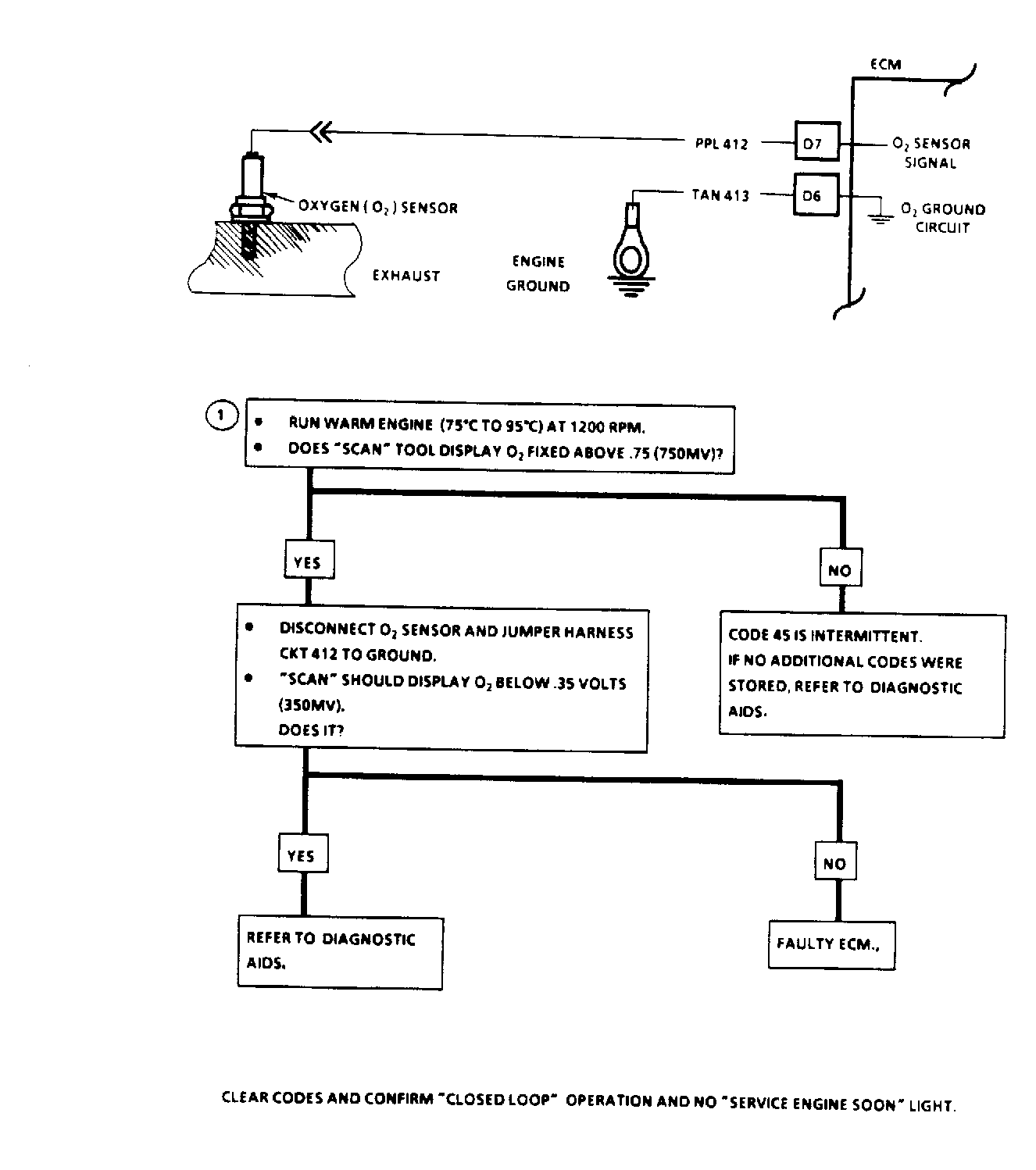

Fig 1: Code 45: Flow Chart Rich Exhaust Indication
G120824
