Diagnostic Aids

If the engine is allowed to cool overnight, the coolant temperature sensor and MAT sensor should read close to each other, when measured with a "Scan" tester. A Code 25 will also result if sensor signal circuit is shorted to ground.

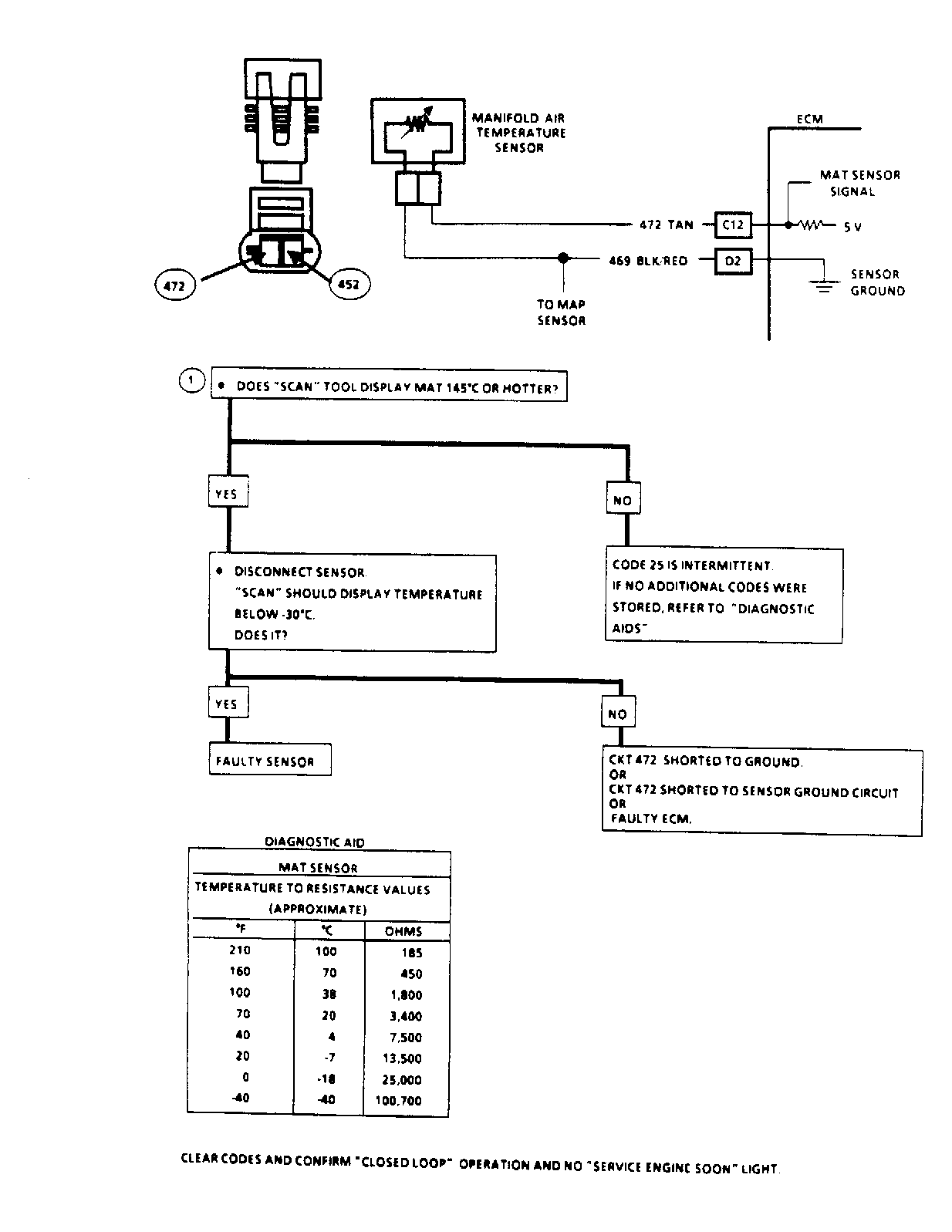

Fig 1: Code 25: MAT Sensor Temp High (2.5L)
G120814
