Camber (Rear)

Hold bolt head located at inner end of lateral strut. Loosen cam nut and rotate cam to obtain required specifications. Tighten cam nut to 25 ft. lbs. (34 N.m). See Fig 1 .

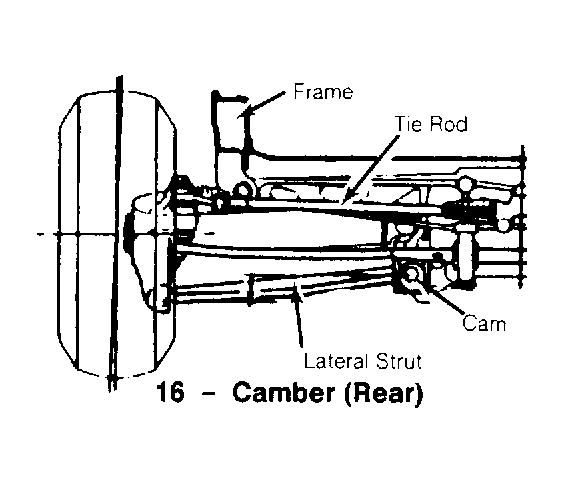

Fig 1: Camber Adjustment (Rear)
