Component Locations

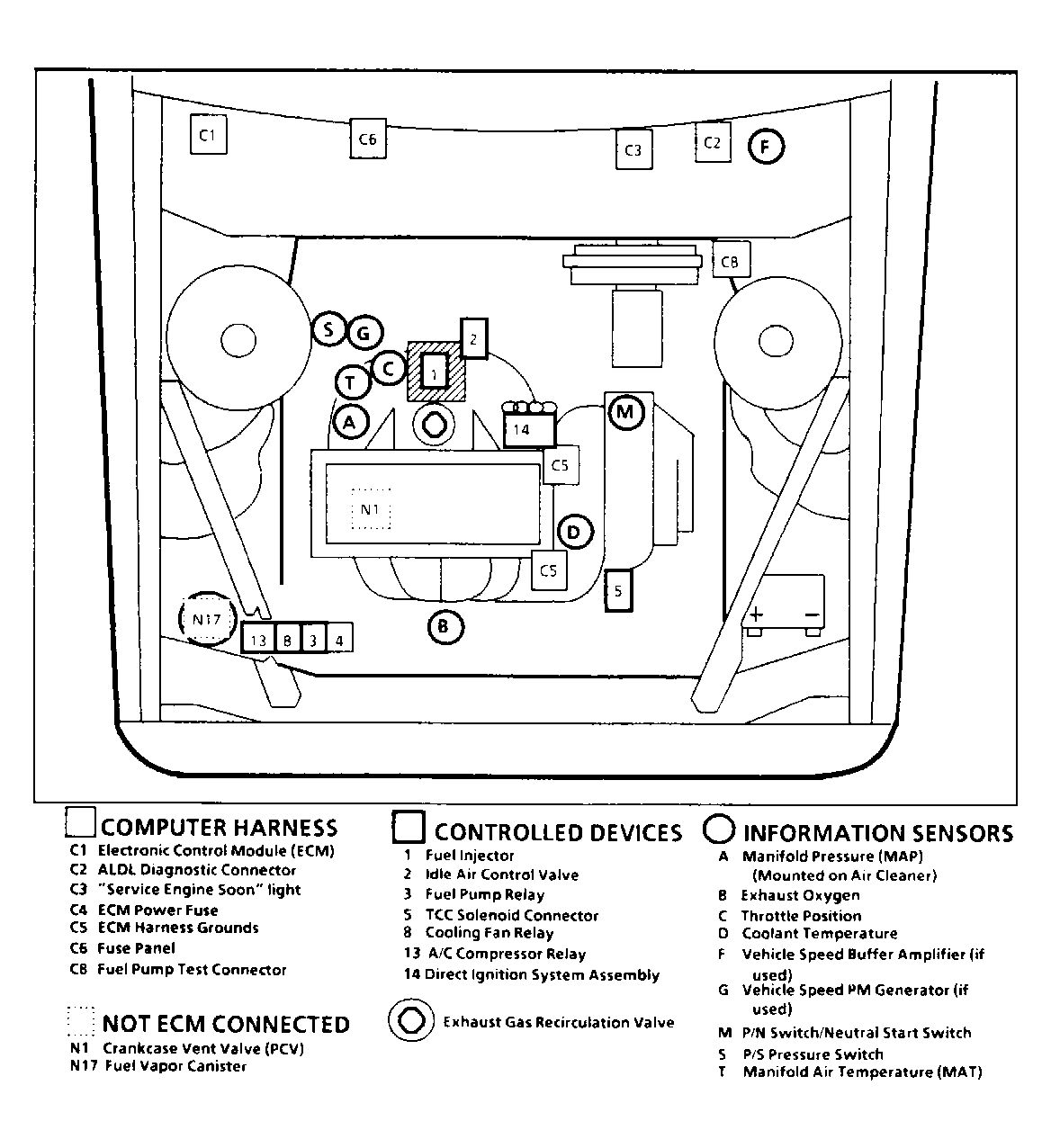

Fig 1: TBI Component Locations (2.0L VIN K, J Body)

Courtesy of GENERAL MOTORS CORP.

Fig 2: TBI Component Locations (2.5L VIN R, A Body)

Courtesy of GENERAL MOTORS CORP.

Fig 3: TBI Component Locations (2.5L VIN U, N Body)

Courtesy of GENERAL MOTORS CORP.
