EGR Problem

EGR valve sticking open at idle is usually accompanied by a rough idle and/or stalling. If Code 45 is intermittent, see INTERMITTENTS in the CCC TESTS W/O CODES article in this section.

Fig 1: Code 45 Schematic, Rich Exhaust Indication
G110317

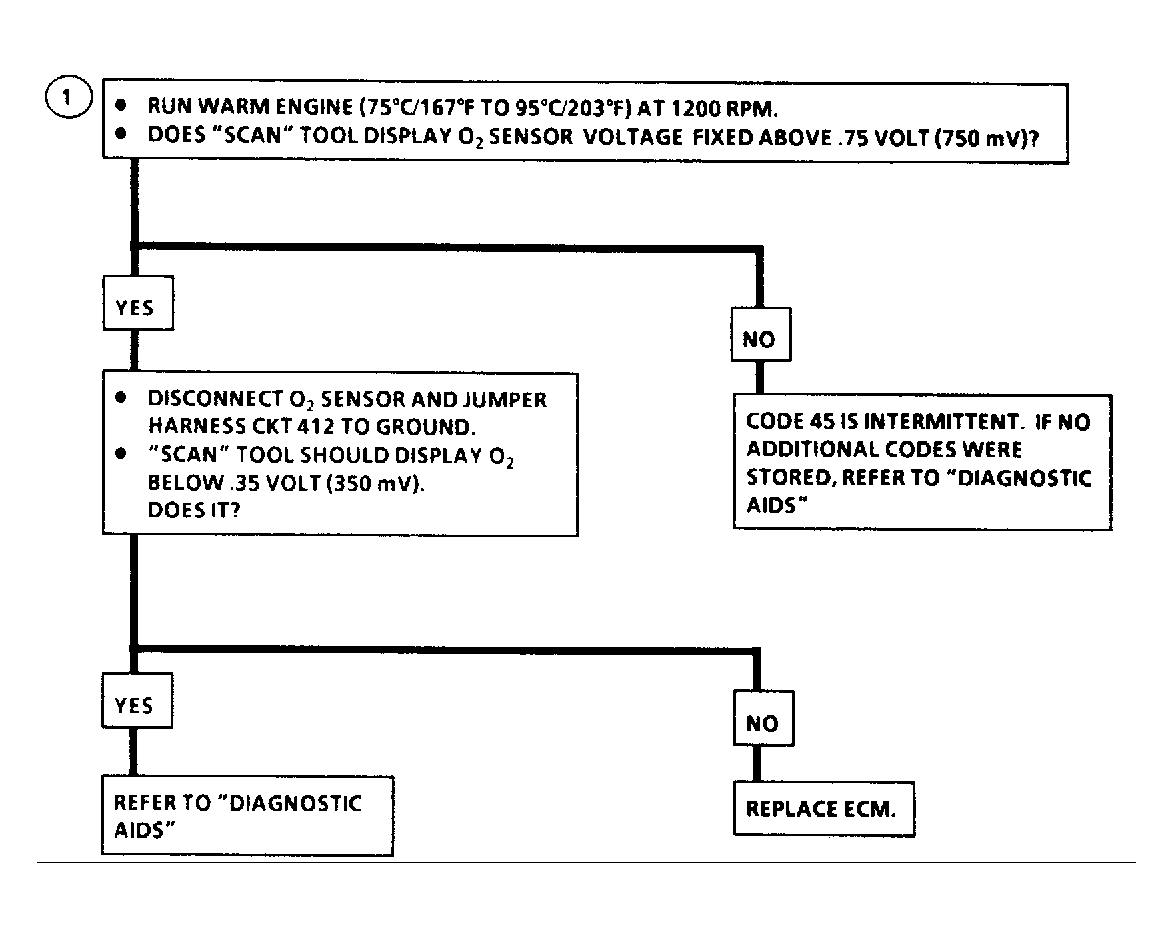

Fig 2: Code 45 Flow Chart, Rich Exhaust Indication
G110348
