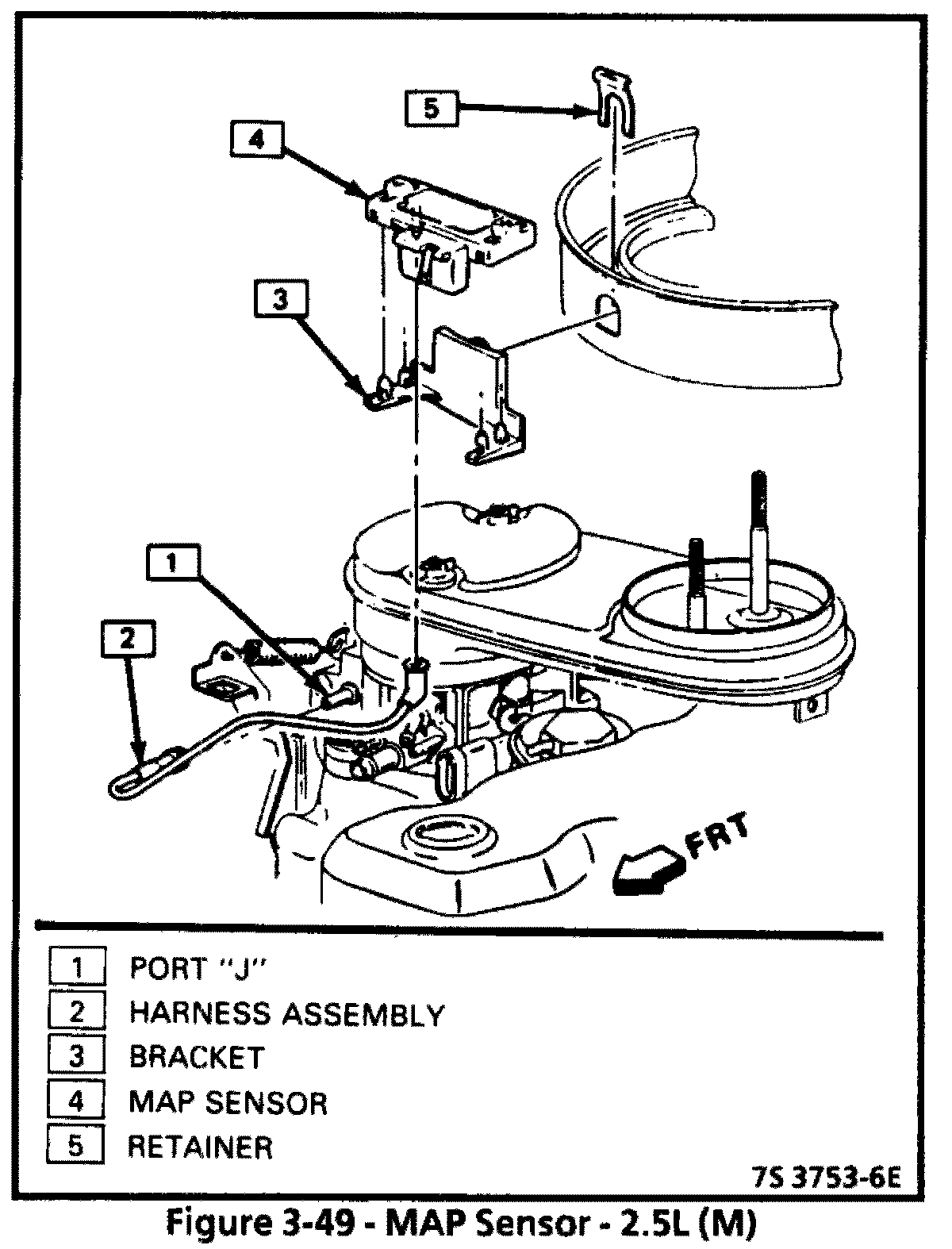

Manifold Pressure/Vacuum Sensor: Service and Repair

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Vacuum harness assembly.
3. MAP sensor electrical connector.
4. Bolts or release tabs and remove sensor.

INSTALL OR CONNECT
1. Bolts or snap sensor on bracket.
2. Electrical connector.
3. Vacuum harness.
4. Negative battery cable.
