Exhaust Gas Recirculation: Testing and Inspection

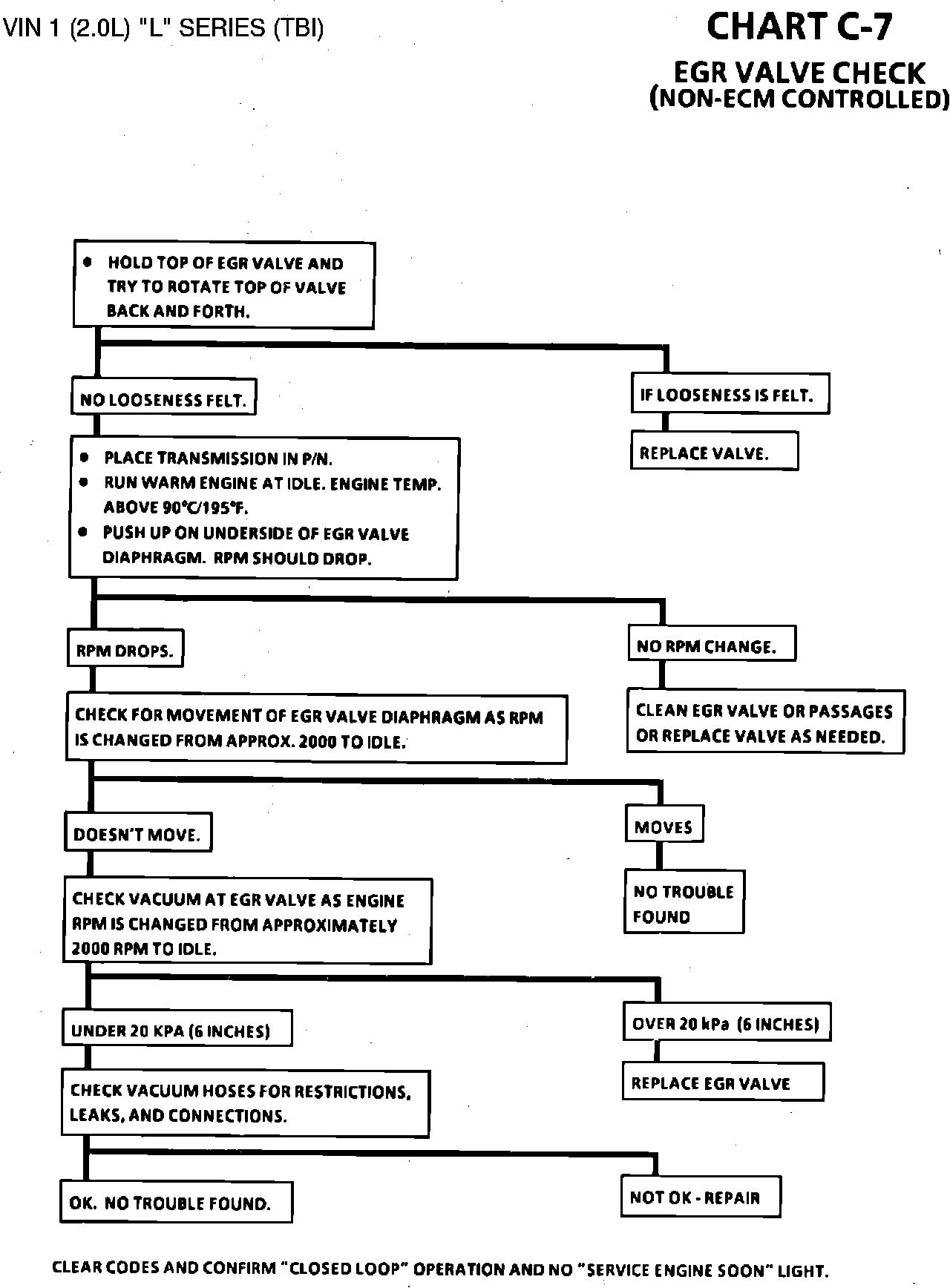

Fig. 079 Chart C-7 EGR Valve Check Non-ECM Controlled:
