Electronic/Powertrain Control Module (ECM/PCM)

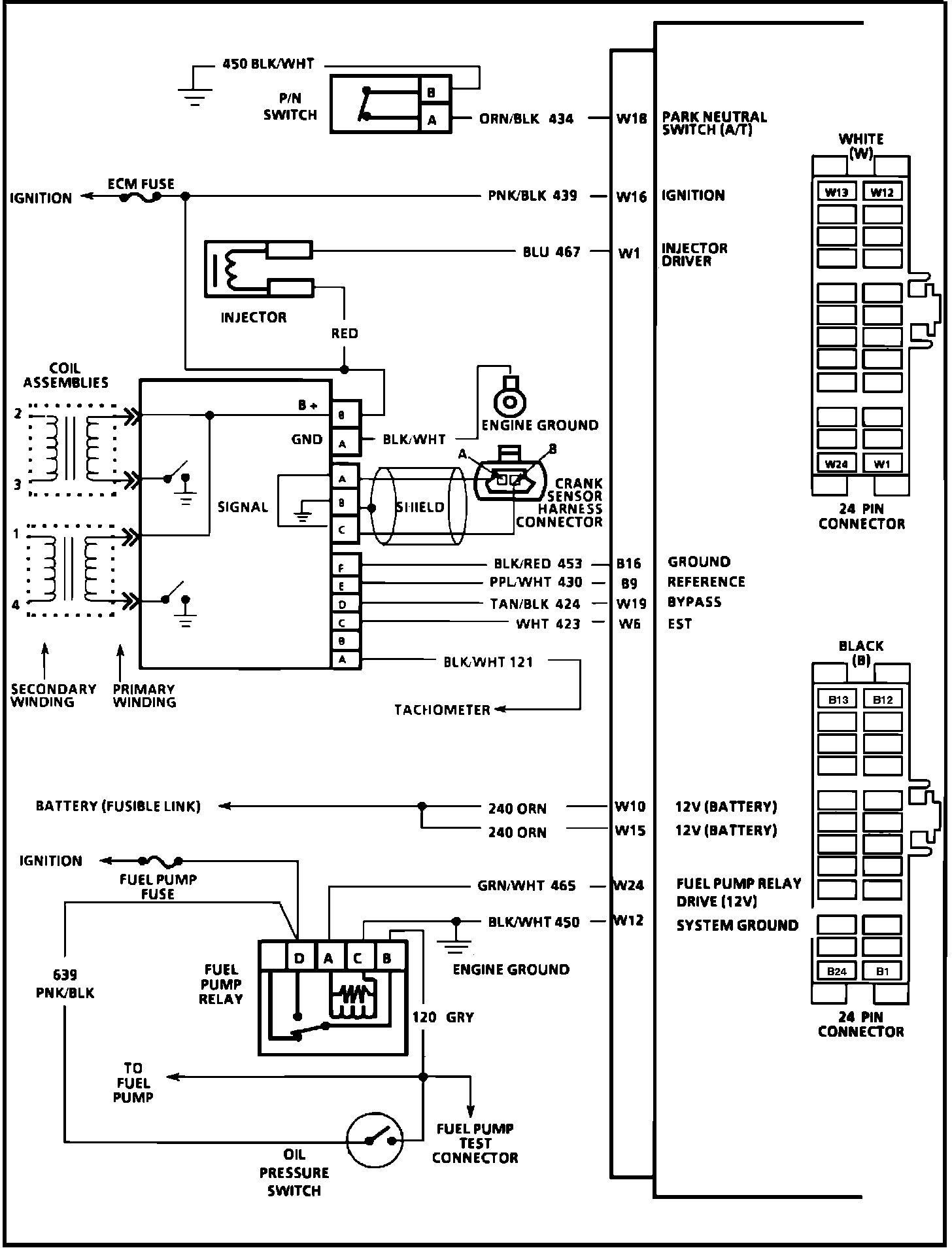

Fig. 068 ECM Wiring Diagrams (1 of 3):

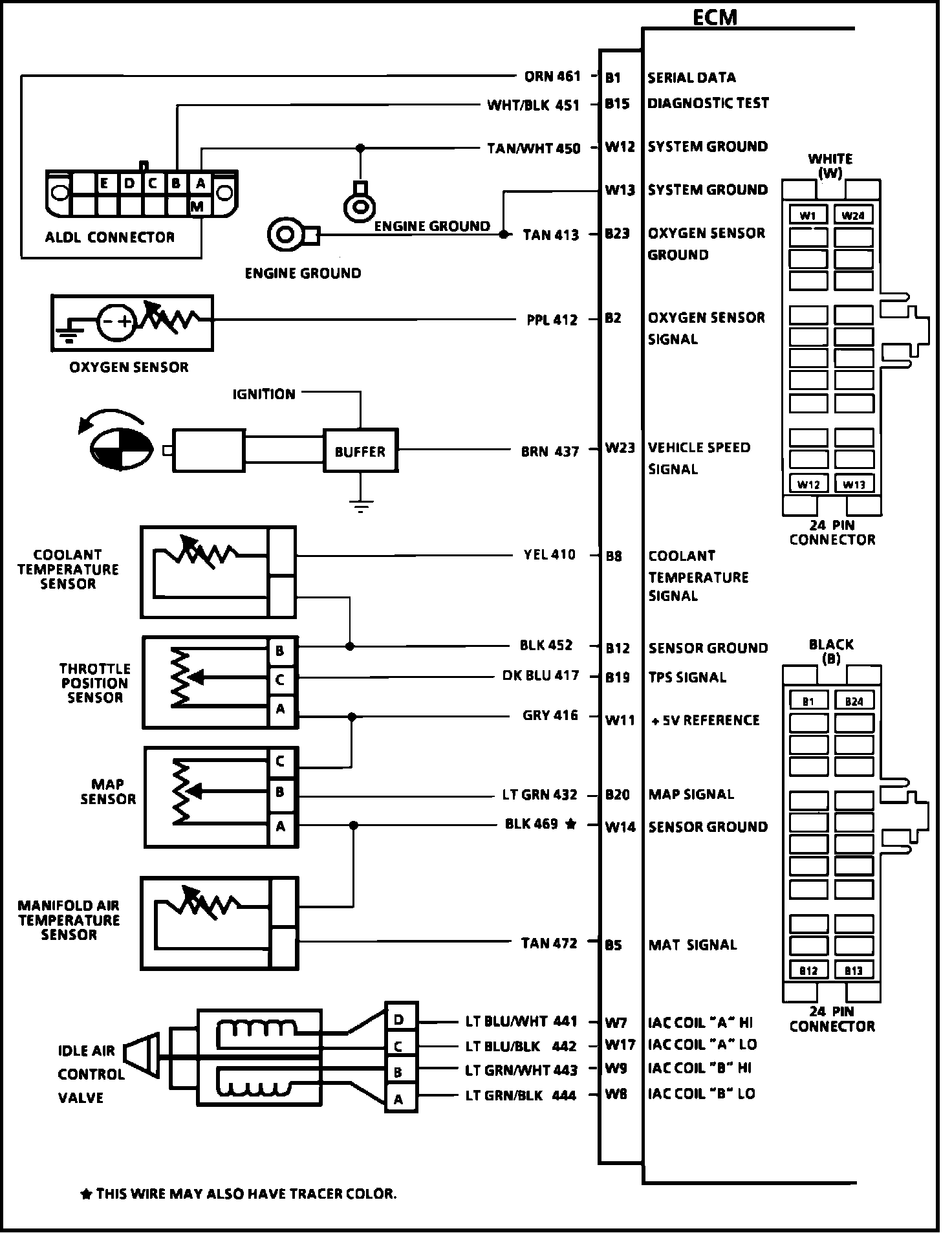

Fig. 069 ECM Wiring Diagrams (2 of 3):

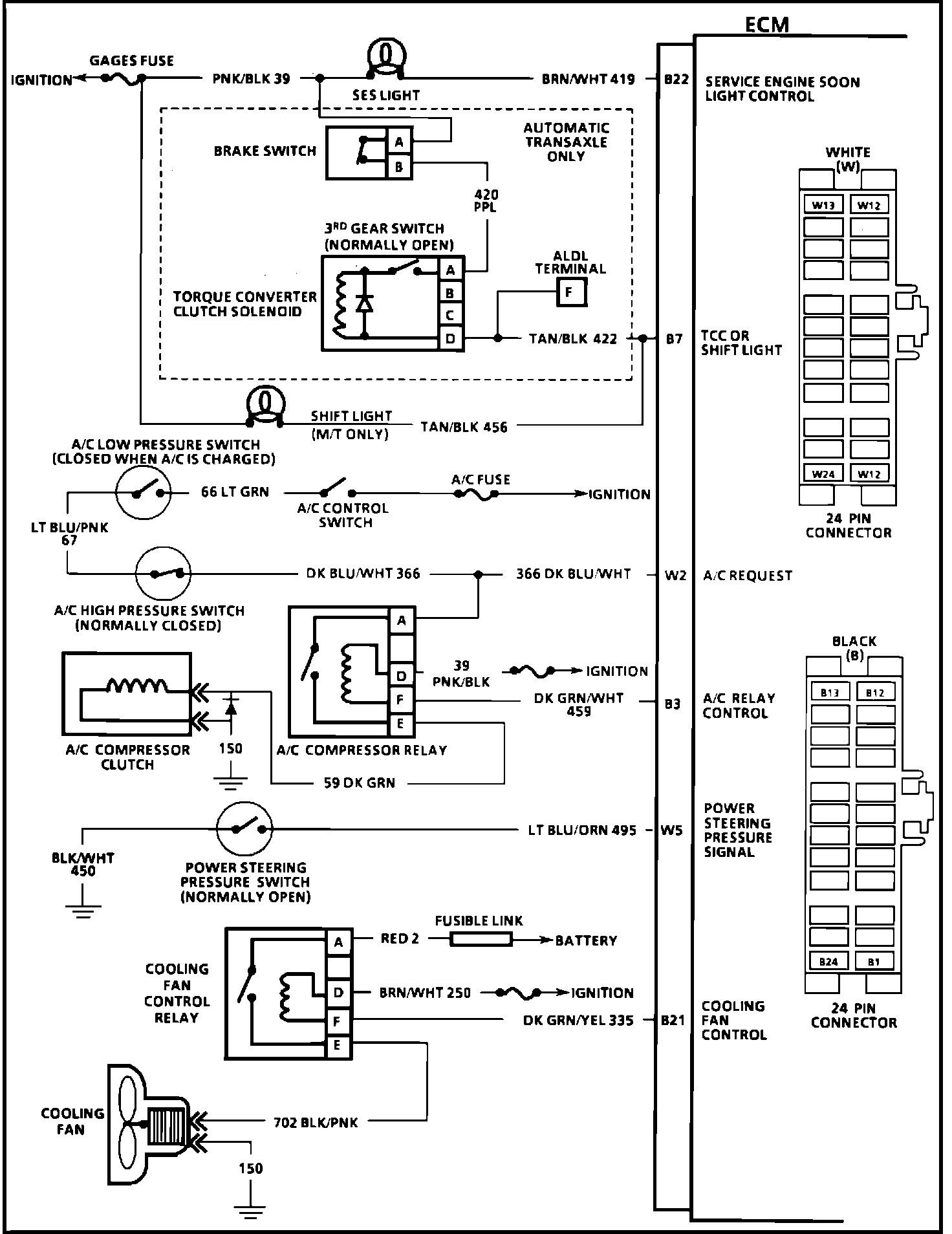

Fig. 070 ECM Wiring Diagrams (3 of 3):
