Power Steering Pressure Switch: Locations

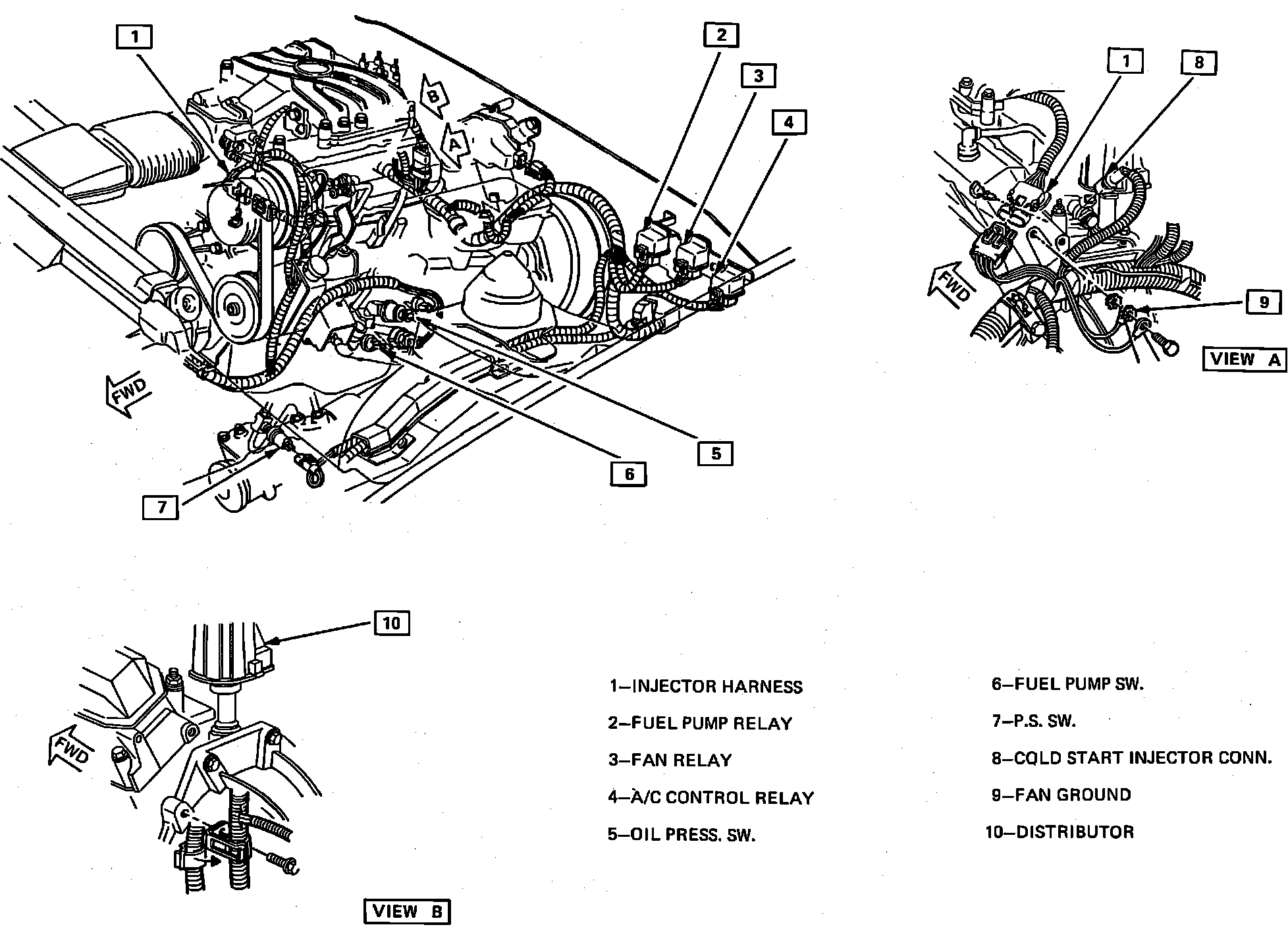

LH Side Of Engine Compartment.:




LH Side Engine Components.:




Lower LH Front Of Engine Compartment, On Steering Unit

Applicable to: V6-173/2.8L Engine
