Float Drop

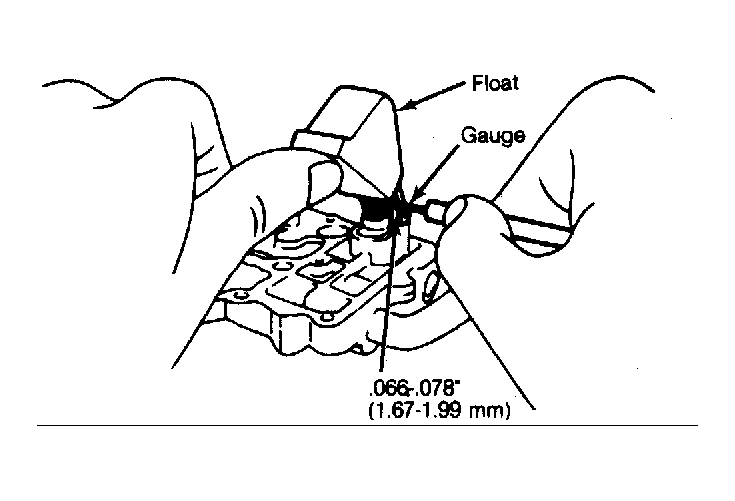

- Invert air horn, gently lift up float and measure clearance between needle valve and float arm. See Fig 1
. Clearance should be .066-.078" (1.67-1.99 mm).

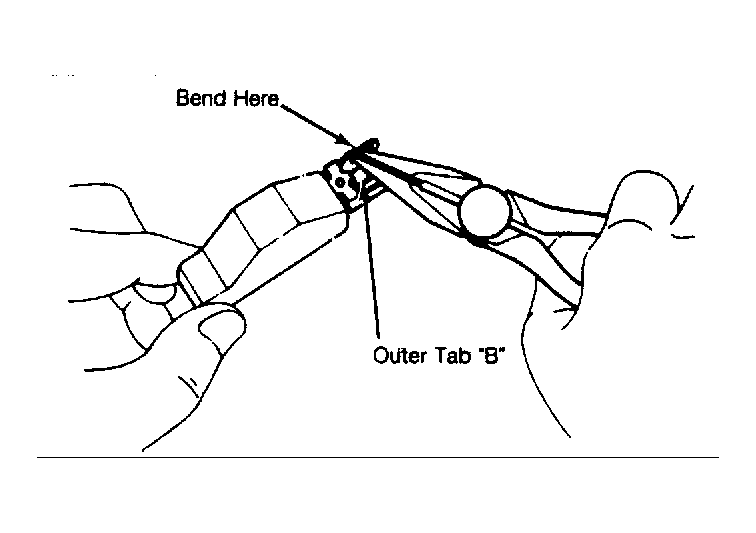

- Adjust clearance by bending outer float tab "B". See Fig 2
. Install needle valve clip after completing float adjustments.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
