Component Locations

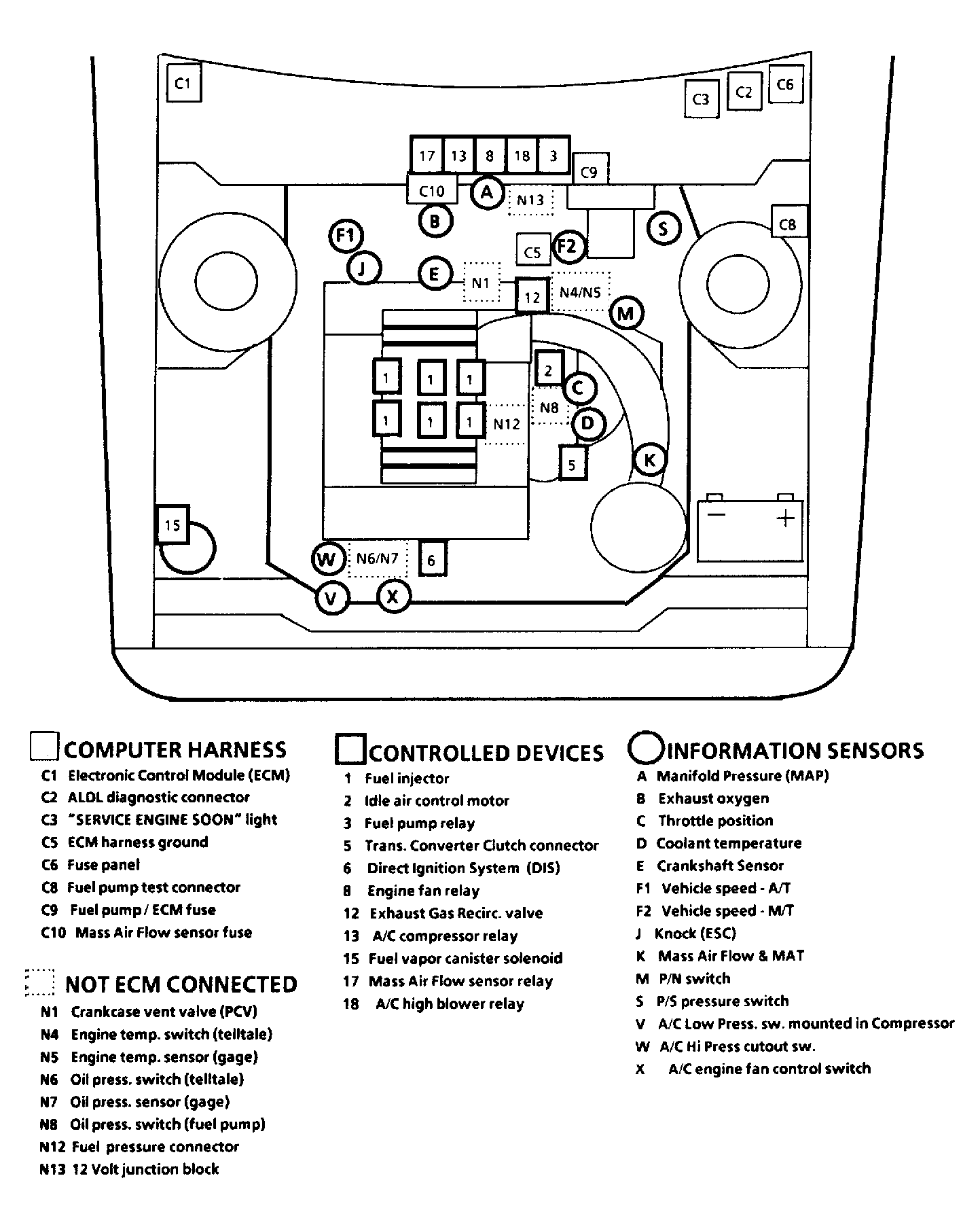

Fig 1: Component Locations (Early Production)

G56763

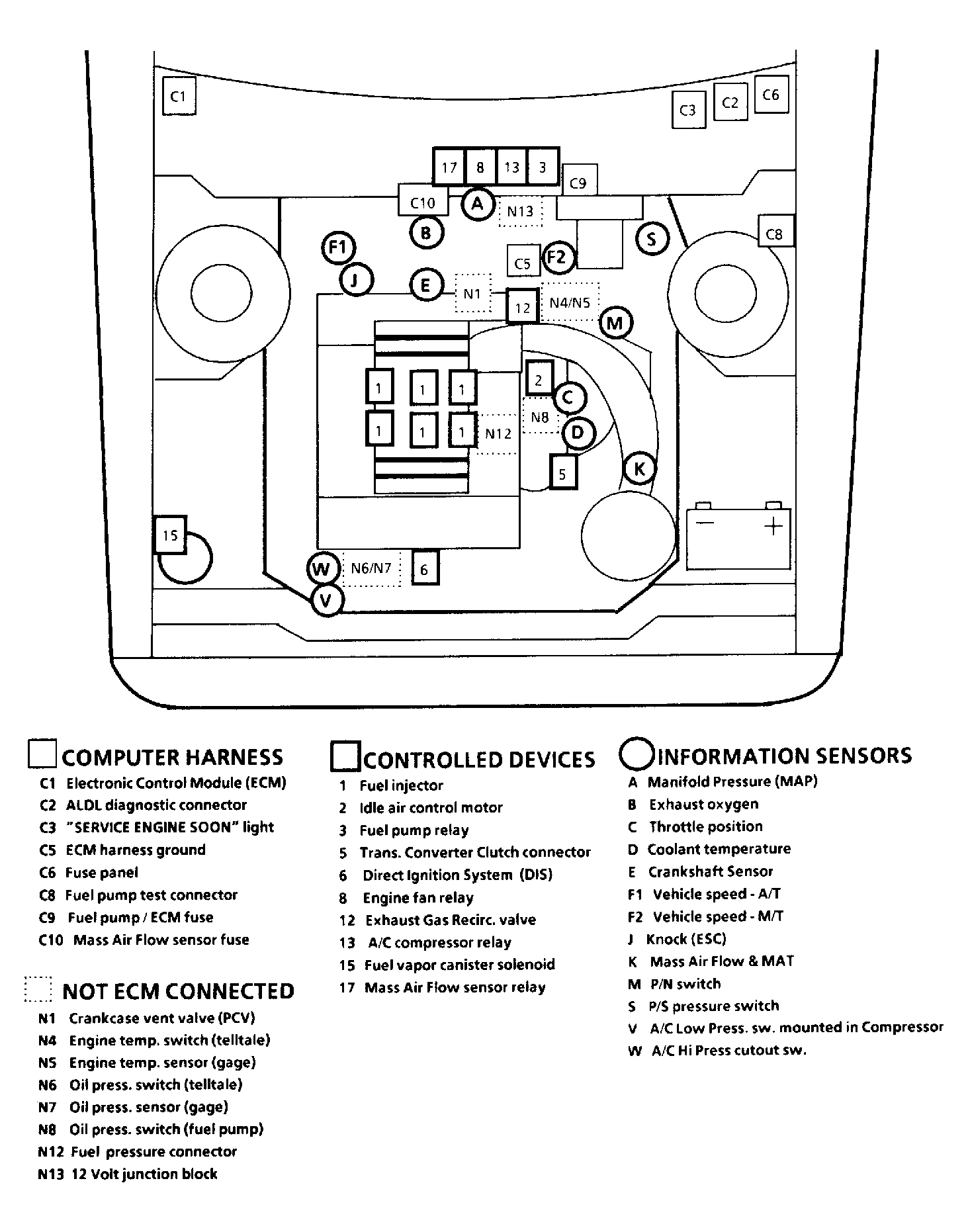

Fig 2: Component Locations (Late Production)

G56764
